Honda Insight Drive Belt Guide for 2000-2007 Models
Keep your first-gen Insight running smoothly by understanding its unique dual-belt system.
- The 2000-2007 Insight uses two separate accessory belts, not a single serpentine belt.
- A squealing noise is the most common symptom of a worn belt and should not be ignored.
- The tensioner is manual, not spring-loaded, which is a key detail for DIY replacement.
- While replacing the belts, always inspect the tensioner pulley for wear.
Understanding Your Insight's Drive Belts
The first-generation Honda Insight (model years 2000-2007) has a unique engine setup that includes two separate drive belts, not one single serpentine belt like many other cars. One belt is for the air conditioning (A/C) compressor, and the other drives the water pump. Because the water pump is critical for engine cooling, this guide focuses primarily on the water pump belt, but it's wise to inspect and replace both belts at the same time.
Critical System Warning
A failing water pump belt can lead to rapid engine overheating, which can cause severe and expensive engine damage. Do not ignore symptoms of a worn belt.
Symptoms of a Failing Drive Belt
A worn or failing drive belt will usually give you some warning signs. Pay attention to these symptoms to avoid a breakdown.
- Squealing Noises: The most common symptom is a high-pitched squeal, especially on cold starts 🎬 Watch this guide on diagnosing and fixing belt squealing noises. or when the A/C is running. This noise is often caused by a loose or worn belt slipping on the pulleys.
- Visible Wear: Inspect your belts. If you see cracks, fraying, missing ribs, or a glazed, shiny appearance, the belt is due for replacement.
- Engine Overheating: If the water pump belt breaks, the water pump will stop circulating coolant. This will cause the engine temperature to rise quickly, leading to overheating.
- A/C Not Working: If the A/C belt fails, your air conditioning will stop blowing cold air.
Choosing the Right Aftermarket Belt
For the 2000-2007 Insight, the original equipment (OEM) belts were often made by Bando or Mitsuboshi. Aftermarket brands like Continental, Dayco, and Gates are reputable alternatives that often meet or exceed OEM quality.
- Good (Tier 3): Standard replacement belts from known brands offer reliable performance. They are made from EPDM rubber, which resists heat and cracking.

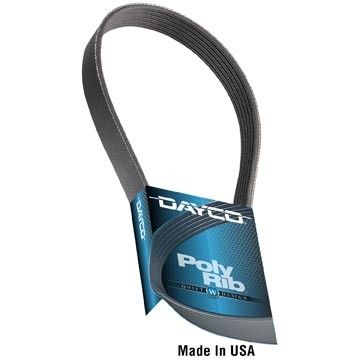

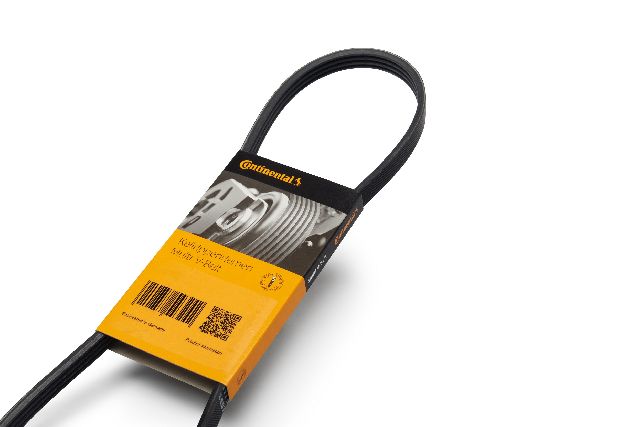

- Better (Tier 2): Brands like Dayco and Continental offer belts engineered to reduce noise on drives that may have some wear or slight misalignment.

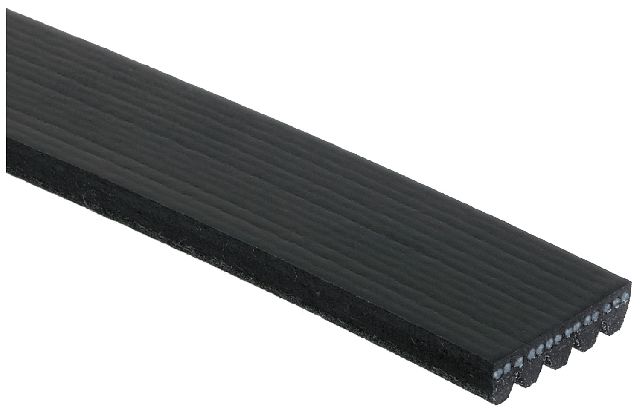

- Best (Tier 1): Premium belts from brands like Gates are often considered top-tier by mechanics. They provide excellent durability and are a trusted choice for critical components.
Pro Tip: While replacing the belts, it's a good time to inspect the belt tensioner pulley. The bearing in this pulley can wear out, causing noise or failure. The bearing can often be replaced separately from the entire pulley assembly for a cost-effective repair.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Belt | $16.23 - $40.66 |
| New OEM Belt (Honda) | $48 - $74 |
| Shop Labor Cost | $50 - $74 |
| Total Professional Replacement | $121 - $145 |
Frequently Asked Questions (FAQ)
Is this a serpentine belt or a V-belt?
The belts on the 2000-2007 Insight are technically multi-rib belts, also known as V-ribbed belts. The term "serpentine belt" usually refers to a single, long belt that winds its way around all the engine accessories. Since the Insight uses two separate belts, calling them "drive belts" or "accessory belts" is more accurate.
Can I replace the drive belts myself?
Yes, this is a feasible DIY job for someone with moderate mechanical skill. Unlike many modern cars, the Insight uses a manual adjusting bolt for tension, not a spring-loaded tensioner. You will need to access the belts from underneath the vehicle, which requires removing a plastic shield. The difficulty is rated as easy to moderate.

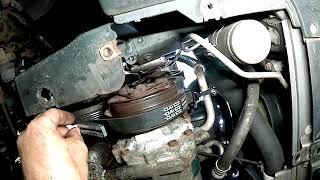

🎬 See a step-by-step video on replacing your Insight's drive belts.Are there any recalls for the drive belts on this Insight?
There are no specific recalls or Technical Service Bulletins (TSBs) from Honda or the NHTSA related to the drive belts for the 2000-2007 Honda Insight. Recalls for this vehicle have focused on other issues like airbags.
Should I replace the tensioner pulley at the same time?
It is highly recommended. While the belt is off, spin the tensioner pulley by hand. If you hear any grinding noises or feel roughness or wobble, the bearing is failing and the pulley should be replaced. Replacing it along with the belt is preventative maintenance that can save you from another repair down the road.
Helpful Videos
Technical Specifications
OEM Part Numbers: 38920-PHM-003 19230-PHM-506
This vehicle uses two multi-rib accessory drive belts. One for the A/C compressor (OEM P/N: 38920-PHM-003) and one for the water pump (OEM P/N: 19230-PHM-506). The tensioning system is a manually adjusted pulley.
