A Guide to the 2000-2007 Jeep Wrangler (TJ) Serpentine Belt Drive Component Kit
Understand the signs of a failing serpentine belt system and why a complete kit is the best fix for your TJ.
- Always replace the belt, tensioner, and idler pulleys together as a complete kit to ensure reliability.
- Squealing is the number one sign of a problem; investigate it immediately to prevent a breakdown.
- On 4.0L models, the tensioner bolt is known to seize in the alternator bracket, so be prepared for a difficult removal.
- High-quality aftermarket kits from brands like Gates offer OEM-level performance for less money.
Is Your Wrangler's Serpentine Belt System Failing?
A failing serpentine belt or its components will give you clear warning signs. Because this system powers critical parts of your engine, ignoring these symptoms can lead to a breakdown and potentially expensive engine damage. Listen and look for these common signs of trouble.
Symptoms of a Bad Serpentine Belt, Tensioner, or Pulley:
- Squealing or Chirping Noises: This is the most common symptom of a problem. The noise, often worse when you first start the engine or on humid days, is caused by the belt slipping on the pulleys. This can be due to a worn-out belt or a weak tensioner that isn't providing enough pressure.
- Grinding or Humming Sounds: If you hear a grinding or humming noise, it often points to a failing bearing inside the tensioner or idler pulley. This requires immediate attention, as a seized pulley can shred the belt.
- Visible Wear and Tear: A visual inspection can tell you a lot. Look for cracks, fraying, glazing (a shiny surface), or missing ribs on the belt. Also, watch the tensioner with the engine running; if it's wobbling or vibrating excessively, it's time for a replacement.
- Accessory Malfunctions: Since the belt powers multiple components, you might notice other issues. Your battery light may come on (bad alternator connection), power steering may feel heavy, or the engine temperature may rise quickly (water pump failure).
A Known Issue on 4.0L Models
On the popular 4.0L inline-6 engine, the steel bolt for the tensioner assembly is known to seize inside the aluminum alternator bracket due to corrosion. This can make removal very difficult. If you're tackling this job yourself, be prepared with penetrating oil and potentially heat. Applying anti-seize lubricant to the new bolt during installation is a crucial pro-tip to prevent this from happening again.
Choosing the Right Aftermarket Kit: OEM vs. Aftermarket
When it's time for a replacement, you can choose between OEM (Mopar) parts or aftermarket kits. While Mopar parts offer a guaranteed fit, high-quality aftermarket brands like Gates provide excellent performance and are often more affordable. For a vehicle like the 2000-2007 Wrangler, a complete aftermarket kit is the smartest choice. These kits, like those from Gates, include the belt, tensioner, and idler pulley(s) all in one box. This ensures all wear components are replaced at once, which is the recommended practice to prevent future failures and extend the life of the new belt. Buying a kit is usually more cost-effective than purchasing each part individually.
Pro Tip: Replace Everything at Once
Never just replace the belt without also replacing the tensioner and idler pulleys. A worn tensioner can cause a new belt to fail prematurely. Since the labor is the same, a complete component kit saves you time and money in the long run and prevents you from having to do the job twice.
Cost of Replacing a Serpentine Belt Drive Kit
The cost can vary based on whether you do the work yourself or take it to a shop. The job is considered DIY-friendly for those with basic mechanical skills.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Kit (e.g., Gates) | $112 - $181 |
| New OEM (Mopar) Parts (Individual) | $250 - $350+ |
| Shop Labor | $84 - $124 |
| Total Professional Installation | $196 - $305 |
Frequently Asked Questions (FAQ)
How do I know which serpentine belt system my TJ has?
The 2000-2006 models with the 4.0L and 2003-2006 models with the 2.4L engine use an automatic, spring-loaded tensioner. This is the most common setup for this year range and is easy to work with, typically only requiring a breaker bar to release tension. Earlier models, particularly with the 2.5L engine, may have a manual tensioner system.
Were there any recalls for the serpentine belt on the 2000-2007 Wrangler?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically related to the serpentine belt, tensioner, or pulleys for the 2000-2007 Jeep Wrangler TJ.
Can I just replace the pulley on the tensioner?
While it is sometimes possible to replace only the pulley, it is not recommended. The spring mechanism inside the tensioner assembly also wears out over time, leading to incorrect belt tension. Replacing the entire assembly is the correct way to ensure the system functions properly.
What tools are needed to replace the kit on a 4.0L engine?
For most 2000-2006 4.0L models, you will need a 1/2-inch breaker bar or serpentine belt tool to release the tensioner, and a socket set to unbolt the tensioner and idler pulley. Due to the potential for a seized tensioner bolt, having penetrating oil and possibly a torch is also a good idea.
Technical Specifications
OEM Part Numbers: 53013209AC

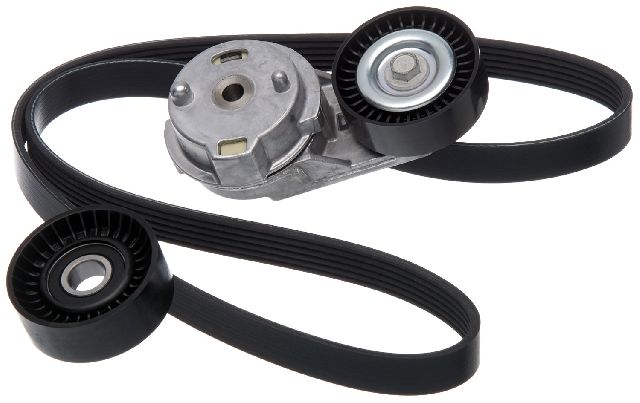

Kit typically includes one serpentine belt, one tensioner assembly, and one or more idler pulleys. The 2000-2006 4.0L models use an automatic tensioner system. Belt length and pulley configuration vary based on engine size (2.4L, 2.5L, or 4.0L) and whether the vehicle has air conditioning.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
