Subaru Impreza Fuel Pump Relay Guide for 2000-2007 Models
If your Impreza cranks but won't start, a simple, inexpensive relay could be the culprit.
- A 'crank, no start' issue is the most common sign of a bad fuel pump relay in a 2000-2007 Impreza.
- Always check and replace this inexpensive relay before assuming you have a bad fuel pump, which is a much more expensive repair.
- This is a very easy DIY replacement, typically located under the dash on the passenger side, and requires no special tools.
- For a simple part like a relay, a new aftermarket unit offers excellent value and is a reliable choice for this repair.
Understanding the Relay in Your Impreza
Your Subaru Impreza has many small, box-shaped relays that control different electronic parts, like the horn, headlights, and A/C. One of the most critical is the fuel pump relay. When this small part fails, it can stop your car from starting, leaving you stranded. Luckily, it's one of the easier and cheaper parts to fix on your own.
Symptoms of a Failing Fuel Pump Relay
A bad fuel pump relay can mimic other, more expensive problems like a failed fuel pump. Always check the relay first. Watch for these signs:
🎬 Watch: Fuel pump diagnostics and fixes for an Impreza that won't start.- Engine Cranks But Won't Start: This is the most common symptom. The engine turns over, but it never catches and runs because it isn't receiving fuel.
- Sudden Engine Stalling: The car might be running fine and then suddenly shut off. This can happen if the relay overheats or fails, cutting power to the fuel pump.
- No Sound from the Fuel Pump: When you turn the key to the 'ON' position (without starting), you should hear a faint 2-second buzz or hum from the rear of the car. This is the fuel pump priming. If you hear silence, the pump may not be getting power.
- Intermittent Starting Problems: The relay might work sometimes and fail at other times, especially when hot. Your car may fail to start, then work perfectly an hour later.
Known Issues, Recalls, or TSBs
There are no major recalls specifically for fuel pump relays on the 2000-2007 Subaru Impreza. Most recalls for this generation concern the Takata airbags. However, Subaru has issued Technical Service Bulletins (TSBs) for newer models where relays can fail in very cold weather, causing a no-start condition after a short drive. 🎬 See how to fix clicking relays and no-start issues on WRX models. While not specific to the 2000-2007 models, it highlights that relays can be sensitive to temperature extremes.
Choosing Your Aftermarket Replacement Part
When shopping for a new relay, you have two main choices: OEM from a Subaru dealer or a new aftermarket part.
OEM (Original Equipment Manufacturer): This is the exact same part your vehicle was built with. It guarantees a perfect fit and function but comes at a higher price. For a critical component, some owners prefer the peace of mind an OEM part provides.
New Aftermarket (Replacement Brand): For a simple electronic switch like a relay, a new aftermarket part is often a smart and budget-friendly choice. These parts are designed to meet or exceed original specifications and can provide reliable performance for a fraction of the cost. Given the low price and simple function, an aftermarket relay is a very practical repair for most owners.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $30 - $55 |
| New Aftermarket | $18 - $25 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the fuel pump relay located on a 2000-2007 Impreza?
For 2002-2007 models, the fuel pump relay is typically found under the dashboard on the passenger side. For 2000-2001 models, it may be located under the driver's side dash. It is often a green connector plugged into a relay module.

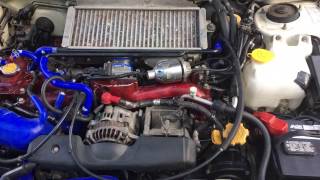

🎬 Watch this video to troubleshoot fuel pump, relay, and ground issues.Can I replace the fuel pump relay myself?
Yes, this is a great DIY job for beginners. It requires no special tools. You simply locate the old relay, unplug it, and plug the new one in. It is much easier and cheaper than replacing the entire fuel pump.
What is the difference between the main relay and the fuel pump relay?
Both can cause a no-start condition. The main relay powers up the engine control unit (ECU) and other key engine electronics. The fuel pump relay specifically powers the fuel pump. They are often located near each other, so be sure to identify the correct one, which usually has a green plug base.
Should I replace the fuel pump if the relay is bad?
No, not necessarily. The relay is a common failure point and is much cheaper and easier to replace. Always diagnose and replace the relay first. If a new relay does not solve the problem, then you can move on to testing the fuel pump itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25232AA100 82501GA240 25232AA020
