A/C System O-Ring and Gasket Kit Guide for the 2000-2008 Chevrolet Impala
Losing cold air in your Impala? The problem might be a simple, inexpensive seal.
- A loss of cold air in your Impala is most often caused by a refrigerant leak, and old O-rings are a common source.
- When replacing any A/C component, it is critical to also replace the corresponding O-rings or gaskets to prevent future leaks.
- While the kits are very inexpensive, proper replacement requires specialized tools to evacuate and recharge the A/C system, making it a job for a professional or a well-equipped DIYer.
- For best results, lubricate new O-rings with clean PAG oil before installation to ensure a proper seal.
Is Your Impala's A/C Blowing Warm?
If the air conditioning in your 2000-2008 Impala isn't blowing cold anymore, the most common cause is a refrigerant leak. While the leak could be from a major component, it often starts with a failed O-ring at one of the system's many connection points. These seals are inexpensive, but a failure can disable your entire A/C system.
Symptoms of a Failing A/C O-Ring
The signs of a bad O-ring are the same as any other refrigerant leak:
- Warm Air from Vents: The most obvious symptom. As refrigerant leaks out, the system can no longer cool the air effectively.
- A/C Compressor Won't Turn On: Your Impala's A/C system has pressure sensors. If the refrigerant level is too low, the sensor will prevent the compressor clutch from engaging to protect it from damage.
- Oily Residue at A/C Connections: Refrigerant contains a special oil to lubricate the compressor. When a leak occurs at a connection, this oil can escape and attract dirt, leaving a greasy spot on the A/C lines or components.
No Specific Recalls or TSBs
Searches for National Highway Traffic Safety Administration (NHTSA) recalls and Technical Service Bulletins (TSBs) did not find any specific issues related to A/C O-rings or gaskets for the 2000-2008 Impala. Leaks are typically due to normal wear and age rather than a manufacturing defect.

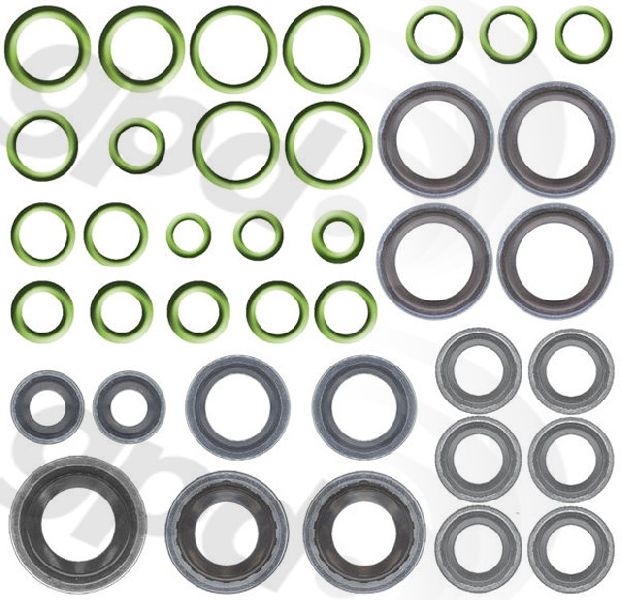

Choosing the Right Aftermarket O-Ring Kit
For a part like an O-ring kit, brand choice is about ensuring correct fit and material quality. The 2000-2008 Impala uses R-134a refrigerant, so you need O-rings made from a compatible material, typically HNBR, which is usually green. All listed aftermarket kits should be made of the correct material.
- Good Tier (ACDelco): As the original equipment (OE) manufacturer for GM, ACDelco kits offer a guaranteed perfect fit. While they might cost a few dollars more, they eliminate any guesswork about seal thickness or diameter, which some mechanics have noted can be an issue with aftermarket kits.
- Standard Tier (Four Seasons, Global Parts): Four Seasons is a well-known aftermarket A/C brand that is generally considered reliable. Global Parts is another established option. For simple seals, these brands offer a cost-effective solution that works well for most repairs. A complete kit from these brands ensures you have all the necessary seals on hand for a job.
Pro Tip: When replacing any A/C component like a compressor or condenser, always use new O-rings for the connections. Reusing old seals is a common cause of repeat failures. Also, be sure to lubricate new O-rings with the correct type of A/C oil (PAG oil for your Impala) before installation to ensure a good seal and prevent tearing.
| Brand Tier | Price Range |
|---|---|
| Aftermarket (Four Seasons, Global Parts, etc.) | $1.14 - $27.27 |
| OEM (ACDelco) | $10.00 - $25.00 |
Frequently Asked Questions
Do I need to replace all the O-rings at once?
Not necessarily. You only need to replace the O-ring at the specific connection you are opening for a repair. However, if you are overhauling the entire system or have multiple leaks, using a complete kit to replace all seals is good practice, as others may be close to failing.
Can I replace an A/C O-ring myself?
While physically swapping the O-ring is simple, the full job requires specialized equipment. The A/C system must be legally and safely evacuated of old refrigerant before opening it, and then put under a vacuum to remove moisture before being recharged. This requires a refrigerant recovery machine, a vacuum pump, and manifold gauges. It is a moderately difficult DIY job if you have the tools; otherwise, it's best left to a professional.
Why are the O-rings green?
The green color typically indicates the O-rings are made from Hydrogenated Nitrile Butadiene Rubber (HNBR). This material is compatible with the R-134a refrigerant and PAG oil used in your Impala's A/C system.
Does the kit include the seals for the service ports?
Most comprehensive kits include valve cores and seals for the high and low-side service ports. These are another common leak point, especially after many years of use.
Technical Specifications
Material: HNBR (Hydrogenated Nitrile Butadiene Rubber), Refrigerant Compatibility: R-134a
