Dodge Magnum Manifold Absolute Pressure (MAP) Sensor Guide for 2005-2008 Models
Fix poor performance and bad gas mileage in your 2005-2008 Dodge Magnum by understanding and replacing a faulty MAP sensor.
- Check for the 2005 model TSB where wiper linkage can damage MAP sensor wiring before buying a new part.
- For reliability, choose a premium aftermarket brand like Delphi or NGK, or the OEM Mopar part.
- Replacing the MAP sensor is a simple, 30-minute DIY job that can save you on labor costs.
- A bad MAP sensor will cause a rich or lean fuel mixture, hurting both performance and fuel economy.
Is Your Magnum Running Rough? It Could Be the MAP Sensor
If your Dodge Magnum is idling poorly, getting bad gas mileage, or hesitating when you step on the gas, a failing Manifold Absolute Pressure (MAP) sensor could be the culprit. This sensor provides critical data to your engine's computer. When it fails, it can cause a variety of noticeable problems, often triggering the Check Engine Light on your dashboard.
🎬 Watch: 8 common symptoms of a failing MAP sensorKnown Issue: Wiper Linkage Wiring Problem
For the 2005 Dodge Magnum, a Technical Service Bulletin (TSB) was issued for an issue where the wiper linkage could rub against and damage the MAP sensor's wiring. Before replacing the sensor, inspect the wires leading to it for any signs of damage, especially near the wiper assembly. A simple wiring repair might solve your problem without needing a new sensor.
Choosing the Right Aftermarket MAP Sensor
When it comes to electronic sensors, quality matters. A cheap, poorly made sensor can fail quickly or provide inaccurate readings, leaving you with the same problems. Here’s a breakdown of available aftermarket brands to help you choose.
Premium Aftermarket Brands: Best Quality
These brands are known for making parts that meet or exceed original equipment (OE) specifications. They are your best bet for a long-lasting, reliable repair, second only to the dealer part.
- Mopar: This is the original factory part for your Dodge. It offers a guaranteed fit and the longest service life, but it is also the most expensive option.

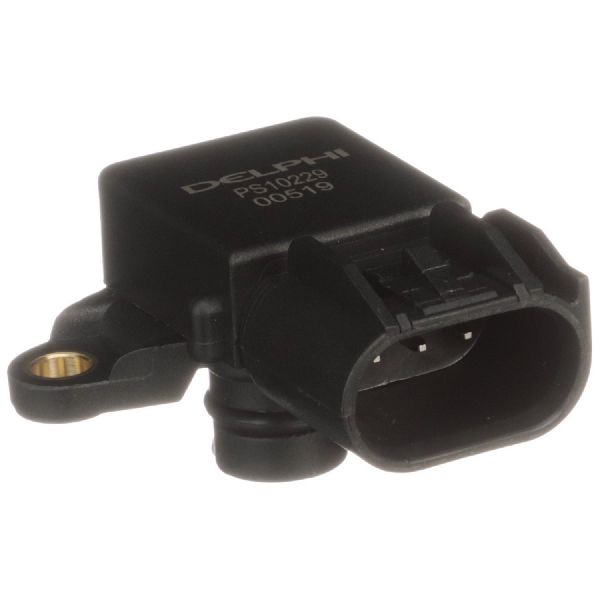

- Delphi: A major manufacturer of original parts for many car companies. Delphi sensors are widely considered a top-tier choice that is very close to OEM quality.
- NGK (NTK): Known for quality ignition parts and sensors, NTK (the sensor division of NGK) is often recommended by mechanics as a reliable alternative to Mopar.
Standard Aftermarket Brands: Good Value
These brands offer a good balance of price and quality. They are a dependable choice for most owners who want a solid repair without the premium price tag.
- Standard Ignition (SMP): A long-standing aftermarket brand that offers decent quality parts. While their quality can sometimes be inconsistent compared to their past reputation, they are generally a safe and reliable choice.
- Walker Products: A well-known aftermarket manufacturer that produces a wide range of engine management parts.
- Spectra: Another established brand offering a variety of automotive parts, including reliable engine sensors.
Economy Brands: Budget-Friendly
These brands are the most affordable but may have a shorter lifespan and less consistent quality. They can be an option if budget is your primary concern.
- Crown Automotive: Forum discussions show mixed reviews for Crown's electronic parts. While some have success, others report parts being out of specification.
- Global Parts / Holstein: These brands typically fall into the value category, offering a low-cost alternative for repairs.
Pro Tip: For a critical sensor like the MAP, spending a little more on a premium or standard brand can save you from having to do the job again in the near future. Inaccurate sensor readings can also lead to poor fuel economy, costing you more in the long run.
Cost to Replace a Dodge Magnum MAP Sensor
The cost depends on the part you choose and whether you do the work yourself. This is a very DIY-friendly repair.
| Part / Service | Estimated Cost |
|---|---|
| New OEM (Mopar) Part | $60 - $115 |
| New Aftermarket Part | $30 - $130 |
| Shop Labor | $60 - $90 |
| Total Professional Replacement | $90 - $225 |
Frequently Asked Questions
Can I just clean my MAP sensor?
No, a MAP sensor cannot be reliably cleaned or repaired. It is a sealed electronic component. If it is faulty, it must be replaced.
Where is the MAP sensor located on my Dodge Magnum?
The MAP sensor is located on the front of the intake manifold. On models with the 5.7L HEMI engine, it is positioned behind the alternator. It is typically held in place by a single bolt or a twist-lock mechanism.
Is replacing the MAP sensor difficult?
No, this is considered a beginner-level repair that most owners can do themselves in under 30 minutes with basic hand tools 🎬 Watch this step-by-step MAP sensor replacement walkthrough like a small socket wrench.
What trouble codes are related to a bad MAP sensor?
Common codes include P0106 (Performance Problem), P0107 (Circuit Low), and P0108 (Circuit High). If you see these codes, the MAP sensor or its wiring is the likely cause.
🎬 See how to test and replace a sensor with these codesHelpful Videos
Technical Specifications
OEM Part Numbers: 56041018AD 5033310AC 5149091AA 68199324AA 56028562AB
The MAP sensor for the Dodge Magnum is typically a 3-pin electronic sensor that mounts directly to the intake manifold with an O-ring seal.
