Ford E-350 Econoline Starter Replacement Guide (2000-2008)
Don't get stranded by a bad starter; learn the symptoms and find the right replacement for your van.
- Common failure symptoms include a single click, slow cranking, or grinding noises.
- Always test the battery first, as its symptoms can be similar to a failing starter.
- New aftermarket starters from brands like Denso or WAI Global offer a good balance of quality and value.
- The starter is located on the passenger side of the engine; replacement is a feasible DIY job for those with basic tools.
Is Your E-350 Starter Failing?
A starter rarely dies without giving some warning signs. If your E-350 won't start, the problem could be a dead battery, a bad alternator, or the starter itself. Pay close attention to these specific symptoms that point to the starter motor as the culprit.
- Single, Loud Click: You turn the key and hear one solid click from the engine bay, but the engine doesn't turn over. This often means the starter solenoid is engaging, but the motor itself isn't spinning.
- Rapid Clicking Noise: A series of fast clicks can point to a weak battery, but it can also happen when a failing starter is drawing too much power.
- No Sound at All: If you turn the key and hear nothing, the starter motor or the solenoid that activates it may have completely failed. This could also be a blown fuse or a bad ignition switch.
- Slow, Labored Cranking: If the engine turns over much slower than usual, it's a sign the starter is weak and struggling to spin the engine.
- Grinding Noise: A grinding sound during or after the engine starts can mean the starter gear isn't disengaging correctly from the engine's flywheel.
Known Issue: Heat Soak
A common problem on these vans, especially with V8 engines, is 🎬 See how to swap a starter on the Ford V10 engine. "heat soak." This happens when the starter gets very hot from the nearby exhaust manifold. When hot, the starter's electrical resistance increases, and it can't draw enough power to crank the engine. You might notice the van starts fine when cold, but after a long drive, it won't crank until it cools down. Upgrading to a high-torque, gear-reduction starter can often solve this issue.
Choosing a New Aftermarket Starter
When replacing the starter on your E-350, you'll find new aftermarket options are widely available and competitively priced. This often makes them a better value than remanufactured units.
- OEM (Motorcraft): The original parts are high quality but come at a premium price. A new Motorcraft starter can be significantly more expensive than aftermarket options.

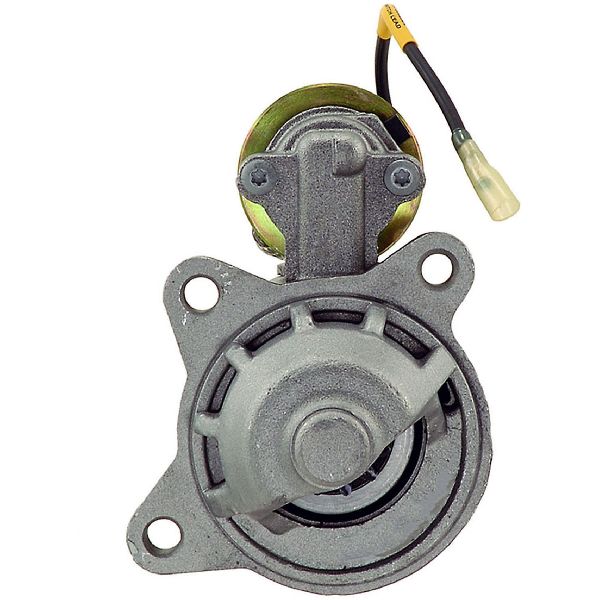

- Premium Aftermarket (e.g., Denso): Denso is a well-respected brand, often an original equipment supplier to many automakers. Their starters are known for reliability and durability, making them an excellent choice that balances quality and price.

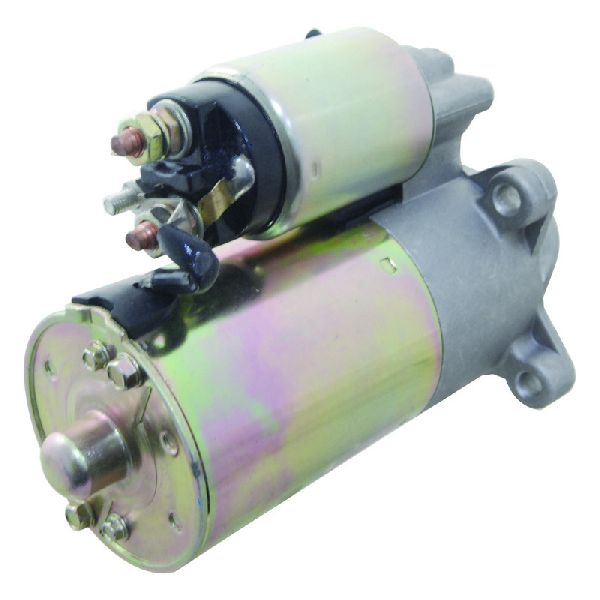

- Standard Aftermarket (e.g., WAI Global): Brands like WAI Global offer a reliable, budget-friendly solution. They produce 100% new starters that meet or exceed original specifications and are a good choice for daily drivers and work vans.
A Note on Appearance
Don't be concerned if your new aftermarket starter looks smaller or lighter than the original part you removed. Many modern aftermarket starters use a more efficient gear-reduction design that provides more torque in a smaller package. They are designed to fit and function perfectly despite the different appearance.
🎬 Follow this helpful walkthrough for your Econoline starter replacement project.| Part Type | Estimated Part Cost |
|---|---|
| New OEM (Motorcraft) | $240 - $340 |
| New Aftermarket (Denso, WAI Global) | $105 - $162 |
| Shop Labor | $122 - $179 |
Frequently Asked Questions (FAQ)
Is a clicking sound always a bad starter?
Not always. A single, loud click usually points to the starter or solenoid. However, rapid, fast clicking is often a sign of a weak or dead battery that doesn't have enough power to turn the starter motor. Always test your battery first before replacing the starter.
Where is the starter located on my 2000-2008 E-350?
The starter is located on the passenger side of the engine, near the oil pan and just behind the front wheel. It is 🎬 Watch this step-by-step guide on replacing a Ford Econoline starter. held in place by three bolts.
Do I need to disconnect the battery to replace the starter?
Yes, absolutely. This is the most important safety step. The starter has a direct, heavy-gauge wire connected to the battery. Failure to disconnect the negative battery terminal before you begin can lead to dangerous electrical shorts, sparks, and potential injury.
Were there any recalls for the starter on these vans?
No specific recalls were found for the starter motor itself on 2000-2008 models during a search of the NHTSA database. There was a recall for some models regarding battery cable routing that could lead to a short, but it was not a defect of the starter itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: F7UZ-11002-AARM
Varies by engine (5.4L V8, 6.8L V10, 7.3L Diesel). Most are 12-volt, clockwise rotation, Permanent Magnet Gear Reduction (PMGR) design. Tooth count can vary (e.g., 10, 12). Power rating typically ranges from 1.4 kW to 3.6 kW depending on the engine application.
