GMC Yukon XL 2500 Ignition Switch Guide for 2000-2008 Models
Don't get stranded by a bad ignition switch; understand the symptoms and find the right replacement part for your truck.
- The most critical symptom is the engine stalling while driving, which is a major safety risk requiring immediate attention.
- There are no major recalls for the ignition switch on the 2000-2008 Yukon XL 2500; recalls you may have heard about were for other GM vehicles or different model years.
- A good diagnostic test is to gently wiggle the key while the engine is running (in park). If the engine sputters or electronics flicker, the ignition switch is likely faulty.
- Don't confuse the ignition switch (the electrical part) with the lock cylinder (the mechanical part the key goes into); they are separate parts with different failure symptoms.
Is It the Ignition Switch or the Lock Cylinder?
Many owners confuse the ignition switch with the ignition lock cylinder. They are two separate parts that work together. The lock cylinder is the mechanical tumbler you put your key in. The ignition switch is the electronic part that actually sends power to the truck's systems. If your key is physically hard to turn or won't go in, the problem is likely the lock cylinder or the key itself. If the truck has electrical problems like stalling or intermittent starting, the ignition switch is a more likely suspect.
Common Symptoms of a Failing Ignition Switch
A bad ignition switch on the GMT800 platform, which your Yukon XL 2500 is built on, has several common warning signs:
🎬 Watch: A breakdown of 8 common ignition switch failure symptoms.- No-Crank, No-Start: You turn the key and nothing happens, or you only hear a single click. The switch isn't sending the signal to engage the starter.
- Stalling While Driving: This is the most dangerous symptom. A faulty switch can lose connection over bumps or during turns, cutting power to the engine, which also results in the loss of power steering and power brakes.
- Starts and Immediately Stalls: The engine fires up but dies as soon as you release the key from the 'Start' to the 'Run' position. This means the switch isn't maintaining power to the ignition system.
- Electrical Gremlins: Your radio, A/C, or dashboard lights may flicker or stop working intermittently. Wiggling the key in the ignition might make these problems appear or disappear, which is a classic sign of a worn switch. 🎬 See how a faulty switch behaves in a GMC truck.
- Key Spins Freely: In some cases, the internal linkage between the lock cylinder and the switch can break, causing the key to spin with no resistance and fail to start the truck.
Recalls and Technical Service Bulletins (TSBs)
While General Motors had major recalls for ignition systems, the most well-known campaigns for stalling and airbag non-deployment primarily affected smaller cars like the Chevy Cobalt. Other GM truck recalls for ignition lock issues were for later model years (2011-2012) and did not cover the 2000-2008 generation. Our search found no specific ignition switch recalls or TSBs for the 2000-2008 GMC Yukon XL 2500.
Choosing an Aftermarket Ignition Switch
When replacing your ignition switch, you have several options. Since the OEM part can be pricey, many owners choose aftermarket brands. Here’s a breakdown of what to expect.
| Brand Tier | Brands | Quality & Cost Assessment |
|---|---|---|
| Premium Aftermarket | Standard Ignition (SMP) | Often considered a top-tier aftermarket choice, with quality that can rival the original part. Forum users often recommend SMP as a reliable alternative to cheaper brands. Expect to pay more, but it's a solid investment for this critical component. |
| Standard Aftermarket | Dorman, Rostra Powertrain | Dorman is one of the most common aftermarket brands. Their quality can be inconsistent; some parts work well for years, while others may fail prematurely. They are a budget-friendly option, but be aware of the mixed reviews. Rostra is a known aftermarket manufacturer, but specific reviews for their ignition switches are less common. |
| Economy Aftermarket | Replacement, True Tech | These brands represent the most budget-friendly tier. They are a viable option if the initial cost is your main concern. However, for a part that can cause stalling, investing in a higher-quality brand is often recommended for long-term reliability and safety. |
A Note on Installation
Replacing the ignition switch is a job most DIYers can handle. The switch is located on the steering column and can be accessed by removing the lower dash and steering column covers. You typically don't need to remove the steering wheel. The switch is held in by clips and has electrical connectors that are simple to unplug and reconnect. Always disconnect the battery before starting 🎬 Watch this video if your truck won't start or crank. any electrical work.
Frequently Asked Questions (FAQ)
Can I still drive with a bad ignition switch?
It is not recommended. While the truck may still start and run, the risk of the engine stalling while driving is a serious safety hazard. Losing engine power also means losing power steering and power brakes, making the vehicle very difficult to control.
How do I know if it's the switch or the battery?
A dead battery usually results in a rapid clicking sound when you try to start the engine, or no power to anything at all. A bad ignition switch might allow accessories to work but still prevent the engine from cranking, or cause stalling while the engine is already running.
Why do my accessories work but the truck won't start?
This is a classic symptom of a faulty ignition switch. The switch has different electrical contacts for 'Accessory,' 'Run,' and 'Start' positions. The contacts for the 'Start' position can fail while the 'Accessory' contacts still work, allowing your radio and lights to turn on but preventing the starter from engaging.
Is this an expensive repair?
The part itself is not very expensive, with aftermarket options available from around $22 to $170. If you do the work yourself, it's a very affordable fix. If you take it to a shop, expect to pay for 1-2 hours of labor in addition to the part cost.
Helpful Videos

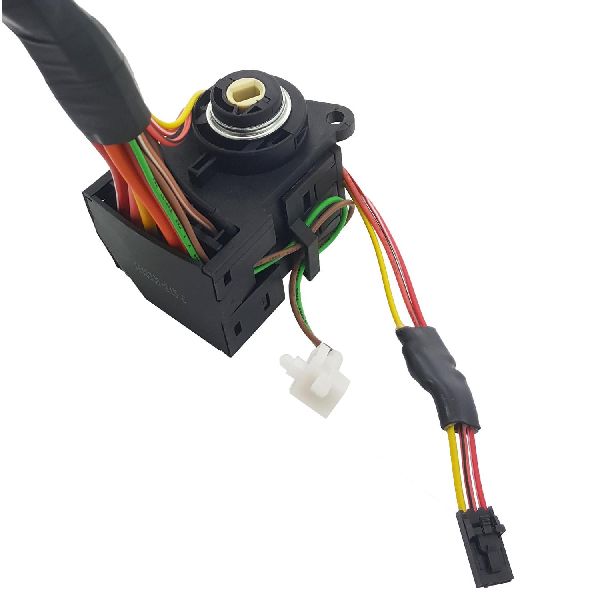

Technical Specifications
OEM Part Numbers: 26061331
The ignition switch for this generation of GMC Yukon XL is an electronic switch mounted on the steering column, separate from the ignition lock cylinder. It features multiple positions (Off, Accessory, Run, Start) that control power distribution to various vehicle systems.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
