Jaguar S-Type Engine Water Pump Guide (2000-2008)
Learn to spot the signs of a failing water pump in your S-Type and choose the right replacement to prevent engine damage.
- A coolant leak from the front-center of the engine is the most common sign of a failing water pump.
- It is strongly recommended to also replace the thermostat and serpentine belt during the repair.
- V6 and V8 engines use different pumps, and the V6 part changed in 2003; verify your specific model.
- Driving with a failed water pump will lead to critical engine overheating and should be avoided.
Symptoms of a Failing Water Pump
A failing water pump on a Jaguar S-Type will almost always give warning signs. Ignoring them can lead to catastrophic engine failure. Be aware of the following symptoms:
- Coolant Leaks: This is the most common sign. You may notice puddles of bright green or orange coolant on the ground under the front, center part of your engine. These leaks often come from a small 'weep hole' on the bottom of the pump, which is designed to leak when the internal seal fails.
- Engine Overheating: If the pump fails, the coolant stops flowing, and the engine temperature will rise. Your temperature gauge may climb into the red, especially when idling in traffic. In severe cases, you might see steam coming from under the hood. If you see steam, pull over immediately and turn off the engine to prevent further damage.
- Whining or Grinding Noises: A high-pitched whining or groaning sound coming from the front of the engine that gets louder as you accelerate can indicate a failing bearing inside the water pump. This means the pulley is no longer spinning smoothly.
- Loose Water Pump Pulley: If the internal bearing is completely worn out, the pulley on the front of the water pump may feel loose or wobble when the engine is off.
Known Issues for the 2000-2008 Jaguar S-Type
The cooling system is a known weak point on the S-Type. 🎬 See a detailed breakdown of common S-Type coolant system failures. While there are no official recalls for the water pump on this model, owners should be aware of a few common issues:
V6 Models: Check the Thermostat Housing
On the 3.0L V6 engine, the plastic thermostat housing is a frequent point of failure and can cause coolant leaks that might be mistaken for a bad water pump. Many owners choose to upgrade to a more durable aluminum housing when replacing cooling system components.
Early V8 Models: Updated Pump Design
The original water pump on early 4.0L V8 models (around 2000-2002) had a plastic component and used both a gasket and an O-ring. Newer OEM and many aftermarket replacements feature an updated all-metal design that uses only a metal gasket and does not require the O-ring. Ensure your new part is installed according to its specific design.
Choosing the Right Aftermarket Water Pump
For a critical component like the water pump, the quality of the replacement part matters. While an OEM Jaguar part is always an option, several reputable aftermarket brands offer a good balance of quality and value. Aftermarket parts are often made by the same companies that supply the original manufacturer.
Tier 1: OEM-Quality Aftermarket

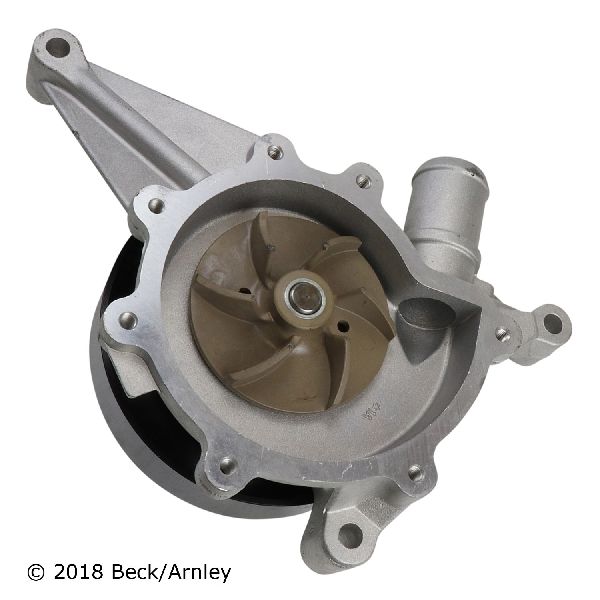

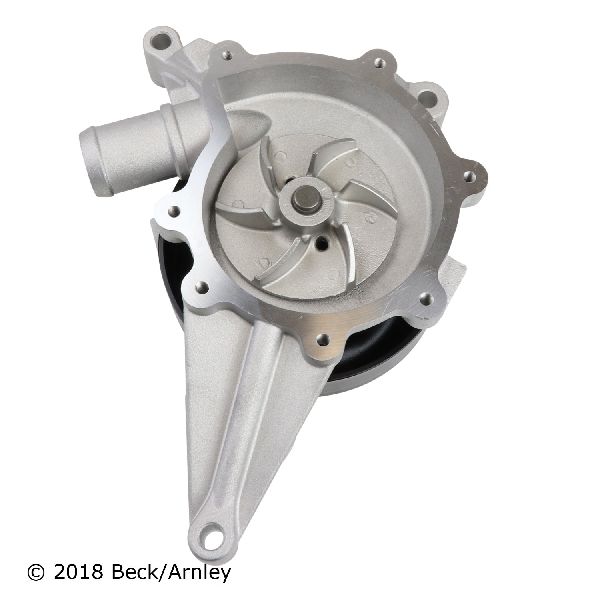

- Beck Arnley: This brand has a strong reputation for sourcing parts directly from OEM suppliers. They focus on matching the original part's form, fit, and function, making them a reliable choice.

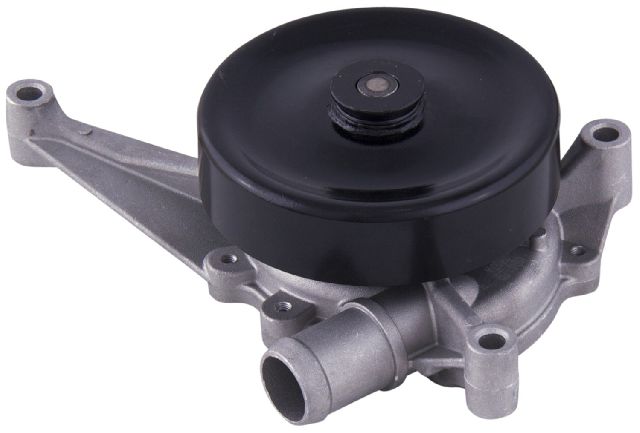

- Gates: While known for belts and hoses, Gates also offers water pumps. They are generally considered a quality option, though some forum users report mixed experiences. They are a popular choice and often included in complete timing belt kits.
- Graf: Graf is a well-regarded European manufacturer that often supplies German car brands. Their quality is typically considered to be on par with OEM parts.
Tier 2: Reputable Aftermarket
- GMB: GMB is a large Japanese manufacturer that produces water pumps for many carmakers and the aftermarket. They are widely seen as a dependable and cost-effective option with good longevity.
Tier 3: Value-Oriented
- US Motor Works: This is a budget-friendly brand. However, some owners have reported premature failures, such as leaks developing shortly after installation. Consider this brand if budget is the primary concern, but be aware of the potential for a shorter lifespan.
| Part/Service | Estimated Cost (USD) |
|---|---|
| New Aftermarket Water Pump | $65 - $127 |
| New OEM Jaguar Water Pump | $500 - $740 |
| Shop Labor | $320 - $475 |
| Total Professional Replacement (Aftermarket Part) | $385 - $602 |
| Total Professional Replacement (OEM Part) | $820 - $1,215 |
Frequently Asked Questions (FAQ)
What else should I replace with the water pump?
Since replacing the water pump requires significant labor, it is highly recommended to replace other wear items in the same area. This includes the thermostat, serpentine belt, and any coolant hoses 🎬 Watch a walkthrough on changing the thermostat for V8 models. that appear brittle, swollen, or soft. This preventative maintenance can save you from having to pay for similar labor costs again in the near future.
Is this a different part for V6 and V8 engines?
Yes. The 3.0L V6 and the 4.0L/4.2L V8 engines use different water pumps. Furthermore, the V6 pump changed for the 2003 model year. Be sure to order the correct part for your specific engine and year.
Do I need a special tool to replace the water pump?
For most DIY mechanics, standard hand tools (sockets, wrenches) are sufficient. However, a belt tensioner tool makes releasing the serpentine belt much easier. Accessing the pump requires removing the air intake assembly. Some aftermarket pumps for the V6 may also require you to transfer a backing plate from the old pump to the new one.
🎬 Watch this V6 water pump and serpentine belt replacement guide.What kind of coolant should I use for my S-Type?
Using the correct coolant is critical for protecting the engine and new water pump from corrosion. The 2000-2008 Jaguar S-Type requires an OAT (Organic Acid Technology) coolant that meets Jaguar specification WSS-M97B44-D. This is typically an extended-life coolant, often orange or yellow in color.
Helpful Videos
Technical Specifications
OEM Part Numbers: AJ811935 C2C32677 C2C38862 XR858919 AJ88912 AJ88417
Drive Type: Serpentine Belt Driven. Gasket/Seals: Included with most aftermarket kits. Impeller Material: Varies by brand (metal or composite). Note: Part numbers differ for V6 (early vs. late) and V8 engines.
