Guide to Engine Valve Stem Seal Replacement for the 2000-2009 BMW X5
Seeing blue smoke from your exhaust? This guide explains the common and costly valve stem seal failure in your X5.
- This is a very common failure on V8-powered X5s (4.4i, 4.8is) due to heat causing the original seals to harden.
- The main symptoms are blue smoke from the exhaust after idling and high oil consumption.
- The repair is extremely labor-intensive; parts are cheap, but labor costs at an independent shop can be $2,500-$5,000+.
- Use high-quality OEM brands like Elring or Victor Reinz for the replacement seals to ensure a lasting repair.
Is Your X5 Smoking? It's Probably the Valve Stem Seals
If you own a 2000-2009 BMW X5, especially a V8 model (4.4i, 4.8is), you will likely face a valve stem seal issue. It's one of the most common and well-known problems for these engines, particularly the N62 V8. The original seals were made of a material that doesn't stand up to the engine's heat over many years. They become hard, crack, and can no longer stop oil from leaking past the valves and into the cylinders to be burned. This isn't just an annoyance; it can lead to more expensive problems down the road.
A Note on 6-Cylinder vs. V8 Engines
While this issue can happen on the 6-cylinder 3.0i models, it is far more common and happens sooner on the V8 engines (N62) found in the 4.4i and 4.8is models. The V8 engines run hotter, which accelerates the aging of the seals.
Choosing the Right Aftermarket Seal Set
The good news is that high-quality aftermarket brands are available, and many are the original equipment manufacturers (OEM) for BMW. You do not need to buy the seals from a BMW dealer. For a job this expensive and labor-intensive, it is critical to use a top-quality part so you only have to do it once.
- Top Tier (OEM Quality): Brands like Elring and Victor Reinz are OEM suppliers to BMW and other German automakers. Many professional mechanics and DIYers trust these brands for their updated seal designs, which are made from better materials (like FPM/Viton) than the original parts. These are the safest bet for a long-lasting repair.

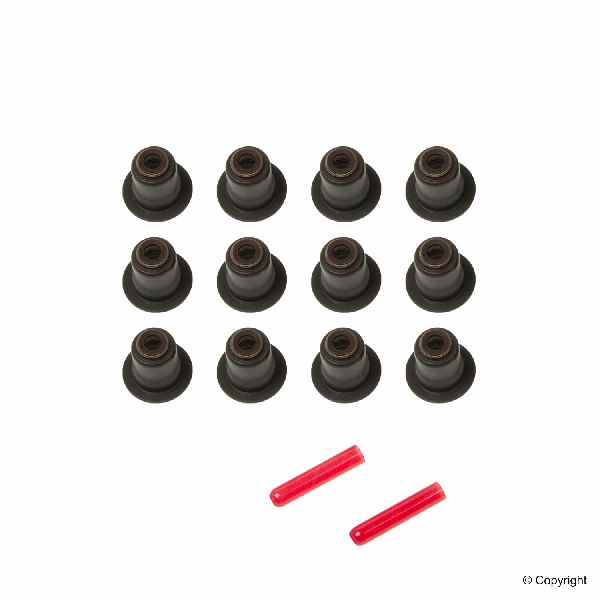

- Strong Alternative: Corteco is another well-regarded OEM supplier. While some forum users debate between Elring and Corteco, both are considered high-quality choices for this repair.
- Standard Aftermarket: Victor Gaskets is a known brand, but for this specific, difficult job on a BMW, sticking with a proven OEM supplier like Elring or Victor Reinz is highly recommended.
Pro Tip: Before you blame the valve stem seals, check the crankcase ventilation (CCV) valves. A faulty CCV system can also cause smoking and high oil consumption and is a much cheaper and easier fix. If replacing the CCV valves doesn't solve the problem, the valve stem seals are the next likely culprit.
🎬 See how to fix smoking issues by servicing your CCV.What to Expect for the Repair
Replacing the valve stem seals is one of the most labor-intensive jobs on the BMW X5. The parts themselves are not expensive, but the labor is. Special tools are required to perform the repair without removing the cylinder heads, which saves thousands of dollars compared to the old method. Even with the special tools, this is not a job for a beginner. Expect a professional shop to take 10-20 hours or more to complete the work.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Seal Set | $25 - $95 |
| Independent Shop Labor | $2,000 - $5,000+ |
| Dealer Labor | $7,000 - $9,000+ |
Frequently Asked Questions (FAQ)
Why is my X5 burning so much oil and smoking?
The most common cause is hardened and failed valve stem seals. Oil leaks past the seals into the combustion chamber and burns, causing blue-tinted smoke from the exhaust, especially after idling at a stoplight or on startup.
🎬 Watch: This definitive test confirms if your seals are failing.Is this a DIY job?
This is not recommended for beginners. It is a very complex and tedious job that requires special BMW-specific tools to compress the valve springs and replace the seals with the engine in the car. Mistakes can lead to dropping a valve into the engine, causing catastrophic damage. For most owners, this job should be left to a professional mechanic experienced with BMWs.
🎬 Watch: A full walkthrough of the complex seal replacement process.Are there any recalls for this issue?
There are no specific recalls for valve stem seal failure on the 2000-2009 X5. However, there was a class-action lawsuit related to oil consumption on later model BMWs with N63 engines, which sometimes covered this repair. For the E53 and early E70 X5, this is considered a maintenance/repair item that the owner is responsible for.
What happens if I don't fix it?
Continuing to drive with leaking valve stem seals will lead to very high oil consumption. More importantly, the burning oil can damage your expensive catalytic converters over time, leading to an even more costly repair. It can also foul spark plugs and cause rough running.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11340029751 11349065438

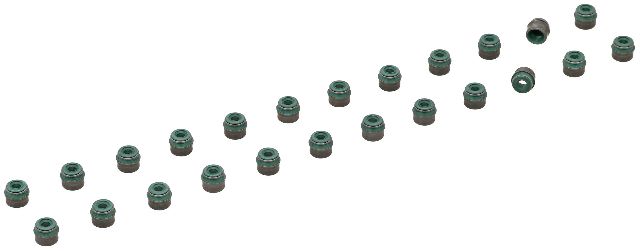

The kit typically contains 32 valve stem seals for V8 engines (4 per cylinder) or 24 for 6-cylinder engines. The seals are made of FPM (fluoride rubber) to withstand high temperatures.
