Honda S2000 Vehicle Speed Sensor Guide for 2000-2009 Models
An erratic speedometer or VTEC not engaging could mean it's time for a new Vehicle Speed Sensor.
- A faulty VSS is a primary cause for the VTEC system not engaging on an S2000.
- Symptoms almost always include an erratic speedometer and a Check Engine Light with codes P0500 or P0503.
- Replacement is a simple DIY task that can be done in under an hour, saving on labor costs.
- While OEM is preferred by many enthusiasts, high-quality aftermarket brands like NGK/NTK or Delphi are reliable alternatives.
Is Your S2000's Speedometer Acting Up?
A faulty Vehicle Speed Sensor (VSS) is a common issue on the Honda S2000. When this sensor fails, it can cause a few distinct and frustrating problems. Because this sensor is essential for both the speedometer and VTEC operation, a failure can take a lot of the fun out of driving your S2000. Recognizing the symptoms early can help you get the problem fixed and get back to enjoying your car's legendary performance.
Symptoms of a Failing VSS
The most obvious sign of a bad VSS is a speedometer that stops working, reads zero, or bounces around randomly. 🎬 Watch: See an S2000 speedometer failing in action. You will likely also see a Check Engine Light (CEL) on your dashboard. A common trouble code associated with VSS failure is P0500 or P0503, which points to a malfunction in the vehicle speed sensor circuit. For S2000 owners, the most significant symptom is that the VTEC system will not engage. The car's computer prevents VTEC activation without a proper speed reading as a safety measure.
Critical S2000-Specific Symptom
If your VSS is faulty, your S2000's engine will not switch over to the high-lift VTEC cam profile. You'll notice a lack of power in the upper RPM range, which is a core part of the S2000 driving experience. Before suspecting more complex engine issues, always consider the VSS if you have VTEC engagement problems combined with a speedometer issue.
Choosing the Right Aftermarket VSS
When it comes to sensors for a high-performance car like the S2000, quality matters. While many enthusiasts prefer to use Genuine Honda OEM parts, quality aftermarket options are available and can offer significant savings. However, it's wise to be cautious of the cheapest no-name options, as they can be unreliable.

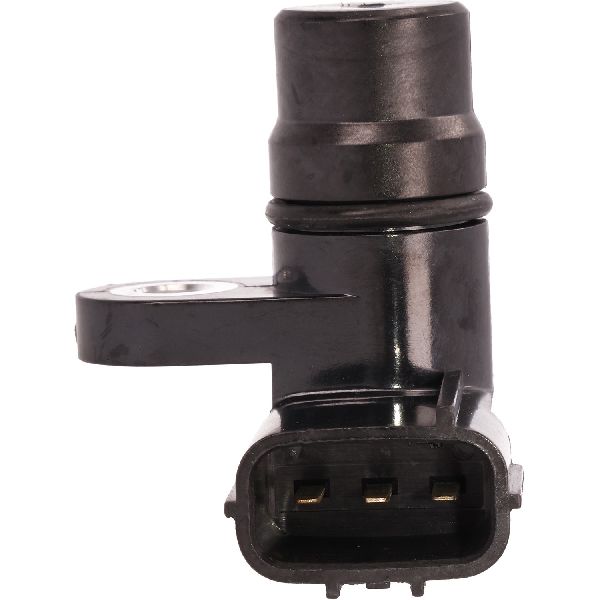

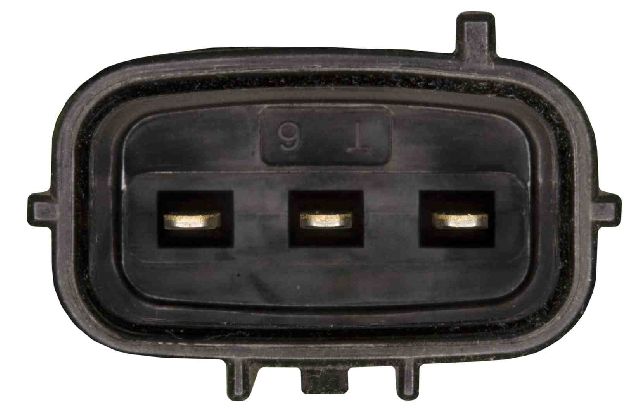

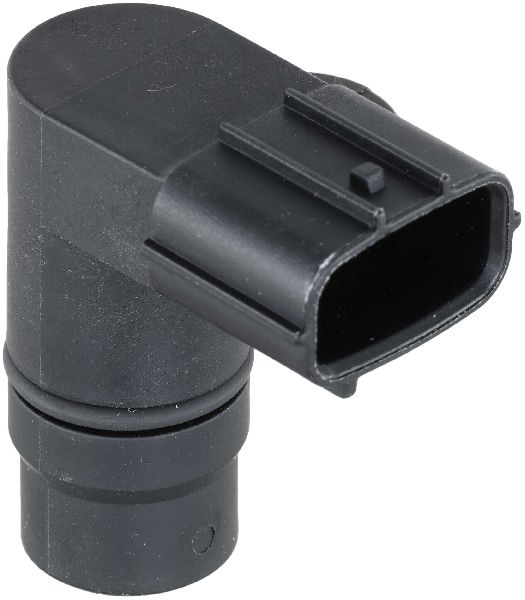

- Premium Aftermarket (e.g., NGK/NTK, Delphi, Standard Motor Products): These brands are often OEM suppliers for many car manufacturers and have a reputation for quality and reliability that is close to, or sometimes the same as, the original part. An NTK sensor, for example, is considered a good bet by many in the community.

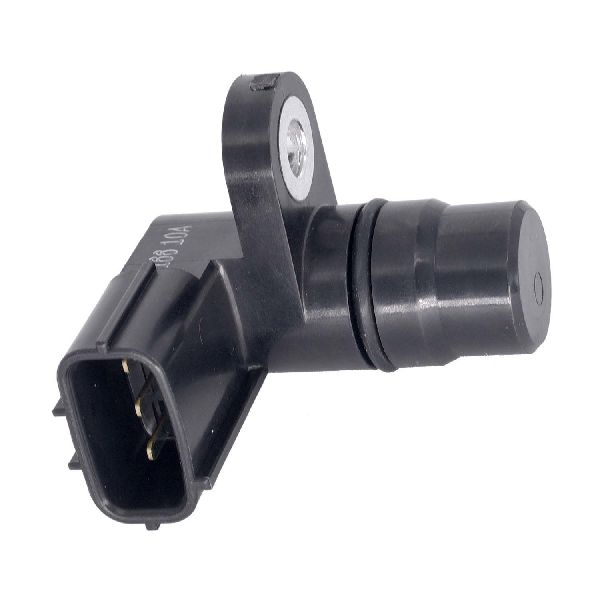

- Value-Priced Aftermarket (e.g., Walker Products, Global Parts): These brands provide a more budget-friendly option. While they can be a good value, their long-term reliability might not match that of premium brands or OEM. They can be a good choice if budget is the primary concern.
Pro Tip: Check the Connection First
Before you buy a new sensor, get under the car and check the VSS connector on the transmission. It's located on the side of the transmission, and sometimes the connection can become loose or corroded, mimicking the symptoms of a failed sensor. A simple cleaning or re-seating of the connector might solve your problem for free.
🎬 See this walkthrough on how to replace the sensor.Cost of Replacing a Vehicle Speed Sensor
The cost to replace a VSS on a Honda S2000 can vary. The part itself is relatively inexpensive, but labor costs at a repair shop will add to the total. This is a very feasible DIY job for those with basic tools, which can save you a significant amount of money.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket VSS | $43 - $99 |
| New OEM Honda VSS | $144 - $170 |
| Shop Labor | $73 - $107 |
| Total (Shop Repair) | $217 - $277 |
Frequently Asked Questions (FAQ)
Where is the Vehicle Speed Sensor located on the S2000?
The VSS is mounted on the transmission. For most S2000s, it is on the passenger's side of the transmission housing. It is held in by one or two 10mm bolts and has a 3-wire electrical connector.
Is it difficult to replace the VSS myself?
No, this is considered an easy repair. You will need to safely raise the car on jack stands, locate the sensor on the transmission, unplug the connector, remove the bolt(s), and swap the sensor. The entire job can usually be done in under an hour with basic hand tools.
🎬 Watch: A quick guide to sensor removal and installation.Are there any recalls for the S2000 Vehicle Speed Sensor?
No, there are no specific recalls or technical service bulletins (TSBs) from Honda or the NHTSA for the vehicle speed sensor on the 2000-2009 S2000.
Will a bad VSS cause any other problems?
Besides the speedometer and VTEC issues, a faulty VSS can sometimes affect the Electric Power Steering (EPS) system, as it uses vehicle speed to adjust steering feel. While the S2000 doesn't have cruise control, on other vehicles, a bad VSS would also cause it to fail.
Helpful Videos
Technical Specifications
OEM Part Numbers: 78410-S2A-003
3-wire Hall effect sensor mounted on the transmission.
