A Guide to the Fuel Pressure Sensor for the 2000-2010 Volvo V70
Understanding this common failure point can solve frustrating stalling, hard starting, and poor performance issues in your P2 V70.
- Bosch is the Original Equipment Manufacturer (OEM); choosing this brand is the safest bet for reliability.
- Symptoms like stalling and hard starts strongly mimic a bad fuel pump, but the sensor is a cheaper and easier first part to replace.
- A safety recall was issued for 2003-2004 models due to sensors cracking and causing stalling; check if your vehicle was affected.
- Replacement is simple for DIYers, requiring only a T25 Torx bit and less than an hour of work.
Is Your V70's Fuel Pressure Sensor Failing?
A bad fuel pressure sensor on a 2000-2010 Volvo V70 can cause a range of frustrating and intermittent problems. Because the sensor's readings are vital for correct fuel delivery, a faulty one can trick the engine's computer into making bad decisions. This can lead to symptoms that often mimic other issues, like a failing fuel pump or clogged filter.
Common Symptoms of a Bad Sensor:

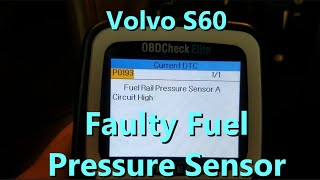

🎬 Watch: A visual guide to bad fuel rail pressure sensor symptoms.- Check Engine Light: This is often the first sign. Common trouble codes include P0089 ("Fuel Pressure Regulator 1 Performance"), P0193 ("Fuel Pressure Sensor Circuit High") 🎬 See how to diagnose these specific fuel pressure fault codes., ECM-280B, and ECM-280C.
- Hard Starting or Long Cranking: The engine may take longer than usual to start, or you might have to try turning the key more than once. This happens because the incorrect sensor reading prevents the system from building proper fuel pressure for startup.
- Engine Stalling: The engine may stall unexpectedly, sometimes while driving or when coming to a stop. This can be a serious safety concern, especially in traffic.
- Rough Idle and Misfires: Your V70 might idle erratically, with the RPMs hunting up and down. You may also feel a shudder or misfire.
- Poor Performance and Hesitation: You may notice sluggish acceleration, a general lack of power, or a hesitation when you press the gas pedal.
Known Issue: Safety Recall on 2003-2004 Models
Volvo issued a safety recall (NHTSA Campaign ID: 07V226000, Volvo Recall #181) for the fuel pressure sensor on some 2003-2004 V70 and S60 models. The original sensors were prone to cracking, which could cause them to send incorrect signals, leading to stalling and a loss of power. The fix was to replace the sensor with a modified design. While this recall is old, it's worth checking if your vehicle was affected and if the repair was completed.
Choosing the Right Aftermarket Fuel Pressure Sensor
When replacing the fuel pressure sensor, you have a few options. For this specific part on the P2 platform V70, the choice is fairly straightforward.
Tier 1: OEM (Bosch)

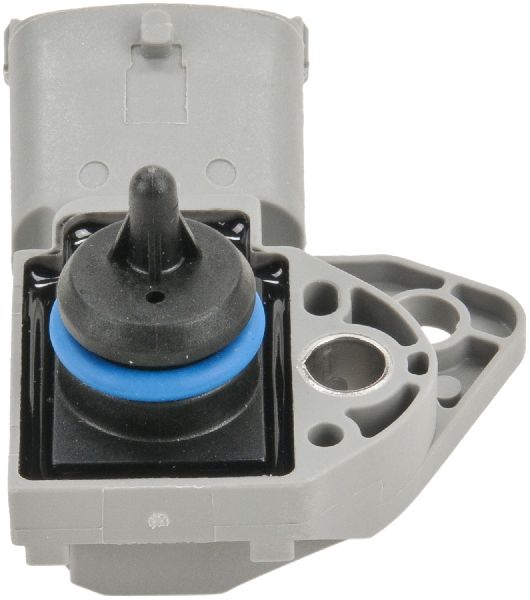

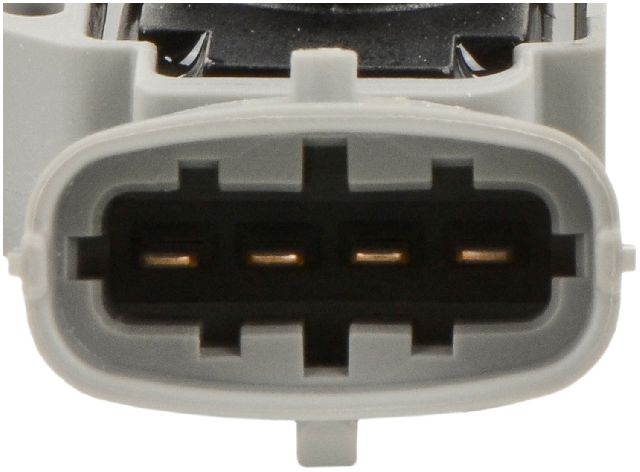

Bosch was the original equipment manufacturer (OEM) for Volvo for this part. This means that buying a Bosch-branded sensor is the functional equivalent of getting a genuine part from a Volvo dealer, but usually at a lower cost. Given its critical role, choosing the Bosch sensor is the most recommended path for reliability and peace of mind. The original part number was 8699449, which has been superseded by 31272730. The Bosch part number is often listed as 0261230110 or 0261230238.
Tier 2: Reputable Aftermarket (Standard Ignition)
Brands like Standard Motor Products (Standard Ignition) are well-known in the aftermarket and produce reliable components. While not the original manufacturer, they are a solid alternative if a Bosch part is unavailable. Their parts are engineered to meet or exceed OE specifications.

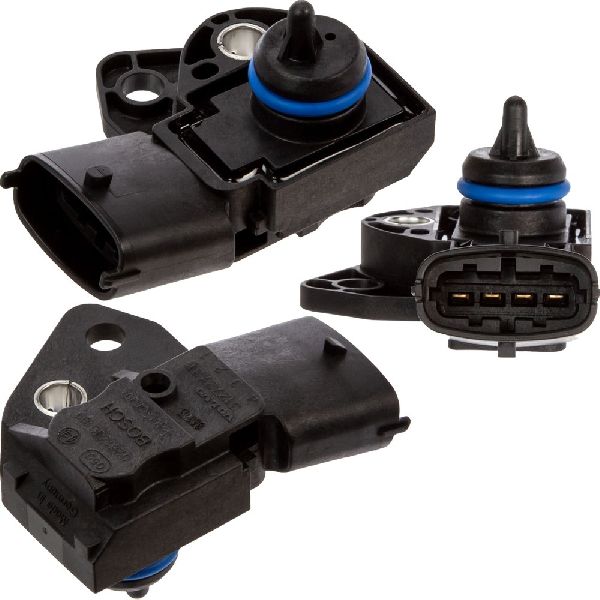

Tier 3: Budget Brands (URO Parts, Global Parts, Replacement)
Brands like URO Parts and other generic "Replacement" or store brands offer the lowest price point. While tempting, forum discussions and mechanic opinions often suggest caution with critical sensors from these brands. Some owners use them as a temporary fix or when on a tight budget, but for a part that can cause stalling and drivability issues, the small savings may not be worth the potential risk of premature failure.
Pro Tip: Before ordering, it's a good idea to visually inspect the sensor on your car. It's located on the end of the fuel rail. On some models, it's easily accessible, while on others, a plastic cover may need to be removed. You can often see the Bosch part number printed on the old sensor, confirming the correct replacement.
Cost of Replacing a Volvo V70 Fuel Pressure Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Volvo Branded) | $175 - $225 |
| New Aftermarket (Bosch OEM) | $45 - $90 |
| New Aftermarket (Other Brands) | $42 - $85 |
| Shop Labor | $50 - $120 |
Note: Prices are estimates and can vary based on supplier and location.
Frequently Asked Questions
Where is the fuel pressure sensor located on my V70?
The fuel pressure sensor is located on the end of the fuel rail, which is the metal pipe that distributes gasoline to the fuel injectors. On most 5-cylinder engines in the V70, you can find it by following the fuel line to the top of the engine. It is held in place by a single T25 Torx screw.
Is this a difficult part to replace myself? 🎬 Watch this easy DIY walkthrough to replace the sensor yourself.
For most DIY mechanics, this is a relatively easy job. It typically takes less than an hour. The process involves relieving the fuel system pressure, disconnecting the electrical connector, removing one T25 Torx screw, and carefully pulling the old sensor out. A small amount of fuel will spill, so it's important to have rags ready and work on a cold engine.
Can I just clean my old fuel pressure sensor?
No, cleaning the sensor is not an effective repair. The failure is typically internal to the electronic components. If the sensor is faulty, it must be replaced.
What happens if I ignore a failing fuel pressure sensor?
Ignoring the problem can lead to worsening symptoms. You may experience frequent stalling, which is a safety hazard. It can also lead to poor fuel economy and potentially damage other components, like the catalytic converter, over the long term due to an incorrect air-fuel mixture.
My symptoms point to the fuel pump. Could it still be the sensor?
Yes. The symptoms of a bad fuel pressure sensor and a failing fuel pump are very similar. A faulty sensor can send signals that make the ECM believe there's a fuel delivery problem, even when the pump is fine. Because the sensor is much cheaper and easier to replace than the fuel pump, it's often recommended to replace the sensor first when diagnosing these issues, especially if you have a relevant fault code.
Helpful Videos
Technical Specifications
OEM Part Numbers: 31272730 8699449 30756097 30650015
Mounts to the fuel rail, secured by one T25 Torx screw. Electronic sensor that replaces older mechanical regulator designs.
