Ford Crown Victoria Ignition Coil & Boot Guide (2000-2011)
Keep your Panther Platform running smoothly by understanding its modern Coil-on-Plug ignition system.
- Your 2000-2011 Crown Vic has a Coil-on-Plug (COP) system, not spark plug wires.
- A flashing check engine light indicates a severe misfire; reduce speed immediately to prevent catalytic converter damage.
- For best results and longevity, use high-quality Motorcraft (OEM) or reputable aftermarket coils like Denso or NGK.
- It is highly recommended to replace all eight spark plugs when replacing coils to ensure a complete and lasting repair.
Understanding Your Crown Victoria's Ignition System
If you're looking for a "spark plug wire set" for your 2000-2011 Crown Victoria, you're looking for a part that doesn't exist for your car. Starting in the 2000 model year, Ford equipped the 4.6L V8 engine with a Coil-on-Plug (COP) system. This means instead of a set of long wires, you have eight individual ignition coils. Each coil sits right on top of a spark plug, delivering spark directly. The part that can fail is the ignition coil itself or the rubber boot attached to it.
Symptoms of a Failing Ignition Coil
A bad ignition coil will make itself known through poor engine performance. The symptoms are often most noticeable when the engine is under load, like when you're accelerating hard or driving up a hill.
- Engine Misfires: This is the most common sign. It can feel like a stutter, hesitation, or jerking from the engine.
- Rough Idle: Your car may shake or vibrate more than usual when stopped in gear.
- Check Engine Light: A failing coil will almost always trigger the check engine light. If the light is flashing, it signals a severe misfire that could damage your expensive catalytic converters. You should pull over as soon as it's safe. Common codes include P0300 (random misfire) and P0301-P0308 (for specific cylinders).
- Reduced Fuel Economy: When a cylinder isn't firing correctly, your engine burns more fuel to compensate.
- Hard Starting: The engine may have trouble starting, especially when it's hot.
Choosing the Right Aftermarket Coils
When it comes to ignition components for the 4.6L V8, quality matters. While many budget-friendly options exist, owner feedback strongly suggests that sticking with a quality brand prevents having to do the job twice.
Brand Quality Tiers
| Tier | Brands | Assessment |
|---|---|---|
| OEM / Premium Aftermarket | Motorcraft | Motorcraft is Ford's original equipment manufacturer. These coils (part number DG-508) are widely considered the most reliable option for a long service life. Owners who try cheaper brands often report returning to Motorcraft after premature failures. |
| Quality Aftermarket | Denso, NGK, Taylor Cable | These brands have a solid reputation. Taylor Cable is known for performance applications and offers ignition coils and boots for the Crown Victoria. Denso and NGK are also trusted OEM suppliers for many automakers and are considered a safe alternative to Motorcraft. |
| Economy Aftermarket | Store brands, unbranded online sellers | Use with caution. While the low price is tempting, these coils have a much higher reported failure rate. They might work in a pinch, but for long-term reliability on a daily driver or former police interceptor, it's often worth spending more for a better-quality part. |
Pro Tip: Replace Plugs and Boots at the Same Time
Since you have to remove the ignition coils to get to the spark plugs, it's highly recommended to replace the spark plugs at the same time. Worn spark plugs can put extra strain on the coils, causing them to fail prematurely. Also, inspect the coil boots for any cracks, swelling, or brittleness and replace them as needed. Many quality aftermarket coils come with new boots pre-installed.
Frequently Asked Questions (FAQ)
Do I have to replace all eight ignition coils at once?
No, you don't have to. However, coils are often manufactured at the same time, so when one fails, others may soon follow. If one coil fails and the others are original with high mileage, it's a good preventative measure to replace all eight, along with the spark plugs, to ensure reliability and save on future labor.
How do I find out which coil is bad?
If you have a check engine light, an OBD-II scanner will give you a code like 'P0304', which points to a misfire in cylinder #4. If you don't have a scanner, a common diagnostic trick is to swap the suspected bad coil with a coil from a known good cylinder. Clear the codes, run the engine, and see if the misfire code 'follows' the coil to the new cylinder. 🎬 Watch a diagnostic and replacement guide for misfire codes. If it does, you've found the bad coil.
What tools do I need to replace the ignition coils?

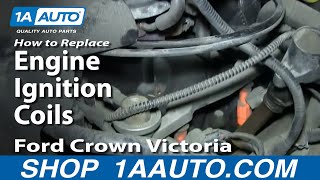

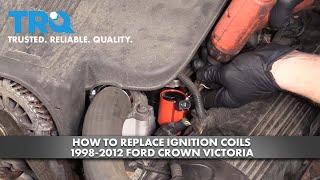

The job is straightforward and requires basic hand tools. 🎬 See a step-by-step walkthrough of the coil replacement process. You'll typically need a ratchet, a 7mm socket (sometimes an 8mm), and possibly a flathead screwdriver to loosen the air intake hose on the driver's side for better access.
Are there any recalls for the ignition system on my Crown Victoria?
No, there have been no specific recalls issued by the NHTSA for ignition coils or wires on the 2000-2011 Ford Crown Victoria. Recalls for this vehicle range have focused on issues like steering shafts and lighting control modules.
🎬 Learn about other common issues found in Crown Victorias.Helpful Videos
Technical Specifications
OEM Part Numbers: 3W7Z-12029-AA DG-508
System Type: Coil-on-Plug (COP), Quantity: 8 required for V8 engine, Bolt Size: 7mm head
