Volkswagen Passat Manifold Absolute Pressure (MAP) Sensor Guide (2000-2011)
Is your Passat running rough or losing power? A faulty MAP sensor could be the culprit.
- A faulty MAP sensor causes poor fuel economy, rough idle, power loss, and a Check Engine Light.
- For Passats, especially turbocharged models, stick with OEM-quality brands like Bosch or Delphi for reliability.
- Oil contamination from the PCV system is a common cause of MAP sensor failure on these engines.
- Check for a relevant TSB regarding software updates for the P0106 code before replacing the part, especially on 2.5L engines.
Understanding MAP Sensor Failure in Your Passat
The Manifold Absolute Pressure (MAP) sensor in your 2000-2011 Volkswagen Passat is critical for engine performance. When it fails, the engine's computer gets wrong information about engine load, leading to a host of problems. On turbocharged engines, which are common in the Passat, this sensor is sometimes called a boost pressure sensor and is essential for managing the turbo. Failure isn't just about a check engine light; it can affect how your car drives and its long-term health.
Watch for Oil Contamination
A common reason for MAP sensor failure on these VW engines is oil contamination. The Positive Crankcase Ventilation (PCV) system can sometimes allow oil vapor into the intake manifold, which coats the sensor and causes it to fail. When replacing the sensor, it's a good idea to check for oil residue in the intake and on the old sensor.
Choosing the Right Aftermarket MAP Sensor
When your Passat's MAP sensor fails, you have several aftermarket options. Not all brands are created equal, especially for a sensitive electronic part. For a critical sensor like this, choosing a brand known for quality is important to avoid future headaches.
Tier 1: OEM-Quality Brands
- Bosch: Bosch is a frequent original equipment manufacturer (OEM) for Volkswagen. Choosing a Bosch aftermarket sensor is often the same as buying the part from a VW dealer, just without the dealer markup. They are known for quality, reliability, and accurate readings.
- Delphi: Delphi is another top-tier OEM supplier for many car manufacturers. They have a strong reputation for producing reliable electronic components that meet or exceed factory specifications.
Tier 2: Reputable Aftermarket Brands
- Standard Motor Products (Standard Ignition): A well-respected aftermarket company that produces a wide range of quality engine management parts.
- Vemo: Vemo is a German brand that offers a wide range of parts. While some of their products are well-regarded, quality can sometimes be inconsistent compared to OEM suppliers, with some parts being manufactured in China. It's a viable option but falls slightly below the OEM-quality tier.
Tier 3: Value-Oriented Brands
- Walker Products & Global Parts: These brands often provide the most budget-friendly options. While they can be a solution for a quick fix, their long-term reliability and precision may not match the higher-tiered brands. For a critical sensor, it's often worth spending more for a part from a more reputable manufacturer.
A Note on TSBs and the P0106 Code
Volkswagen issued a Technical Service Bulletin (TSB #TB011406 / 2034012) for some 2.5L engines that could incorrectly set a P0106 MAP sensor fault code. The TSB states that the engine computer's software is too sensitive and requires an update. Before replacing the sensor for a P0106 code, especially on a 2.5L model, check if this software update has been performed. Sometimes the problem is software, not a bad part.
🎬 See how to troubleshoot P0106 codes on VW 2.5L engines.Cost of Replacing a Passat MAP Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $34 - $180 |
| New OEM (Dealer) | $150 - $250+ |
| Shop Labor | $60 - $120 |
Frequently Asked Questions
Can I just clean my Passat's MAP sensor?
Yes, cleaning the MAP sensor is possible and can sometimes fix the problem, especially if it's just dirty from oil or carbon. You must use a cleaner specifically designed for electronic sensors, like a Mass Airflow (MAF) sensor cleaner. Do not use brake cleaner or carburetor cleaner, as they can damage the delicate sensor. However, if the sensor's internal electronics have failed, cleaning will not help and replacement is necessary.

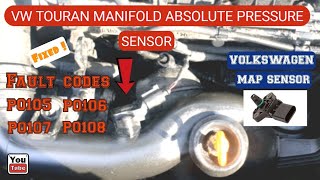

🎬 Watch a demonstration on how to safely clean your sensor.Where is the MAP sensor located on my 2000-2011 Passat?
The MAP sensor is typically located on the intake manifold. On many Passat engines, especially the 1.8T and 2.0T, it's mounted directly to the plastic or aluminum intake manifold, often near the throttle body. It is usually held in place by one or two small Torx screws and has an electrical connector attached.

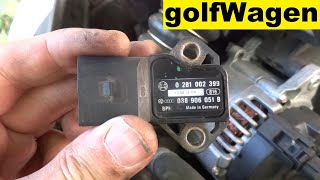

🎬 Watch this step-by-step guide to replacing your Passat MAP sensor.Is a Bosch sensor the same as a genuine VW part?
Often, yes. Bosch is the original equipment (OE) supplier for many Volkswagen parts, including sensors. A Bosch-branded part is frequently identical to the one sold in a VW-branded box, just at a lower price. For a reliable repair, Bosch is a safe bet.
What happens if I ignore a bad MAP sensor?
Ignoring a bad MAP sensor can lead to several problems. You'll likely experience poor fuel economy, rough idling, hesitation, and reduced engine power. In more serious cases, running a rich or lean air-fuel mixture for a long time can damage your catalytic converter or cause internal engine damage. It's best to address the issue promptly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 036906051C 03C906051 03C906051F 0261230235
Typically a 3 or 4-pin sensor that measures pressure and sometimes temperature. Mounts directly to the intake manifold, usually with one or two Torx screws.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
