Volvo S40 Fuel Pump Module Assembly Guide (2000-2011)
Addressing the common stalling, no-start, and power loss issues in your 2000-2011 Volvo S40.
- For 2004.5-2011 S40s, always consider the Fuel Pressure Sensor (FPS) and Pump Electronic Module (PEM) as potential culprits before replacing the entire pump.
- A safety recall for the PEM affects 2004.5-2006 models; check if this repair has been done on your vehicle.
- Symptoms like stalling, hard starts, and power loss are common indicators of a failing fuel pump or related component.
- Bosch and Delphi are OE-quality brands offering high reliability, while Professional Parts Sweden is a viable budget-friendly option.
Is Your Volvo S40 Stalling or Hard to Start?
A failing fuel pump module can cause major problems in your Volvo S40, from annoying starting issues to dangerous engine stalling in traffic. Because this part is so critical for engine operation, you shouldn't ignore the warning signs. Common symptoms include a long crank time before the engine starts, a whining sound from the rear of the car, sudden loss of power while accelerating, and a noticeable drop in gas mileage. In severe cases, the engine may stall completely or fail to start at all.
Generation Differences and Known Issues
The 2000-2011 Volvo S40 spans two different vehicle generations, and their fuel systems have important differences.

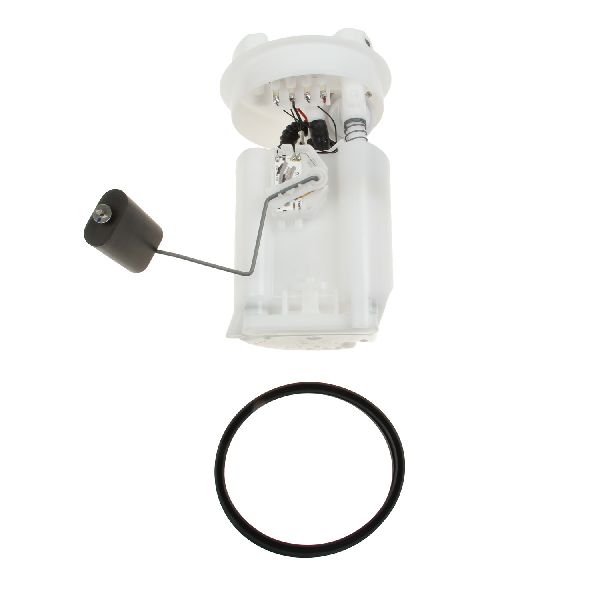

- First Generation (2000-2004): These models have a more traditional in-tank fuel pump module assembly. Failures are typically due to the pump motor wearing out over time. 🎬 Watch: Step-by-step fuel pump replacement for first-gen S40 models.
- Second Generation (2004.5-2011): These models use a more complex system with three key components that can fail: the in-tank fuel pump, a Fuel Pump Electronic Module (PEM), and a fuel pressure sensor (FPS) on the engine's fuel rail.
Recall Notice: Fuel Pump Electronic Module (PEM) for 2004.5-2006 S40
Volvo issued Recall 190 for 2004.5-2006 S40 models because the externally mounted PEM was vulnerable to corrosion from water and road salt. This corrosion can cause a loss of signal to the fuel pump, leading to low fuel pressure, engine stalling, or a no-start condition, increasing the risk of a crash. The official fix was for dealers to replace the PEM and move it to a protected location under the rear seat. 🎬 Watch: How to locate and replace the PEM control module. Before replacing your fuel pump, check if your vehicle was affected and if this recall work was performed.
Check the Fuel Pressure Sensor (FPS) First on 2004.5-2011 Models
A very common point of failure on second-generation S40s is the fuel pressure sensor located on the fuel rail. A bad FPS can cause symptoms identical to a failing fuel pump, including stalling, surging power, and hard starts, often triggering error codes like P0089 or P0190. Since the sensor is much cheaper and easier to replace than the entire fuel pump assembly, it is often the first part mechanics recommend replacing during diagnosis.
🎬 See how to replace the fuel rail pressure sensor yourself.Choosing the Right Aftermarket Fuel Pump
When shopping for a new fuel pump module, you'll find options from original equipment (OE) manufacturers and dedicated aftermarket brands. Your choice depends on your budget and quality preference.

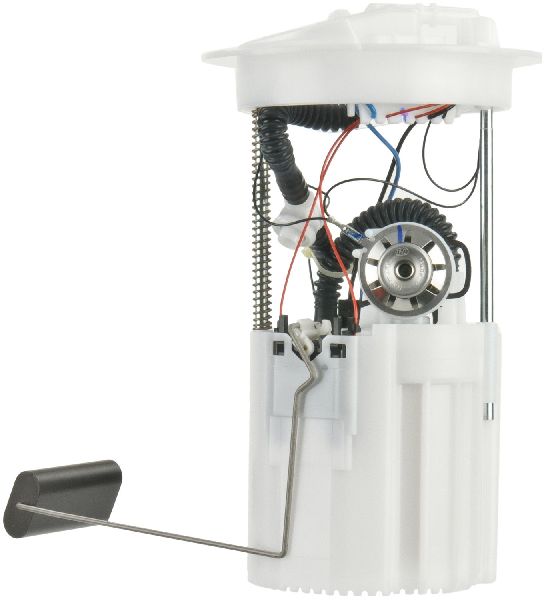

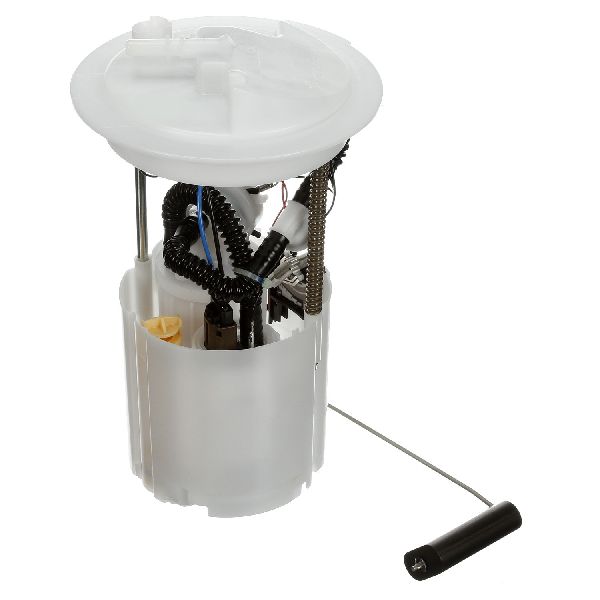

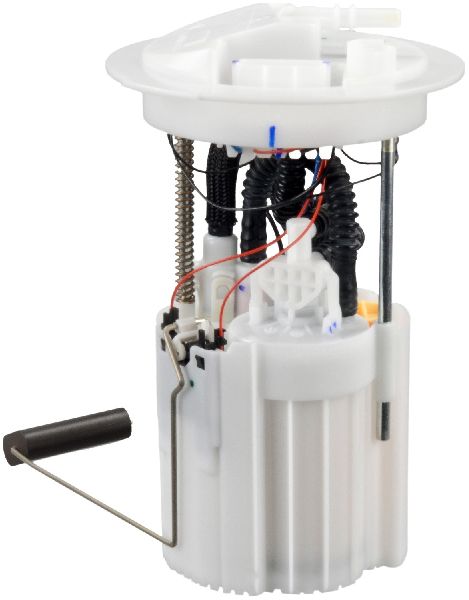

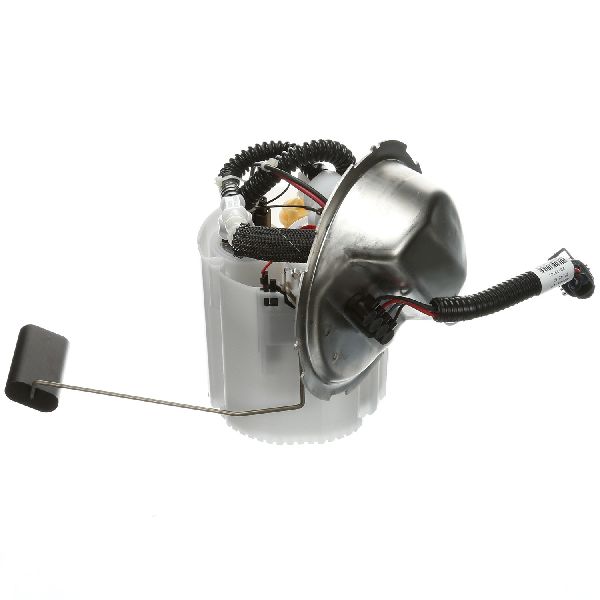

- Bosch and Delphi: Both Bosch and Delphi are well-regarded Original Equipment Manufacturers (OEM) for Volvo and other European brands. Choosing a pump from one of these brands is the closest you can get to buying a genuine Volvo part. They are engineered to meet or exceed factory specifications for performance and durability, making them a top-tier choice for reliability.
- Professional Parts Sweden (PPS): This brand specializes in aftermarket parts for Volvo and Saab. PPS offers a more budget-friendly alternative to OE brands. While it may not have the same OE pedigree as Bosch or Delphi, it provides a functional replacement that can be a good value for vehicle owners.
Cost of Replacing a Volvo S40 Fuel Pump Module
The total cost depends on the parts you choose and local labor rates. The job is more complex on some second-generation models if the fuel tank must be removed.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Fuel Pump Module | $150 - $832 |
| New OEM/Genuine Volvo Fuel Pump Module | $400 - $970+ |
| Shop Labor | $200 - $450 |
| Total Estimated Cost (Aftermarket) | $350 - $1282 |
Frequently Asked Questions (FAQ)
How do I know if my S40 needs a new fuel pump, PEM, or fuel pressure sensor?
On 2004.5-2011 models, it can be difficult to tell without proper diagnosis. A bad fuel pressure sensor is a very common and inexpensive first step. If your car is a 2004.5-2006 model, check the PEM for corrosion, especially if it's still mounted externally near the fuel tank. A loud whining from the fuel tank or symptoms that get worse on a low tank of gas often point more directly to the in-tank pump itself.
Can I replace the fuel pump myself?
For experienced DIY mechanics, this is a manageable job. Access is typically gained by removing the rear seat cushion. The process involves safely relieving fuel system pressure, disconnecting the battery, and handling gasoline. On some models, the fuel tank may need to be lowered, which significantly increases the difficulty. If you are not comfortable with these steps, it is best to have a professional mechanic perform the replacement.
Do I need to replace the fuel filter at the same time?
Yes, it is highly recommended. On many S40 models, the primary fuel filter or strainer is integrated into the fuel pump module assembly, so it gets replaced automatically. Fuel contamination is a leading cause of premature fuel pump failure, so starting with a clean system is crucial.
What is the difference between a fuel pump and a fuel pump module assembly?
The term "fuel pump" often refers to just the electric motor itself. A "fuel pump module assembly" is the complete unit that drops into the fuel tank. This assembly includes the pump motor, the fuel level sending unit (float), the inlet strainer/filter, and the housing. For a complete and reliable repair, you should always replace the entire module assembly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30630596 30792729 30769225 31261424 30792730 31261425
The fuel pump module assembly is an in-tank electric pump. It includes the pump, housing, fuel level sending unit, and inlet strainer. Second-generation (2004.5+) systems are controlled by an external Pump Electronic Module (PEM) and use feedback from a fuel rail pressure sensor.
