Volvo S40 Suspension Strut Bellows Replacement Guide (2000-2011)
Learn how to protect your S40's struts from premature failure by replacing torn or missing strut bellows.
- A torn bellow is not an immediate problem, but it guarantees future failure of the more expensive strut.
- Always replace bellows when installing new struts to protect your investment.
- You must know if you have a 2000-2004 or a 2004.5-2011 S40, as the suspension parts are not interchangeable.
- Replacement requires a spring compressor, a tool that can be dangerous. Professional installation is recommended for those unfamiliar with suspension work.
Signs of a Failing Strut Bellow
The only sign of a failing strut bellow is visible damage. You will need to look behind your wheel to inspect it. A bad bellow will be cracked, torn, split, or may be missing entirely. Unlike a failed strut, a torn bellow does not cause immediate driving symptoms. However, it directly leads to the failure of the much more expensive strut assembly. Symptoms of a strut that has failed (often due to a bad bellow) include:
- Knocking or clunking noises when driving over bumps.
- A bouncy, unstable, or "floating" feeling from the front end.
- The front of the car diving forward when braking.
- Visibly leaking fluid on the outside of the strut housing.
Critical: Know Your S40 Generation
The 2000-2011 Volvo S40 spans two completely different vehicle platforms. It is essential to buy parts for the correct generation.
- First Generation (2000-2004): These cars were built on a platform shared with Mitsubishi. There are even minor suspension differences within this generation.
- Second Generation (2004.5-2011): These cars were built on the Ford C1 platform, shared with the Mazda 3 and Ford Focus.
A part for a 2003 S40 will not fit a 2005 S40. Always verify your vehicle's model year before ordering.
Choosing the Right Aftermarket Bellows
For a protective part like a strut bellow, a quality aftermarket option provides excellent value. The original Volvo bellows are often made by Sachs/Boge. While OEM parts guarantee a perfect fit, aftermarket brands offer competitive quality, often for a lower price.
- KYB: A well-known and respected brand that is both an OEM supplier for some carmakers and a popular aftermarket choice. KYB bellows are considered a reliable, premium aftermarket option that often meets or exceeds original specifications and may come packaged with a new bump stop. They are a safe bet for quality and durability.
- Skyward: This brand is positioned as a budget-friendly or economy choice. While it meets basic requirements, it may not offer the same material quality or longevity as a premium brand like KYB. It's a viable option for those on a tight budget.
Pro Tip: Replace in Pairs
It is highly recommended to replace your strut bellows whenever you replace your struts. Since the labor to access the bellow is the same as replacing the entire strut, doing them at the same time saves you from paying for the same job twice. Also, replace suspension components in pairs (both front struts, both rear shocks) to ensure even handling and performance.
Cost of Replacing Suspension Strut Bellows
| Part | Estimated Cost |
|---|---|
| New Aftermarket Strut Bellows (Pair) | $40 - $65 |
| Shop Labor (Per Pair) | $300 - $600 |
Note: Labor costs are a significant part of this repair because the entire strut assembly must be removed and disassembled. Prices vary by location and shop.
Frequently Asked Questions (FAQ)
Can I drive with a torn strut bellow?
Yes, you can drive the car. A torn bellow itself is not an immediate safety hazard. However, it allows contaminants to destroy the strut seal, which will lead to a necessary and more expensive strut replacement down the road. It's best to replace it as soon as practical.
Do I need to replace the bump stop with the bellow?

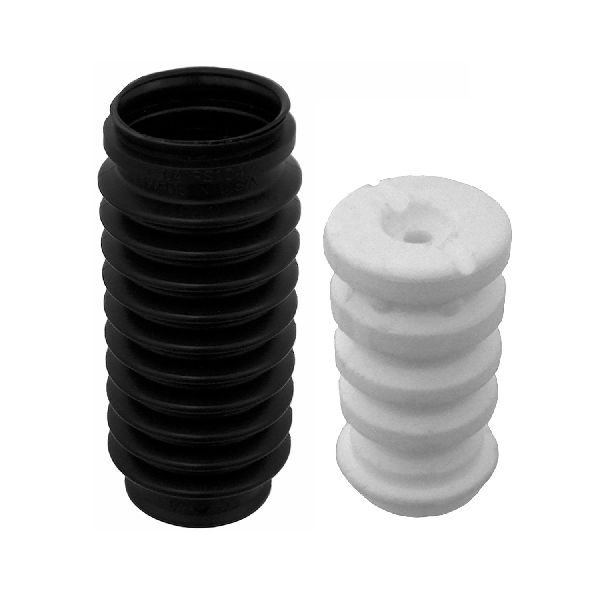

It is highly recommended. The bump stop is a foam or rubber cushion that prevents the suspension from bottoming out. It is located inside the bellow. Since you already have the strut disassembled, replacing the old, likely compressed bump stop is a smart and inexpensive preventative measure. Many bellow kits, like those from KYB, include a new bump stop.
Can I replace just the bellow without a spring compressor?
No. To replace the bellow, the strut top mount must be removed, which requires taking the coil spring off the strut. This can only be done safely by compressing the spring with a proper spring compressor tool. Attempting this without the correct tool is extremely dangerous.
Are there any recalls for my S40's suspension?
There are no recalls specifically for the strut bellows. Some early first-generation models had a Technical Service Bulletin (TSB #7601) for a knocking noise from the front suspension. Some 2011 S40 models were recalled for a potential crack in a frame support member in the engine compartment, which could affect crash performance. Always check with a dealer or the NHTSA website for recalls specific to your VIN.
Technical Specifications
OEM Part Numbers: 30870529 30666841
Varies by model year. First generation (2000-2004) and second generation (2004.5-2011) use different parts.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
