Toyota Avalon Electric Fuel Pump: A Guide for 2000-2012 Models
Learn to spot the signs of a failing fuel pump in your Avalon and choose the best aftermarket replacement.
- Denso is the original equipment (OEM) brand for Toyota and offers the best quality and reliability for your Avalon.
- A whining noise from the rear seat or a long crank time are the most common early warnings of fuel pump failure.
- Replacement is easier than on many cars because the pump is accessible under the rear seat, avoiding the need to drop the fuel tank.
- Always replace the fuel strainer and filter with the pump to prevent damage to the new part from contamination.
Is Your Avalon's Fuel Pump Failing?
A fuel pump in the 2000-2012 Toyota Avalon can fail gradually or suddenly. A complete failure will leave you stranded, so it's important to recognize the early warning signs. The most common symptom owners report is a long crank time, where the engine turns over for several seconds before it finally starts. You might also hear a distinct, high-pitched whining or humming noise coming from the rear seat area, which is directly above the fuel tank.
🎬 Watch: See a breakdown of common bad fuel pump symptoms.Other symptoms include:
- Engine sputtering or hesitating when you accelerate.
- Sudden loss of power, especially when going uphill or under heavy load.
- Engine stalling unexpectedly, sometimes after it has warmed up.
- A Check Engine Light, often with codes like P0087 (Fuel Rail/System Pressure - Too Low).
Choosing the Right Aftermarket Fuel Pump
When replacing the fuel pump on your Avalon, you have several aftermarket options. Quality can vary, so it's important to understand the difference between the brands available.
Tier 1: OEM Equivalent
- Denso: Denso is the Original Equipment Manufacturer (OEM) for Toyota fuel pumps. Choosing a Denso pump is the closest you can get to buying the part from a Toyota dealer, ensuring a perfect fit and original factory performance. It is the highest quality and most reliable option.
Tier 2: High-Quality Aftermarket
- Delphi: Delphi is another top-tier OEM supplier for many car manufacturers. They have a strong reputation for producing reliable and durable fuel system components that offer an excellent balance of quality and price. A Delphi pump is a solid choice for your Avalon.
- Beck Arnley: Beck Arnley sources parts from various manufacturers, often including OEM suppliers. While you might receive a Denso pump in a Beck Arnley box, it's not guaranteed. They are generally considered a reliable mid-range option.
Tier 3: Economy Options
- GMB & AutoBest: These brands provide a budget-friendly solution. While they are manufactured to meet OE specifications, some professional mechanics and user forums have reported inconsistent long-term reliability with economy brands. They can be a viable choice if the initial cost is your primary concern, but may not have the same lifespan as a premium brand like Denso.
Cost of Replacing a Toyota Avalon Fuel Pump
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM (Dealer) | $450 - $700+ | Highest cost, but original equipment quality (typically Denso). |
| New Aftermarket | $35 - $187 | Wide range. Denso/Delphi are at the higher end, with GMB/AutoBest at the lower end. |
| Shop Labor | $200 - $350 | Based on 2-3 hours of work. Does not require dropping the fuel tank. |
Frequently Asked Questions
Is there a fuel pump recall for my 2000-2012 Avalon?
No. While Toyota issued a massive fuel pump recall for many 2018-2020 models, the 2000-2012 Avalon generation is not included in that specific action. Any failure on these model years is due to age and wear, not a manufacturing defect covered by a recall.
Should I replace the whole assembly or just the pump motor?
Most aftermarket options are sold as the pump motor with a new strainer. You will reuse your Avalon's original fuel pump module assembly (the plastic housing and fuel level sender). This is a cost-effective repair. A complete module assembly is more expensive and usually not necessary unless the housing or level sensor is damaged.
How can I test my fuel pump before replacing it?
A mechanic can perform a fuel pressure test by connecting a gauge to the fuel system. This is the most definitive way to diagnose a weak pump. A simple DIY test is to turn the key to the 'ON' position (without starting the engine) and listen for a quiet 2-3 second hum from the rear seat area. If you hear nothing, the pump may not be getting power or may have failed completely.
🎬 Learn how to test fuel pumps, relays, and fuses yourself.Why is it critical to also replace the fuel filter and strainer?
Fuel tank contamination is a leading cause of premature fuel pump failure. A clogged strainer or old fuel filter can restrict flow, forcing the new pump to work harder and burn out quickly. Always install the new strainer that comes with your pump and consider replacing the in-line fuel filter for complete system health.
Helpful Videos
Technical Specifications

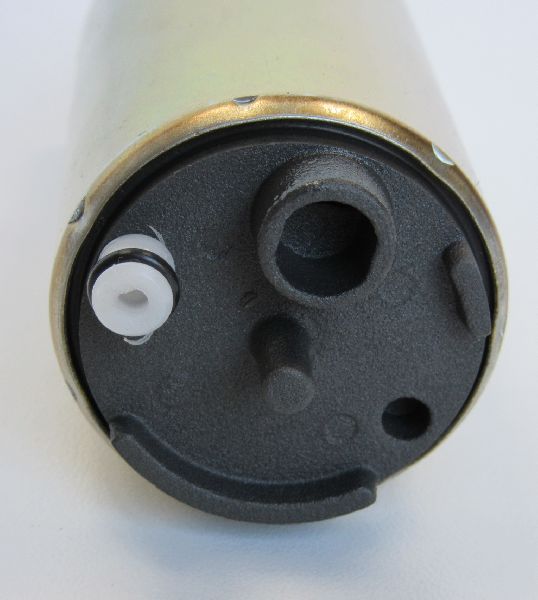

OEM Part Numbers: 23221-28280 23220-0H110 23220-75040 23220-0P020 23221-0H080
This is typically the in-tank fuel pump motor and strainer, not the full assembly. The pump is accessed via a service panel under the rear seat.
