A Tundra Owner's Guide to Replacing the 2000-2012 Door Lock Actuator
If your Tundra's power locks are buzzing, sticking, or have stopped working, this guide is for you.
- Actuator failure is a very common issue; the main symptoms are a single non-responsive door and buzzing noises.
- There are no recalls, but the problem is well-known. You will likely have to pay for the repair yourself.
- Parts are different for 2000-2006 and 2007-2012 models, and for each specific door. Double-check compatibility before ordering.
- Replacement is a manageable DIY job that takes 1-2 hours per door. Always test the new part before putting the door panel back on.
Symptoms of a Failing Door Lock Actuator
Door lock actuator failure is a very common problem on the 2000-2012 Toyota Tundra as it ages. The small motor simply wears out. The signs are usually easy to spot and typically start with one door before others may follow.
- One Door Won't Lock or Unlock: The most definite symptom is when one door stops responding to the key fob or master switch, while the others work fine. This almost always points to a bad actuator in that door.
- Buzzing or Grinding Noise: You may hear a loud buzzing or grinding sound from inside the door when you press the lock or unlock button. This is the sound of the small motor's internal gears struggling or stripping as they try to move the lock.
- Intermittent or Slow Operation: Before it fails completely, the lock might work only some of the time. It may be slow to respond or only lock but not unlock (or vice-versa). This problem can sometimes get worse in cold weather.
Known Issues, TSBs, and Recalls
As of early 2026, there are no active NHTSA safety recalls for door lock actuator failure on the 2000-2012 Toyota Tundra. However, the issue is widespread enough that a class-action lawsuit was filed, alleging that the actuators on many Toyota models, including the 2007-2021 Tundra, are prone to premature failure. This lawsuit claims the parts are defective but does not mean Toyota will cover out-of-warranty repairs. Owners are typically responsible for the cost of replacement.
Choosing the Right Aftermarket Actuator
When shopping for a new aftermarket actuator, you'll find a wide range of prices and brands. The quality can vary significantly, and for a part that requires a few hours to install, choosing the right one can save you from doing the job twice.
| Brand Tier | Examples | Quality & Cost Assessment |
|---|---|---|
| Premium Aftermarket | Standard Ignition, Aisin | These brands aim to meet or exceed original equipment (OEM) quality. Aisin is a known OEM supplier for Toyota, so their parts are often identical to the factory original without the Toyota branding. They cost more than budget options but are a reliable choice for longevity. |
| Standard Aftermarket | Ackoja, Dorman | These are mid-range options. Ackoja focuses on parts for Japanese vehicles and adheres to high-quality standards. Dorman is a very common brand that performs extensive testing, but owner reviews are often mixed. These can be a good balance of price and quality. |
| Economy / Value | Replacement, various online marketplace brands | This category includes the lowest-priced options. While the low cost is appealing, reliability can be a gamble. Some owners report these parts failing within months. If you are doing the work yourself and don't mind the potential for a future replacement, it's the most budget-friendly route. |
Pro Tip: Consider Remanufactured OEM
Many Tundra owners have found success with remanufactured original actuators from sellers on sites like eBay. These sellers replace the small motor inside a factory OEM housing, often providing a reliable part with a warranty for a fraction of the cost of a new OEM unit from a dealer.
Generation and Cab Differences
It is critical to order the correct part for your truck. The actuators are not interchangeable.
- First Generation (2000-2006): 🎬 Watch this easy DIY fix for first-gen Tundra actuators. These trucks use different actuators than the later models.

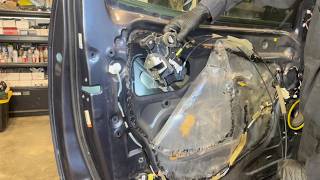

- Second Generation (2007-2012): 🎬 See how to remove, test, and install second-gen actuators. Use a completely different part design.
- Door Specific: Each door (Front Left, Front Right, Rear Left, Rear Right) requires its own unique actuator.
- Cab Specific: On first-generation models, Regular and Access Cabs may use different parts than Double Cabs. Always verify fitment with your vehicle's specific details.
Frequently Asked Questions (FAQ)
Can I replace just the small motor inside the actuator?
Yes, this is possible and the cheapest option. It requires carefully opening the sealed actuator case, desoldering the old motor, and soldering in a new one. It is a more advanced repair but can be done with basic electronic skills.

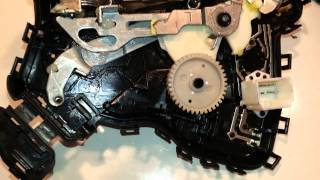

🎬 Watch a walkthrough on replacing just the internal motor.Do I have to replace all the actuators at once?
No, you only need to replace the one that has failed. However, since they are all the same age, it's not uncommon for another one to fail soon after. If you are comfortable with the process, you might consider buying more than one to have on hand.
My key fob doesn't work, but the door switch does. Is it the actuator?
No. If the lock works with the switch on the door panel, the actuator is functioning. The problem is likely with your key fob (it may need a new battery) or the truck's remote receiver.
Will an aftermarket actuator work with my factory alarm and key fob?
Yes, a correctly installed, compatible aftermarket actuator is designed to function just like the original part, responding to signals from your factory key fob and door switches.
Is any special programming required after installation?
No. The door lock actuator is a plug-and-play component. No special programming or tools are needed once it is physically installed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 69040-0C010 69120-0C010 69040-0C050
The door lock actuator is an integrated motor and gear assembly housed in a plastic casing. It connects via a multi-pin electrical connector and has mechanical linkages to the door latch and lock rods. Part numbers vary significantly based on vehicle generation (2000-2006 vs. 2007-2012), door position (front/rear, left/right), and cab type (Access Cab vs. Double Cab).
