Dodge Viper A/C O-Ring and Gasket Kit Guide for 2000-2017 Models
Fix the most common cause of A/C failure in your Viper—leaking seals—and get your air conditioning blowing ice cold again.
- The most common A/C failure on a 2000-2017 Viper is a refrigerant leak caused by hardened o-rings, especially at the compressor.
- Replacing o-rings requires the system to be professionally evacuated and recharged; this is not a simple DIY job without special tools.
- Use a vehicle-specific, metric o-ring kit from a reputable brand like ACDelco, Four Seasons, or GPD to ensure a proper seal.
- While the kit itself is inexpensive, budget for professional labor, which makes up the majority of the repair cost.
Is Your Viper's A/C Blowing Warm Air?
One of the most frequent A/C problems on the 2000-2017 Dodge Viper is a refrigerant leak, and the cause is often a failed o-ring. These small rubber seals are located at every connection point in the A/C system. Due to the high heat in the Viper's engine bay, particularly near the exhaust, the o-rings on the A/C compressor are a very common failure point. They become hard and brittle, losing their ability to seal properly. This allows refrigerant to slowly escape, and eventually, your A/C system won't have enough refrigerant to cool the air.
Symptoms of a Failing A/C O-Ring
- Weak or Warm Air: The most obvious sign is that the air from your vents isn't as cold as it used to be, or it's just blowing warm air.
- A/C Works Intermittently: Your system might cool for a short time after a recharge but quickly lose its cooling ability as the new refrigerant leaks out.

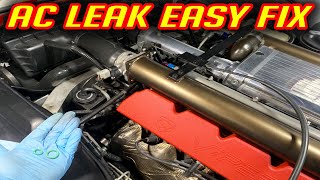

- Visible Dye or Oily Residue: If UV dye has been added to the system, you might see a bright green or yellow glow around A/C line connections under a UV light, especially around the compressor. 🎬 Watch a demonstration of a common A/C leak on this Viper. This residue is the refrigerant oil that leaks out with the refrigerant.
- Hissing Sounds: While less common for a small o-ring leak, a significant leak could produce a hissing sound from the engine bay.
A Note on A/C System Repairs
Replacing A/C o-rings requires specialized equipment. The system must be professionally evacuated to safely remove any remaining refrigerant. After replacing the seals, a vacuum must be pulled on the system to remove air and moisture before it can be recharged with the correct amount of refrigerant and oil. Do not vent refrigerant into the atmosphere.

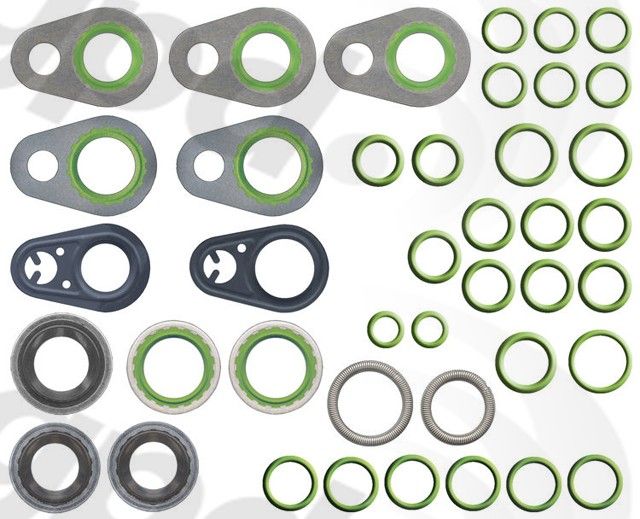

Choosing the Right Aftermarket O-Ring Kit
For the Dodge Viper, several aftermarket brands offer complete o-ring and gasket kits. These kits are an economical way to get all the seals you need for a repair. The key is to ensure the kit uses the correct material, which is typically HNBR (Hydrogenated Nitrile Butadiene Rubber), compatible with modern R134a refrigerant.
Brand Tiers
- Good - Global Parts (GPD), Four Seasons: These are well-known aftermarket brands that produce reliable, application-specific kits. They are designed to meet or exceed original equipment (OE) fit and function and are a cost-effective choice for restoring your A/C system. Some users have noted that Four Seasons kits are a go-to choice for general repairs.
- Better - ACDelco: While often associated with GM vehicles, ACDelco produces high-quality aftermarket parts for a wide range of cars, including the Viper. Their kits are known for using proper materials like HNBR rubber and are considered a premium aftermarket option that provides excellent dependability.
- OEM (Original Equipment Manufacturer): Sourcing o-rings directly from a Dodge dealer is also an option. While this ensures a perfect match, it is often the most expensive route. Forum users have noted that the A/C system is made by Denso, and sometimes metric o-rings from other Japanese vehicle dealers can be matched up successfully.
Pro Tip: When performing any A/C repair that opens the system, it's best practice to replace all the o-rings on the components you disconnect, not just the one that failed. It's also a good time to replace the Schrader valves on the service ports, as they can also be a source of slow leaks.
Typical Costs for A/C O-Ring Replacement
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket A/C O-Ring & Gasket Kit | $15 - $32 |
| Shop Labor (Evacuate, Replace Seals, Vacuum & Recharge) | $150 - $500 |
| Total Estimated Cost | $165 - $532 |
Note: Labor costs can vary significantly based on your location and the specific seals being replaced. Accessing some o-rings, like those on the condenser, may require more labor.
Frequently Asked Questions
Do I have to replace all the o-rings at once?
While you can just replace the single leaking o-ring, it is highly recommended to replace any seals you disturb during the repair. Given the age of the vehicle and the low cost of the kits, many owners and mechanics choose to replace all the accessible o-rings at the same time to prevent future leaks.
Are the o-rings on a Viper a special size?
Yes, the A/C system uses metric-sized o-rings. Using a standard SAE o-ring kit from a general parts store may result in an improper seal and continued leaks. It's important to use a vehicle-specific kit for your 2000-2017 Dodge Viper.
What are the most common o-rings to fail on a Viper?
Based on owner experiences, the o-rings on the A/C compressor manifold lines are the most common failure point. This is due to the high heat and vibration they are exposed to. The o-rings at the condenser connections are another potential leak spot.
Can I replace the o-rings myself?
Physically replacing the o-rings is straightforward for someone with basic mechanical skills, often just requiring a 10mm wrench or socket. However, the full job requires expensive A/C service equipment to recover refrigerant, pull a vacuum, and recharge the system. Without these steps, the repair will fail and can damage A/C components. For most owners, this is a job best left to a professional shop.
Helpful Videos
Technical Specifications
Material: HNBR (Hydrogenated Nitrile Butadiene Rubber), compatible with R134a refrigerant. Sizing: Metric.
