Ford Mustang Windshield Washer Pump Guide (2000-2021)
Everything you need to know about diagnosing and replacing the windshield washer pump on your 2000-2021 Ford Mustang.
- A failed windshield washer pump is a common issue, with symptoms like no spray, weak spray, or no pump sound.
- Before replacing the pump, check for simple fixes like an empty reservoir, clogged nozzles, or disconnected hoses.
- Replacing the pump is a simple, DIY-friendly job that takes less than an hour for most Mustang models.
- Aftermarket brands like Trico offer a cost-effective and reliable alternative to OEM parts.
Is Your Mustang's Windshield Washer Pump Failing?
A common point of failure in the windshield washing system is the pump itself. If you activate the switch and nothing happens, or if the spray is weak, the pump could be the culprit. You might hear the pump motor trying to run, or you might hear nothing at all. Over time, the internal motor can wear out or the pump can become clogged.
Common Symptoms of a Bad Washer Pump
🎬 Watch: How to troubleshoot your Mustang's washer pump motor.- No Fluid Spraying: You activate the switch, but no washer fluid comes out.
- Weak Spray: The fluid barely reaches the windshield.
- No Pump Noise: You don't hear the familiar humming sound of the pump motor when you try to use it.
- Pump Runs, But No Fluid: You can hear the pump, but nothing sprays. This could point to a clogged filter, disconnected hose, or an empty reservoir.
Choosing the Right Aftermarket Pump
When replacing the washer pump on your Mustang, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. Ford's OEM pumps are a direct fit, but aftermarket options can offer good quality at a lower price.
Trico is a well-known brand that produces aftermarket washer pumps compatible with the Ford Mustang. Trico pumps are designed to be an easy, direct-fit replacement, often requiring no special adjustments for installation. They are a reliable choice for DIYers and professional mechanics alike.
Pro Tip: Check the Simple Things First!
Before you buy a new pump, make sure to check a few simple things. Ensure the washer fluid reservoir is full. Check for clogged nozzles on the hood; you can use a small pin to clear them. 🎬 Watch this quick guide on repairing Mustang washer nozzles. Also, inspect the hoses for cracks, kinks, or disconnections. Sometimes, the issue is a simple clog or a loose hose, not a failed pump. A clogged pump inlet filter is also a common problem.
Replacement Cost
The cost to replace a windshield washer pump can vary. The part itself is relatively inexpensive, but labor costs at a repair shop will add to the total. A DIY replacement is very feasible for those with basic tools and can save you money.
🎬 See this step-by-step walkthrough for replacing the pump yourself.| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump (e.g., Trico) | $27.43 - $37.72 |
| New OEM Ford Pump | $30 - $74 |
| Shop Labor | $85 - $125 |
| Total Professional Replacement | $157 - $199 |
Frequently Asked Questions
Is it hard to replace a Mustang windshield washer pump?
No, it is generally considered an easy repair. The pump is usually located at the bottom of the washer fluid reservoir, accessible from underneath the car or by removing a fender liner. The process involves draining the reservoir, disconnecting the electrical connector and hose, and pulling the old pump out of the reservoir grommet.
Can I drive my Mustang with a broken washer pump?
Yes, you can technically drive the car. However, not being able to clean your windshield on the move is a significant safety hazard, especially in bad weather or if your windshield gets dirty from road spray. It is highly recommended to fix it as soon as possible for safe driving.
My pump runs, but no fluid comes out. What's wrong?
If you hear the pump motor, the electrical side is likely working. The problem could be an empty reservoir, a hose that has popped off, clogged nozzles, or a clogged filter at the pump's inlet. Sometimes, using incompatible washer fluids can create a gel-like substance that clogs the system.
Are there any recalls for the Ford Mustang windshield washer pump?
Searches did not find any specific recalls for the windshield washer pump itself on 2000-2021 Ford Mustangs. There was a recall for some 2020 Ford and Lincoln models where washer fluid was contaminated with brake fluid, which required replacing the pump assembly as part of the remedy, but this did not include the Mustang. Another recall for newer models concerned the wiper motor, not the washer pump.

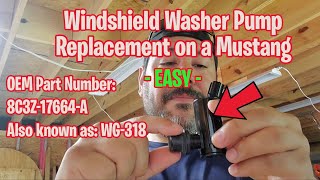

Helpful Videos
Technical Specifications
OEM Part Numbers: 8S4Z-17664-A 8C3Z-17664-A 7R3Z-17664-A
The pump is a small, 12V DC motor that press-fits into a grommet at the base of the washer fluid reservoir. It typically has one electrical connector and one or two hose outlets.
