2001 Lexus IS300 Horn Replacement and Troubleshooting Guide
If your IS300 horn is silent, weak, or sounds off, this guide will help you diagnose the problem and choose the right replacement.
- Always check the horn fuse and relay before replacing the horn itself; they are the most common points of failure.
- The 2001 IS300 uses two horns, a high-tone and a low-tone; replacing only one may result in a weak sound.
- Replacement is a simple DIY job, located behind the grille and requiring only basic tools.
- Aftermarket horns may require you to create a simple ground wire, connecting the negative terminal to the mounting bolt.
Is Your Lexus IS300 Horn Not Working?
A dead horn on your 2001 IS300 is a common issue, but the horn units themselves are not always the cause. Before you buy a new horn, it's important to do a little troubleshooting. Many times, a much simpler and cheaper part is the real problem.
Always Diagnose First
Don't assume the horn itself is broken. The most common failures in the horn system are a blown fuse or a bad relay. Checking these two things first can save you time and money.
- Check the Fuse: Look in your owner's manual to find the horn fuse in the fuse box. Pull it out and see if the metal strip inside is broken. This is the easiest and cheapest fix.
- Check the Relay: Find the horn relay, which is also in the fuse box. Have a friend press the horn button while you listen or feel for a 'click' from the relay. If it doesn't click, the relay is likely bad.
- Check for Power: If the fuse and relay are good, the horn itself might be the problem. Use a multimeter at the horn's electrical connector to see if it's getting 12-volt power when the horn button is pressed. If it gets power but makes no sound, you need a new horn. 🎬 Watch: How to test your horn circuit with a multimeter.
Choosing the Right Aftermarket Horn
Your IS300 has two separate horns: a high-tone and a low-tone. When one fails, the sound can be weak or strange. It's often a good idea to replace them in pairs to ensure a strong, correct sound. Aftermarket horns are a cost-effective alternative to expensive dealer parts.
Brand Quality and Tiers
When shopping for a new horn, you'll find a few options. Understanding the brands will help you make the right choice for your needs and budget.
- Standard Ignition: This is a well-known and respected aftermarket brand that produces quality parts designed to be direct replacements for the original. They are a reliable choice if you want a part that fits and works like the original without the high OEM price.
- Replacement: This is a budget-friendly brand that offers parts at a very low cost. These parts are made to fit your vehicle and will get the job done, but are not known for being the highest quality. If your main goal is to fix the problem for the least amount of money, this is a viable option.
| Part Type | Our Price Range |
|---|---|
| New Aftermarket Horn (Single) | $36.29 - $57.52 |
Pro Tip: Check Your Connectors
The original Lexus horns use a single wire and ground through their mounting bracket. Many aftermarket horns have two connection points (positive and negative). This is not a problem. You will connect the car's wire to the positive terminal and create a small, new wire to connect the negative terminal to the metal mounting bolt for a ground.

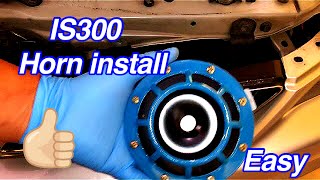

🎬 See this walkthrough on wiring and installing aftermarket horns.Frequently Asked Questions
Do I need to replace both horns at the same time?
You don't have to, but it's recommended. The horns are the same age, so if one has failed, the other may not be far behind. Replacing both ensures a proper, loud tone as the system was designed to have both a high and low pitch horn working together.
Is replacing the horn a difficult job?
No, this is a great job for a beginner. You only need basic hand tools like a socket and wrench set. The horns are easy to access behind the grille. The entire job should take less than an hour.
Could the problem be my steering wheel?
It's possible, but less likely than a fuse or relay. A component called the clock spring can fail, but you would usually have other problems too, like the airbag light coming on or cruise control not working. If only the horn is dead, focus on the fuse, relay, and horn itself first.
🎬 Watch: A quick guide to fixing a broken car horn.Are there any recalls for the horn on my 2001 IS300?
No, there are no recalls or technical service bulletins (TSBs) from Lexus or the NHTSA related to a faulty horn on the 2001 Lexus IS300.
Helpful Videos
Technical Specifications
OEM Part Numbers: 86510-53050 (High Pitched) 86520-51010 (Low Pitched)
Voltage: 12V, Dual Tone System (High & Low)
