2001-2002 Subaru Outback Horn Replacement and Troubleshooting Guide
If your Outback's horn has gone silent, this guide will help you diagnose the problem and choose the right replacement part.
- A silent horn is often caused by a simple blown fuse or a bad relay, which should be checked first.
- If the horn works only when the steering wheel is turned, the problem is likely the clock spring, not the horn itself.
- Replacing the horn assembly is an easy DIY job, usually located behind the front grille.
- Standard Ignition is a reputable aftermarket brand offering good quality, while 'Replacement' brands are a cost-effective alternative.
Is Your Subaru Outback's Horn Not Working?
A silent horn is a common issue, but the fix can be simple. The problem often isn't the horn itself, but another part of the electrical circuit. Before you buy a new horn, it's worth checking a few other components first.
Common Failure Symptoms
Understanding the symptoms can help you pinpoint the problem with your Outback's horn system.
- No Sound at All: If the horn is completely silent when you press the button, the issue could be a blown fuse, a bad relay, a broken wire, or a failed horn assembly.
- Horn Works Intermittently: If the horn works sometimes but not others, or only when the steering wheel is in a certain position, this often points to a failing clock spring (also called a roll connector) in the steering column. This part contains wiring that can wear out from turning the wheel.
- Horn Sounds Weak or Different: A weak or strange-sounding horn often means the horn unit itself is failing due to age, corrosion, or internal damage. It could also indicate a poor ground connection.
- Fuse Blows Repeatedly: If you replace the horn fuse and it blows again, this indicates a short circuit in the wiring or within the horn assembly itself.
Pro Tip: Quick Diagnosis
Before you start replacing parts, try a few simple tests. Check the horn fuse in the fuse box. If the fuse is good, listen for a 'click' from the horn relay (usually in the under-hood fuse box) when someone else presses the horn. If you hear a click, the relay is likely working, and the problem may be the horn itself or the wiring to it. If there's no click, the issue is more likely the relay, the horn switch, or the clock spring.
🎬 Watch this step-by-step guide to diagnosing your Subaru horn issues.Choosing an Aftermarket Horn
For the 2001-2002 Outback, you have several good aftermarket options that can restore your vehicle's horn function without the high cost of OEM parts. The horns are typically located behind the front grille.
When choosing a replacement, consider the following brands:
- Replacement Brand: This is a budget-friendly choice. It's designed to be a direct-fit replacement that meets basic operational standards. While it may not have the same longevity as a premium brand, it's an effective and affordable solution to get your horn working again.
- Standard Ignition (Standard Motor Products): This is a well-known and respected aftermarket brand. Standard Ignition parts are often built to meet or exceed original specifications and are known for their quality and durability. Choosing this brand often means a longer-lasting repair.
Cost of Replacing a Subaru Outback Horn
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Horn | $36.29 - $77.37 |
| New OEM Horn | $80 - $120+ |
| Shop Labor | $50 - $150 |
Prices are estimates and can vary based on supplier and location.
A Note on Recalls and TSBs
While there are no specific horn recalls or Technical Service Bulletins (TSBs) for the 2001-2002 Subaru Outback, later models have had issues with the clock spring (roll connector) that can cause the horn to fail. This part is located in the steering column and allows the horn and airbag to stay connected as the wheel turns. If your horn only works when you turn the wheel, a faulty clock spring is the likely culprit.
Frequently Asked Questions (FAQ)
How do I test my Subaru Outback's horn?
The easiest way is to have a friend press the horn button while you listen for a click from the relay in the fuse box. If it clicks, you can then use a multimeter to check for 12V power at the horn's electrical connector. If power is present but the horn doesn't sound, the horn itself has failed.
Is it the fuse, the relay, or the horn?
Start with the easiest check: the fuse. The fuse box diagram will show you which one is for the horn. If the fuse is good, swap the horn relay with an identical relay from a non-essential system (like the fog lights) to see if that solves the problem. If neither of these works, the issue is likely the horn itself or the wiring.
How difficult is it to replace the horn on a 2001-2002 Outback?
Replacing the horn itself is a relatively easy job. It is usually mounted behind the grille and can be accessed by removing a few clips or bolts. It typically involves unplugging the electrical connector, unbolting the old horn, and bolting the new one in its place. This is a DIY-friendly task for most home mechanics.
Can I install a louder aftermarket horn?
Yes, many owners choose to upgrade to louder horns, like those from Hella. However, be aware that high-power horns may require a new, dedicated wiring harness with a relay to handle the increased electrical current. Simply plugging a high-power horn into the factory wiring could blow the fuse or damage the circuit.

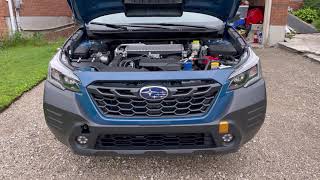

Helpful Videos
Technical Specifications
OEM Part Numbers: 85111AE01A
Voltage: 12V
