Ford Explorer Sport (2001-2003) Power Steering Pump Replacement Guide
Everything you need to know before replacing the power steering pump on your 2001-2003 Ford Explorer Sport.
- A special press-fit pulley puller/installer tool is mandatory for this job.
- Completely flushing old fluid and bleeding the new system of air is critical to prevent damage to the new pump.
- Motorcraft (OEM) pumps are highly recommended for reliability, while budget brands like Cardone have very inconsistent quality reviews.
- A slight whine can be normal for these Ford pumps, but loud groaning that changes with steering indicates a problem.
Symptoms of a Failing Power Steering Pump
When the power steering pump in your 2001-2003 Explorer Sport starts to fail, it will give you several clear warning signs. While many Ford pumps from this era have a slight, normal whine, the sounds from a failing pump will be much louder and accompanied by steering problems.
- Whining or Groaning Noises: This is the most common symptom. You will hear a loud whine or groan that gets louder when you turn the steering wheel. This noise is caused by the pump struggling to build pressure or from air getting into the system.
- Stiff or Heavy Steering: If turning the wheel suddenly feels like a workout, the pump is likely not providing enough hydraulic pressure. This makes the vehicle very difficult to steer, especially at low speeds.
- Fluid Leaks: Finding puddles of reddish or brownish fluid under the front of your truck is a bad sign. The pump itself may look wet or grimy. This indicates that the seals inside the pump have failed.
- Squealing on Startup: A sharp squeal when you first start the engine can be caused by a failing pump putting a heavy load on the serpentine belt.
A Special Tool is Required for This Job
The power steering pump pulley on the 2001-2003 Explorer Sport is press-fit. New pumps do not come with a pulley. You must use a specific 'Power Steering Pulley Puller/Installer' tool to remove the old pulley and press it onto the new pump. Attempting to use a standard gear puller or a hammer will damage the pulley and the new pump. These tool sets can often be rented from auto parts stores.
Choosing the Right Aftermarket Power Steering Pump
When it comes to aftermarket power steering pumps for your Explorer Sport, quality can vary significantly between brands. Choosing the right one can be the difference between a long-lasting repair and doing the job twice.
OEM vs. Aftermarket Brands
- Motorcraft (OEM): As Ford's official parts brand, Motorcraft is the safest choice for fit, performance, and longevity. Forum users and mechanics consistently recommend using a new or remanufactured Motorcraft pump, even though it is the most expensive option. This is the best way to ensure a quiet, reliable repair.

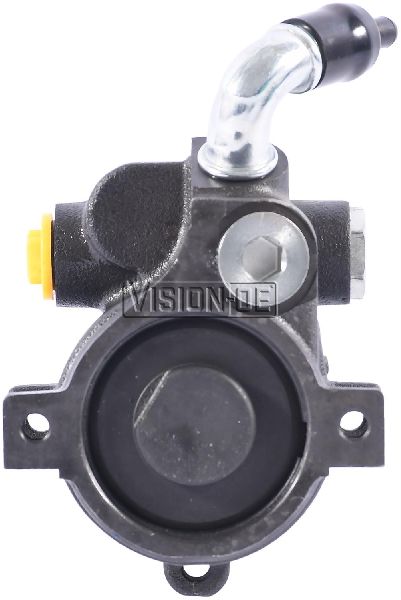

- Cardone & BBB Industries (Value Brands): These brands are widely available and more affordable, but their quality is inconsistent according to many owner experiences. Forums are filled with stories of people receiving multiple defective Cardone pumps that were noisy, leaked, or failed shortly after installation. Similarly, BBB Industries has received mixed reviews, with some users reporting success while others received poorly remanufactured parts. While they may come with a lifetime warranty, you risk having to perform the labor-intensive replacement more than once.
- Mapco: There is very little specific information available from owner forums or reviews regarding the quality of Mapco power steering pumps for this particular vehicle.
Flush and Bleed the System!
You must completely flush the old, contaminated power steering fluid from the system before installing your new pump. Old fluid contains tiny metal particles from the failing pump that will destroy the new one. After installation, you must bleed the air out of the system by raising the front wheels and turning the steering wheel lock-to-lock about 20 times with the engine OFF. Air left in the system will cause loud whining and can damage the new pump.
Cost to Replace a 2001-2003 Explorer Sport Power Steering Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump | $90 - $235 |
| Remanufactured Motorcraft Pump | $150 - $250 |
| Shop Labor | $250 - $450 |
| Total Estimated Cost (Installed) | $340 - $700 |
Costs are estimates and may vary based on your location and the specific parts chosen.
Known Issues, Recalls, and TSBs
There are no major recalls or technical service bulletins (TSBs) for the hydraulic power steering pump on the 2001-2003 Ford Explorer Sport. Searches may show recalls for Ford Explorer power steering, but these apply to much newer models (2011+) with electric power steering (EPS) systems, which are completely different from the hydraulic system in your vehicle.
Frequently Asked Questions (FAQ)
What kind of power steering fluid does my Explorer Sport use?
These trucks typically use MERCON or MERCON V automatic transmission fluid (ATF) as power steering fluid. Always check your owner's manual or the cap on the reservoir to confirm the correct fluid for your specific vehicle. Using the wrong fluid can damage seals.
Do I have to bleed the power steering system after replacing the pump?
Yes, this is a critical step. Air gets into the system during replacement and must be removed. To bleed it, raise the front wheels, and with the engine off, turn the steering wheel from one full lock to the other 20-25 times. Check the fluid level, top it off, then start the engine and repeat. A foamy or milky appearance in the fluid means there is still air in the system.
Can I reuse my old pulley?
Yes, you must reuse your old pulley. New aftermarket pumps do not include a new pulley. You will need a special pulley puller/installer tool to safely move the pulley from the old pump to the new one.
Why does my new power steering pump still whine?
A whining noise from a new pump is almost always caused by air still trapped in the system. Continue the bleeding procedure until the fluid is clear and the noise subsides. In some cases, a very slight whine can be a normal characteristic of these Ford pumps, but it should not be loud or get worse when turning.
Technical Specifications
OEM Part Numbers: F77Z-3A674-EARM
Pulley Attachment Type: Press-On. Pulley Included: No. Reservoir Included: No. Hose Port Type: O-Ring. Outlet Thread Size: 16x1.5.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
