A Guide to Spark Plug Wire Sets for the 2001-2003 Ford Explorer Sport
If your 4.0L SOHC V6 engine is running rough or misfiring, worn spark plug wires are a likely and important-to-fix cause.
- For maximum reliability on the 4.0L SOHC engine, choose OEM Motorcraft or premium aftermarket NGK wire sets.
- Always replace the spark plug wires and the spark plugs at the same time as a complete set.
- Use only Double Platinum spark plugs; the 'waste spark' ignition system will quickly ruin other plug types.
- To make the job easier, access the difficult passenger-side rear plugs and wires through the wheel well.
Is Your Explorer Sport Running Rough? Check the Wires.
If you own a 2001-2003 Ford Explorer Sport, you have the 4.0L SOHC V6 engine. The spark plug wires on this engine are a common maintenance item that can cause very noticeable problems as they age. Constant exposure to engine heat and the high voltage they carry causes the wires' internal conductors and outer insulation to break down. This breakdown allows electrical energy to leak out, resulting in a weaker spark, incomplete fuel combustion, and a poorly running engine.
Symptoms of Failing Spark Plug Wires
- Rough Idle: The engine shakes or vibrates more than it should when the vehicle is stopped.
- Engine Misfires: You may feel the engine hesitate, stumble, or jerk during acceleration. This is a classic sign of a bad wire.
- Check Engine Light: A consistent misfire will trigger the check engine light. Common codes include P0300 (random misfire) or P0301, P0302, P0303, P0304, P0305, and P0306 for each specific cylinder.
- Poor Acceleration: The truck may feel sluggish or down on power.
- Worse Gas Mileage: An inefficient engine burns more fuel for the same amount of work.
Choosing the Right Aftermarket Spark Plug Wires
For this specific Ford engine, sticking with proven quality is the best way to ensure a lasting repair and avoid new problems. While performance brands exist, they are often unnecessary for a stock engine. Forum discussions among owners consistently show a preference for OEM or high-quality equivalent brands.
Brand Quality Tiers
| Tier | Brands | Assessment |
|---|---|---|
| Tier 1: OEM & Premium Aftermarket | Motorcraft, NGK | Motorcraft is the original Ford part and the benchmark for fit, quality, and long-term reliability. Many mechanics recommend sticking with Motorcraft for Ford ignition parts to guarantee compatibility. NGK is a highly respected Japanese brand, often considered an OEM-equivalent or even an upgrade. You cannot go wrong with either of these choices. |
| Tier 2: Quality Aftermarket | Standard Wires (SMP), Taylor Cable | Standard Motor Products is a major aftermarket manufacturer with a reputation for quality parts, some of which are even repackaged OEM components. Taylor Cable is a well-known performance brand. Their wires often feature thicker insulation and are a durable choice, though they may be overkill for a daily driver. |
| Tier 3: Standard Replacement | Prenco | Prenco is a Canadian company offering a budget-friendly option. While less common, they are positioned as a standard replacement that meets original specifications and should perform adequately for drivers looking for a basic, functional replacement. |
Pro Tip: Replace Plugs and Wires Together
It is highly recommended that you replace your spark plugs at the same time you replace the wires. New wires deliver a stronger spark, which can quickly wear out old plugs. For the 4.0L SOHC engine, you must use Double Platinum spark plugs due to the waste spark system.
Estimated Cost for a New Spark Plug Wire Set (2001-2003 Explorer Sport)
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Wire Set | $45 - $75 |
| New OEM (Motorcraft) Wire Set | $50 - $90 |
| Shop Labor | $100 - $225 |
Frequently Asked Questions (FAQ)
Can I just replace the one bad wire?
It's not recommended. Spark plug wires are sold as a set because they all have the same amount of wear. If one has failed, the others are likely not far behind. Replacing them all at once ensures a reliable repair and consistent performance across all cylinders.
Is this a difficult job to do myself?
For a DIY mechanic, this is a manageable job that takes 1-2 hours. The main challenge is accessing the rear spark plugs, especially on the passenger side. Most mechanics access the passenger side plugs and wires by removing the front wheel and the plastic wheel well liner. Always replace wires one at a time to avoid mixing up the firing order.
Are there any recalls for the spark plug wires?
No. A search of the NHTSA database shows no recalls specifically for the spark plug wires on the 2001-2003 Ford Explorer Sport. There was a recall for a wiring harness related to the speed control system, but it is unrelated to the ignition wires.
My engine is misfiring, but what if it's not the wires?
While wires and plugs are the most common cause, other issues can create a misfire on the 4.0L SOHC engine. A failing ignition coil pack can produce similar symptoms. Less commonly, leaking intake manifold gaskets (TSB 00M12) can cause misfires when the engine is cold, and a rare valve spring issue (TSB 02-3-2) can cause misfires at very high RPMs.

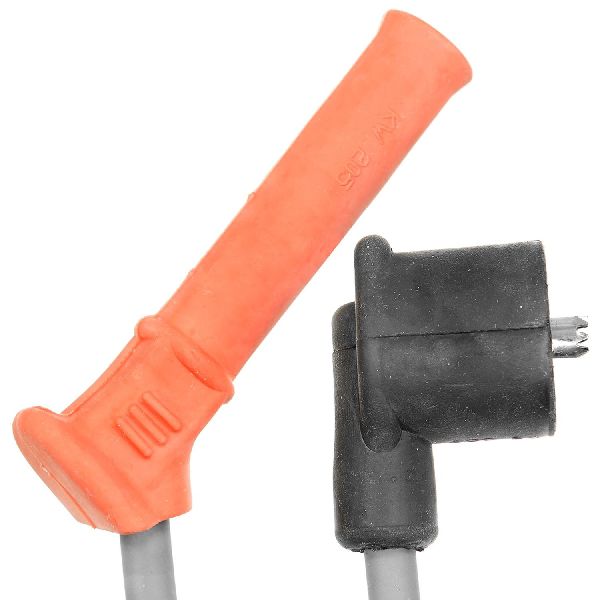

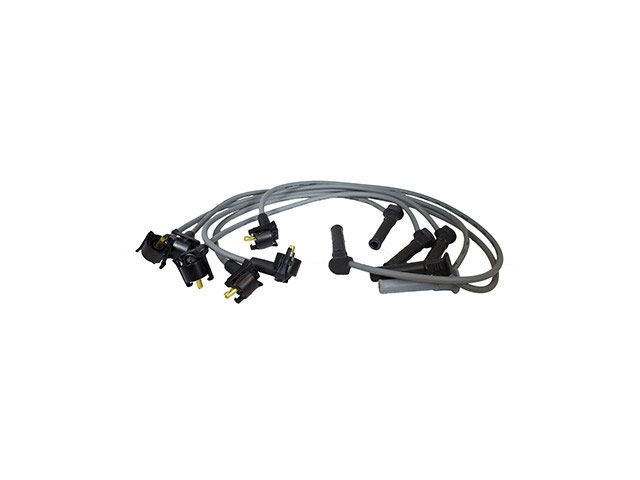

Technical Specifications
OEM Part Numbers: WR4109
The 2001-2003 Ford Explorer Sport uses a 6-wire set specifically for the 4.0L SOHC V6 engine. These wires connect the distributorless coil pack to the spark plugs. Quality sets feature silicone jackets for heat resistance and RFI suppression to prevent radio interference.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
