Ford Explorer Sport Starter Motor Guide (2001-2003)
Is your 4.0L Explorer Sport clicking but not starting? Here’s what you need to know.
- Before replacing the starter, always check the cheaper and easier-to-replace fender-mounted starter relay, a common failure point.
- A new aftermarket starter from a reputable brand like ACDelco or MPA offers a great combination of quality and value.
- Replacement can be done at home but requires working in a tight space; access is best through the driver's side wheel well.
- Always disconnect the battery and clean all electrical contact points when installing the new starter to ensure proper function.
Is Your Explorer Sport Refusing to Start?
A common issue for the 2001-2003 Ford Explorer Sport with the 4.0L SOHC V6 engine is a no-start condition. You turn the key, hear a single, loud "click" from the engine bay, but the engine doesn't crank. While this can mean the starter has failed, it's not always the case. This guide will walk you through the symptoms, what to check first, and how to choose the right new aftermarket starter.
Check This First: The Fender-Mounted Starter Relay
Before you buy a new starter, check the starter relay (sometimes called a solenoid) mounted on the passenger-side fender in the engine bay. 🎬 Watch: How to test your fender-mounted starter relay. These are known to fail on this generation of Explorer and can cause the exact same "click, no start" symptom as a bad starter. It's a much cheaper and easier part to replace. Also, always ensure your battery is fully charged and the battery terminals are clean and tight before diagnosing a starter issue.
Symptoms of a Failing Starter
- Single Loud Click, No Crank: You turn the key, and all you hear is one click. 🎬 See how to diagnose this common one-click no-start issue. This means the starter solenoid is engaging but the motor isn't turning, which could be a bad starter or the fender relay.
- Slow or Labored Cranking: The engine turns over much slower than usual, as if the battery is weak. If the battery is good, the starter motor is likely wearing out.
- Grinding Noise: A grinding sound during cranking can indicate a problem with the starter's bendix gear not engaging properly with the flywheel.
- No Sound at All: If you turn the key and nothing happens (and the dash lights work), the problem could be in the ignition switch or the starter's electrical circuit, but a completely dead starter is also possible.
Choosing a New Aftermarket Starter
For a vehicle like the 2001-2003 Explorer Sport, a new aftermarket starter offers the best balance of value and reliability. You get a brand-new part with no wear and tear, often for less than the cost of a remanufactured OEM unit.
- Premium Aftermarket (e.g., ACDelco): Brands like ACDelco are well-regarded in the aftermarket. They are manufactured to meet or exceed original equipment specifications, ensuring a good fit and reliable performance. While many aftermarket parts are produced globally, these brands maintain quality control standards. They are a solid choice for owners looking for long-term peace of mind.
- Standard Aftermarket (e.g., MPA): Brands like MPA (Motor Parts of America) provide a dependable, cost-effective solution. These new starters are designed as direct replacements and are a popular choice for DIY repairs and daily drivers, offering reliable function at an accessible price point.
Starter Replacement Cost for 2001-2003 Ford Explorer Sport
The cost can vary depending on the brand you choose and whether you do the work yourself. The job is possible for a DIYer, but access is tight.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $85 - $156 |
| Remanufactured OEM Starter | $215 - $355 |
| Shop Labor | $150 - $300 |
| Total Professional Replacement | $235 - $456 |
Pro Tip: Clean Your Connections
The starter is located on the lower driver's side of the engine and is exposed to road grime and moisture. When replacing it, take a moment to clean the electrical connection points on the battery cables with a wire brush or sandpaper. A clean, tight connection ensures the new starter gets all the power it needs to work correctly.
Frequently Asked Questions
Can I replace the starter myself?

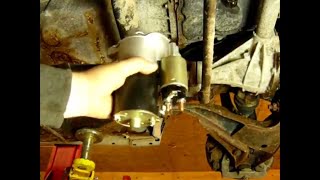

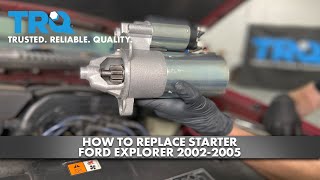

Yes, this is a DIY-feasible job for someone with moderate mechanical skill. The main challenge is the tight workspace. The most common method involves removing the driver's side front wheel and a plastic splash guard for access. 🎬 Watch this walkthrough on how to remove the starter. You will need a good socket set with extensions and possibly a swivel joint.
How do I know if it's the starter or the battery?
A simple test is to turn on your headlights and then try to start the truck. If the headlights dim significantly or go out completely, you likely have a weak or dead battery. If the headlights stay bright and you just hear a click or nothing, the problem is more likely the starter, relay, or connections.
Where is the starter located on the 2001-2003 Explorer Sport?
The starter is on the driver's side of the 4.0L V6 engine, bolted to the transmission bell housing, tucked between the engine block and the frame.
What tools are needed to replace the starter?
You will typically need a 10mm and 13mm socket or wrench for the electrical connections and mounting bolts. A ratchet with various extensions, a swivel socket, and a jack with jack stands are also necessary for safe access. Always disconnect the negative battery terminal before beginning work.
Helpful Videos
Technical Specifications

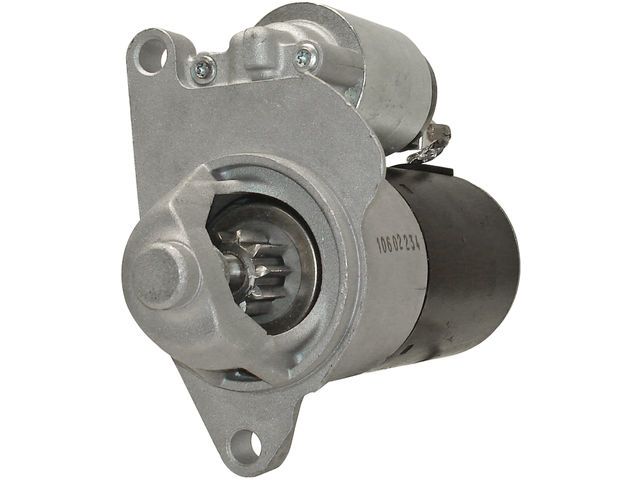

OEM Part Numbers: F87Z-11002-BARM
Fits 4.0L SOHC V6 Engine. The starter is a Permanent Magnet Gear Reduction (PMGR) type with a 10-tooth drive gear.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
