A Guide to Replacing the Starter Motor on a 2001-2003 Saturn L200
If your Saturn L200 clicks or won't crank, it might be time for a new starter—here's what you need to know.
- Always test the battery and check for clean, tight cable connections before replacing the starter.
- On 2.2L models, check for oil leaks from above the starter, as this is a common cause of premature failure.
- Replacement is a feasible DIY job that requires accessing the starter from underneath the car; a long socket extension is necessary for the rear bolt.
- A no-crank condition could also be caused by the vehicle's security system, not just a bad starter.
Is Your Saturn L200 Starter Failing?
A failing starter can leave you stranded. Before you blame the starter, always check your battery first. A weak or dead battery is the most common reason a car won't start. Make sure the battery terminals are clean and the connections are tight. If the battery is healthy, but you're experiencing the symptoms below, your starter is the likely culprit.
Common Symptoms of a Bad Starter:
- Single Loud Click: You turn the key, and all you hear is one loud click 🎬 Watch this video to diagnose a clicking no-start condition. from the engine bay. This often means the starter solenoid is engaging, but the motor itself isn't turning.
- No Sound at All: If all your lights and accessories work but turning the key does nothing, the starter may not be receiving the signal to start, or it may have failed completely. This could also point to an issue with the ignition switch or neutral safety switch.
- Grinding Noise: A grinding sound during startup can indicate that the starter gear is not engaging properly with the flywheel, or the gears are worn.
- Slow Cranking: If the engine turns over very slowly, even with a fully charged battery, the starter motor may be wearing out and drawing too much power.
A Known Issue on the 2.2L Engine
On the 2.2L four-cylinder engine, oil leaks from the valve cover or oil pressure sending unit can drip onto the starter motor below. This oil saturation can cause the starter to fail prematurely. If you are replacing your starter, inspect the area above it for any signs of oil leaks and address those issues to protect your new part.
Choosing a New Aftermarket Starter
For a vehicle like the 2001-2003 Saturn L200, a new aftermarket starter offers a great balance of value and reliability. OEM parts can be expensive and hard to find for an older model. New aftermarket parts are built to fit and function like the original and often come with a warranty.
Brand Options:
- ACDelco (Gold/Professional): Often considered a premium aftermarket brand, ACDelco parts are manufactured to high-quality standards. They are built with all-new components and are rigorously tested to ensure a proper fit and long life. This is a solid choice if you prioritize reliability.
- MPA (Motorcar Parts of America): MPA is a major manufacturer of starters and alternators, often sold under brand names like Quality-Built. They produce new and remanufactured parts that are computer-tested to simulate real-world conditions, offering a dependable and cost-effective solution.
Pro Tip: When you remove the old starter, compare it side-by-side with the new one before installation. Make sure the mounting holes and electrical connections match up perfectly to avoid any surprises during the job.
Starter Replacement Cost for 2001-2003 Saturn L200
The cost will depend on the part you choose and whether you do the work yourself or hire a professional.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $110 - $190 |
| Shop Labor | $150 - $250 |
| Total Professional Installation | $260 - $440 |
Frequently Asked Questions (FAQ)
Is it hard to replace the starter on a Saturn L200?
The job is moderately difficult and can be done by a DIYer with some experience. The starter is located at the front of the engine, near the bottom, and is accessed from underneath the vehicle. You will need to safely raise and support the car. The main challenge is reaching the two mounting bolts; one is easy to access, but the other is further back and requires a long extension for your ratchet.

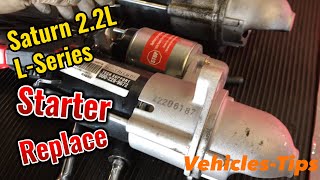

🎬 See this step-by-step tutorial for replacing the L-Series starter.What tools do I need to replace the starter?
You'll need a basic mechanic's toolset, including a ratchet with sockets (specifically 8mm, 13mm, and 15mm), a long extension, a torque wrench, and wrenches. You will also need a jack and jack stands to safely work under the car. Always disconnect the negative battery terminal before you begin.
Are there any recalls for the starter on this car?
There are no specific recalls for the starter motor on the 2001-2003 Saturn L200. However, there was a recall for the ignition control module on models with the 2.2L engine, which could cause hard starting, among other issues.
Can a bad security system prevent the car from starting?
Yes. Saturn's Passlock security system can sometimes malfunction, especially after a battery has died, and prevent the engine from cranking. If the "Security" light is flashing on the dashboard, this could be the issue rather than a bad starter. 🎬 Watch how to troubleshoot common Saturn security and starting issues. There are procedures to reset the system, but sometimes professional help is needed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10465551
The starter is a Permanent Magnet Gear Reduction (PMGR) type. For the 2.2L L4 engine, it is held on by two 15mm bolts and has one main power connection (13mm nut) and one signal wire connection (8mm nut).
