Choosing the Right Spark Plugs for Your 2001-2005 BMW R1150RT
Understand the critical differences between single-spark and dual-spark models to keep your boxer engine running smoothly.
- First, you must confirm if your R1150RT is a single-spark (2 plugs total) or dual-spark (4 plugs total) model before ordering parts.
- NGK and Bosch are OEM-quality choices that are widely available and trusted by owners.
- For single-spark bikes with surging issues, many owners report success using inexpensive Autolite 3923 plugs.
- Replacing the spark plugs is a simple, quick DIY job for most owners due to the boxer engine's easy access.
Is Your R1150RT a Single-Spark or Dual-Spark?
Before buying spark plugs, you must know which ignition system your bike has. This is the most common mistake owners make. The change happened during the 2003-2004 model years.
- Single-Spark (2001 - late 2003): These bikes have one spark plug per cylinder, for a total of two plugs. The cylinder head will have one plug wire going to the center.
- Dual-Spark (late 2003 - 2005): These bikes have two spark plugs per cylinder—a primary (center) plug and a secondary (lower) plug—for a total of four plugs. BMW introduced this to create a more complete fuel burn, which helped solve a common 'surging' issue at steady RPMs. You will see two plug wires on each cylinder head.
Symptoms of Failing Spark Plugs
Worn or fouled spark plugs can cause a variety of noticeable problems. If you experience any of these, your plugs are a good first place to check.
- Rough Idle: The engine may shake or sound uneven when stopped.
- Hard Starting: The engine turns over but struggles to fire up, especially when cold.
- Engine Misfire or Surging: You may feel a hesitation or stumble during acceleration or at a steady speed.
- Poor Fuel Economy: If you notice you're filling up more often, inefficient combustion could be the cause.
- Backfiring: Loud pops from the exhaust can be a sign of an intermittent spark.
On dual-spark models, a failing lower plug can cause subtle issues like a weak or 'anemic' cold start before the engine warms up.
Choosing the Right Aftermarket Spark Plug
For the R1150RT, several aftermarket brands offer excellent quality, often identical to the original BMW parts but at a lower price.
Tier 1: OEM Quality & Premium Performance
NGK: NGK is the original equipment manufacturer for many BMWs, and their plugs are highly recommended by owners. For single-spark models, the BKR7EKC is the standard plug. For dual-spark models, you'll need a set of primary (BKR7EKC) and secondary (DCPR8EKC) plugs. Iridium versions (like the BKR7EIX) are a popular upgrade for longer life and a strong, consistent spark.
Denso: A top-tier Japanese brand known for quality. Their Iridium plugs are a great alternative to NGK and are praised by some owners for solving pinging issues. Cross-reference the specific NGK part numbers to find the Denso equivalent (e.g., IK22, IXU22).
Tier 2: Reliable Alternatives
Bosch: Another OEM supplier for BMW. Their plugs are a direct equivalent to NGK and perform reliably. Some owners have reported solving running issues by switching away from Bosch, but this is often related to other underlying problems. They are a perfectly safe and reliable choice.
Tier 3: Budget-Friendly Options
Autolite: Surprisingly, Autolite plugs (specifically the 3923 for single-spark models) are very popular in owner forums as a low-cost way to fix surging problems. While they may not last as long as iridium plugs, their low price makes frequent changes affordable.
Champion: Champion plugs are available for the R1150RT, but they are not commonly discussed or recommended by the owner community compared to the other brands.
| Part Type | Cost per Plug | Notes |
|---|---|---|
| New Aftermarket (Standard) | $5 - $12 | Includes standard NGK, Bosch, Autolite copper plugs. |
| New Aftermarket (Iridium) | $12 - $21 | Includes NGK Iridium and Denso Iridium plugs. Longer life. |
| New OEM (Dealer) | $16 - $25 | Often a rebranded NGK or Bosch plug in a BMW box. |
Frequently Asked Questions (FAQ)
How often should I replace the spark plugs?
BMW's official schedule recommends replacing standard spark plugs every 12,000 miles (20,000 km). Many owners replace them as part of a valve adjustment service. 🎬 See how to adjust valves and change plugs together. If you opt for more expensive iridium plugs, you can often go much longer, with some owners reporting 30,000 miles or more.
Are expensive iridium spark plugs worth it?
For most riders, yes. Iridium plugs provide a more consistent spark over a longer lifespan. While they cost more upfront, their longevity means you'll change them less often, and they can contribute to a smoother running engine. Given the easy access on the R1150RT, the main benefit is performance consistency rather than saving labor.
Do I need special tools to change the plugs?
You will need a spark plug socket (16mm or 5/8") and a torque wrench. The R1150RT's factory toolkit often includes a basic spark plug tool. The key is to have a tool that can fit into the deep well of the cylinder head, 🎬 Watch this walkthrough of the R1150RT spark plug replacement. especially for the primary plugs.
What are the OEM part numbers for the spark plugs?
For dual-spark models, the common NGK numbers are BKR7EKC for the main/center plug and DCPR8EKC for the secondary/lower plug. For single-spark models, the NGK BKR7EKC is the standard plug. The BMW part number for the NGK DCPR8EKC is 12127728634.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12127728634 12127653771

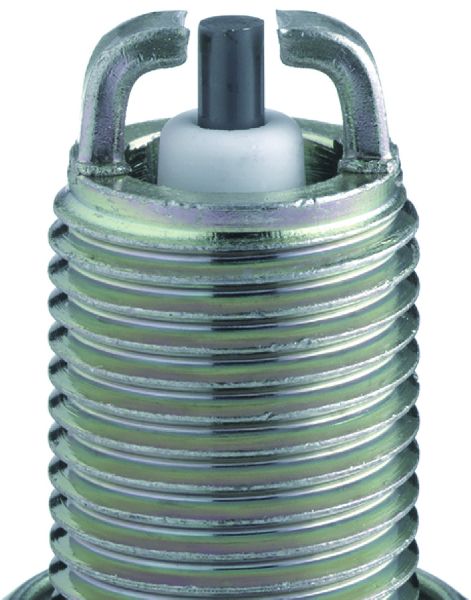

Single-Spark (2 plugs total): NGK BKR7EKC. Dual-Spark (4 plugs total): Primary (center) plug is NGK BKR7EKC, Secondary (lower) plug is NGK DCPR8EKC. Socket size is 16mm (5/8").
