A Guide to Replacing Suspension Strut Bellows on Your 2001-2005 Buick LeSabre
Protect your LeSabre's smooth ride by replacing worn or damaged strut bellows.
- The strut bellow's only job is to protect the strut rod; a torn bellow will lead to expensive strut failure if ignored.
- Replacing a strut bellow is an advanced job requiring strut disassembly; it's often done when replacing the entire strut.
- No recalls or TSBs exist for the strut bellows, but inspect them whenever you check your suspension.
- Premium brands like KYB offer better materials and longevity compared to economy options.
Is Your LeSabre's Suspension at Risk?
The 2001-2005 Buick LeSabre is known for its comfortable ride, which depends on a healthy suspension system. The strut bellows is a small but vital part of this system. Over time, the rubber or plastic material of the bellows can become brittle, crack, or tear due to age and exposure to the elements. When a bellow fails, it exposes the sensitive, lubricated strut shaft to damaging contaminants. This can quickly ruin a perfectly good strut, leading to more expensive repairs down the road.
Symptoms of a Bad Strut Bellow
A failing strut bellow itself doesn't cause driving symptoms. The problems start when the strut it's supposed to be protecting begins to fail. If you notice any of the following, you should inspect your bellows and struts:
- Visible Damage: The easiest symptom to spot. Look behind your front wheels at the strut assembly. If you see that the rubber boot is torn, cracked, or missing, it needs to be replaced.
- Greasy or Oily Struts: If the strut body is covered in oily fluid, it means the strut's internal seal has failed, likely due to contamination from a damaged bellow. The strut itself will need replacement.
- Bouncy or Unstable Ride: A LeSabre that bounces excessively after hitting bumps or feels unstable at highway speeds may have failing struts.
- Clunking Noises: Sounds from the front end when going over bumps can indicate worn struts or other suspension components.
Known Issues & Recalls
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any specific recalls or Technical Service Bulletins (TSBs) for the suspension strut bellows on the 2001-2005 Buick LeSabre. However, the rear air suspension on some LeSabre models is a known failure point and is often converted to a standard coil spring setup. 🎬 Learn how to fix common LeSabre air suspension issues. This guide focuses on the front suspension bellows.
Choosing the Right Aftermarket Bellows
For a vehicle of this age, aftermarket parts are the most common and cost-effective choice. The original OEM bellows are likely discontinued or hard to find. When shopping for a replacement, you'll primarily find two tiers of brands.
Brand Tiers
- Premium Aftermarket (KYB): KYB is a well-respected brand that often manufactures original equipment for car companies. Their strut bellows are designed to meet or exceed OEM quality and are made from durable materials to protect the strut effectively. Choosing a brand like KYB is a good investment to protect your struts for the long term.
- Standard / Economy (Skyward): Brands like Skyward offer a more budget-friendly option. While they meet the basic requirements for the part, the material quality and longevity may not match that of a premium brand. This can be a reasonable choice for a vehicle with high mileage or if budget is the primary concern.
Pro Tip: Replace in Pairs
It is highly recommended to replace the strut bellows whenever you replace the struts themselves. Since the labor to access the bellows is the same as replacing the entire strut, doing both at the same time is cost-effective. If one bellow has failed due to age, the one on the other side is likely in similar condition. Replacing them in pairs ensures even protection for your new or existing struts.
Aftermarket Suspension Strut Bellows Cost (2001-2005 Buick LeSabre)
| Part Type | Price Range |
|---|---|
| New Aftermarket Bellows (KYB, Skyward) | $19.97 - $31.08 |
| Shop Labor to Install | $150 - $300 |
Note: Labor costs can vary significantly by location. The labor to replace just the bellows is nearly identical to replacing the entire strut assembly, as the strut must be removed and disassembled.
Frequently Asked Questions
Do I need to replace the whole strut if only the bellow is torn?
Not necessarily. If you catch the torn bellow early and the strut is not yet leaking or showing signs of failure, you can replace just the bellow. However, the process requires removing the entire strut assembly from the car and disassembling it with a spring compressor, which is a significant amount of labor.
Is replacing a strut bellow a DIY job?
This is an advanced DIY job. It requires removing the strut assembly and using a special tool called a spring compressor to safely remove the coil spring. This tool can be dangerous if not used correctly. For most owners, professional installation is recommended.

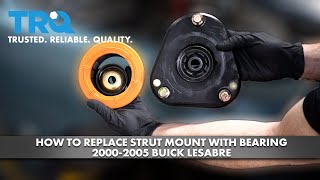

🎬 See the full process for replacing a LeSabre strut assembly.What is the difference between a strut bellow and a bump stop?
The bellow is the flexible boot that covers the strut rod. The bump stop is a piece of dense foam or rubber, often located inside the bellow, that prevents the suspension from bottoming out during hard impacts. Most aftermarket bellow kits include a new bump stop.
Will a new strut bellow fix a clunking noise?
No. A new bellow will not fix an existing noise. Clunking noises are typically caused by worn-out struts, strut mounts, or other suspension components like stabilizer bar bushings, which are a common issue on this LeSabre platform. 🎬 Watch a video on common 8th generation LeSabre problems. The bellow's job is purely protective.
Helpful Videos
Technical Specifications
Location: Front Driver or Passenger Side. Material: Rubber or Thermoplastic. Includes: Bellow (Dust Boot) and usually a Jounce Bumper (Bump Stop).
