A Guide to 2001-2005 Cadillac DeVille Suspension Ball Joints
Stop the clunking noises and tighten up your DeVille's steering by choosing the right replacement ball joint.
- A clunking noise over bumps is the most common symptom of a failing ball joint on a DeVille.
- Do not drive with a significantly worn ball joint; complete failure can lead to a loss of steering control.
- For best results, choose premium aftermarket brands like ACDelco Gold, Moog, TRW, or Delphi.
- Always replace ball joints in pairs and perform a wheel alignment afterward to prevent tire wear.
Is Your Cadillac DeVille Making Clunking Noises?
A loud clunk or knock from the front suspension, especially when going over bumps or making sharp, slow turns, is a classic sign of a worn-out ball joint. Your DeVille is designed for a quiet ride, so these noises are often the first and most obvious symptom. You might also feel it through the floorboard. Other signs include sloppy or loose-feeling steering, a tendency for the car to wander, or uneven wear on the inside or outside edges of your front tires.
Safety First: Don't Ignore a Bad Ball Joint
A worn ball joint is not just noisy; it's a serious safety issue. If a ball joint fails completely, the suspension can separate from the wheel, leading to a total loss of steering control. If you suspect your ball joints are bad, it is critical to have them inspected and replaced as soon as possible.
Choosing the Right Aftermarket Ball Joint for Your DeVille
When replacing ball joints on your DeVille, you have several aftermarket brands to choose from. They generally fall into three categories based on quality, durability, and price. Original Equipment (OE) parts from a dealer are an option, but quality aftermarket parts can offer similar or even improved performance, often at a better price.
Premium Aftermarket Brands
These brands are often OEM suppliers or are known for engineering durable parts that meet or exceed original specifications. They are the best choice for owners who want the longest life and best performance, similar to the original factory parts.
- ACDelco Gold (Professional): This is GM's top-tier aftermarket line. These parts are considered a high-quality replacement designed to meet original performance standards. Be careful not to confuse them with the lower-tier "Silver" line.

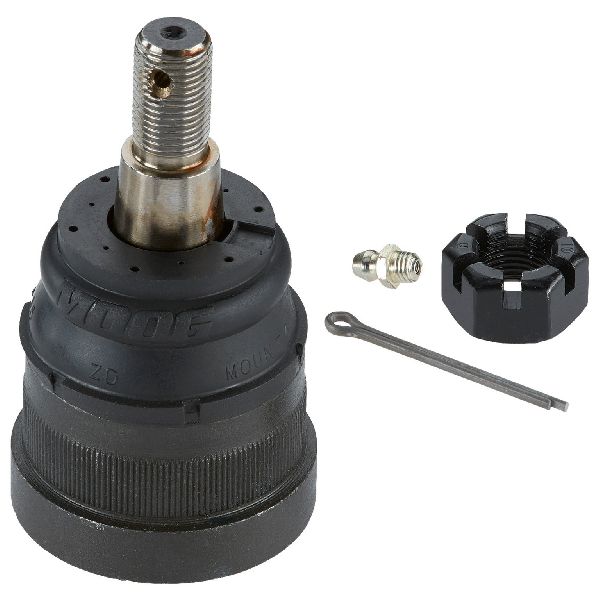

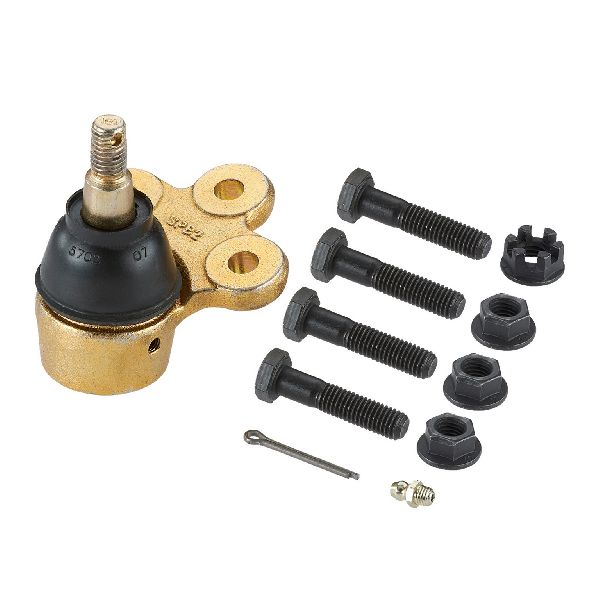

- Moog: Moog's "Problem Solver" series is well-regarded and often includes features like grease fittings for longer life and improved designs. While some users in forums mention concerns about quality consistency in recent years, they remain a top choice for many mechanics.

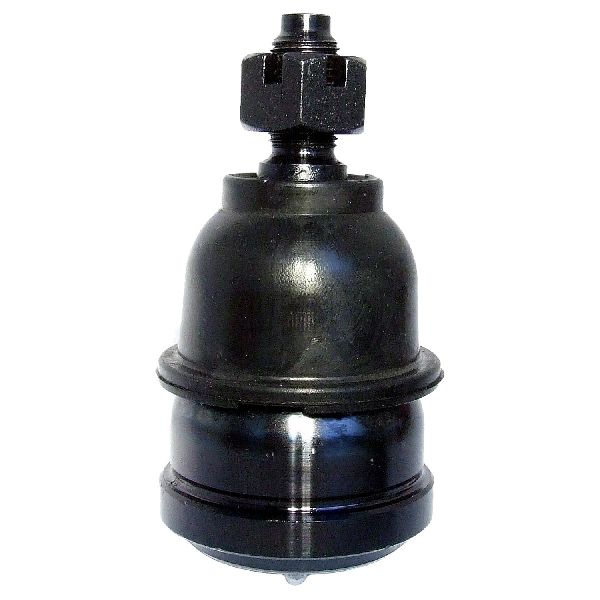

- TRW & Delphi: Both TRW and Delphi are major OEM suppliers to many car manufacturers. Choosing parts from these brands is often like getting an OE-quality part without the dealer markup. They are known for reliability and a precise fit.
Quality Standard Aftermarket Brands
These brands offer a good balance of quality and cost. They are a solid choice for daily driving and will restore the vehicle's original handling and safety.

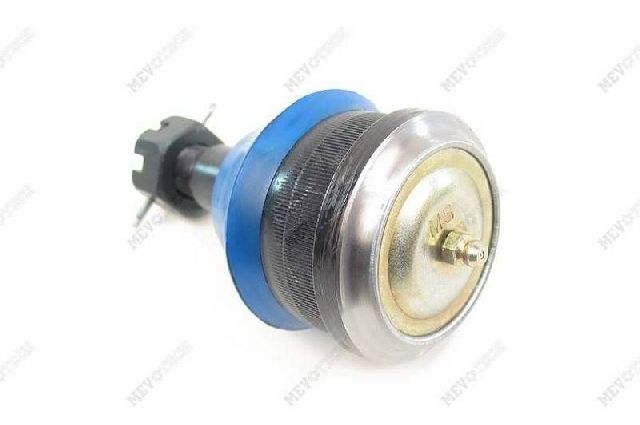

- Mevotech (Supreme or TTX): Mevotech offers different product lines. Their "Supreme" and "TTX" lines are built to be more durable than their standard offerings and compete with premium brands.
- ACDelco Silver (Advantage): This is ACDelco's mid-grade offering. It provides a more budget-friendly option than the Gold line while still carrying the ACDelco name.
Economy Brands
These brands are the most affordable and can be a good option if the budget is the primary concern. They meet basic safety requirements but may not have the same longevity or refinement as premium options.
- Dorman: Dorman is known for providing a wide range of affordable replacement parts.
- QuickSteer: This is another brand focused on providing cost-effective suspension solutions.
Pro Tip: Replace in Pairs and Get an Alignment
Suspension components wear out at similar rates. If the ball joint on one side of your DeVille has failed, the other side is likely not far behind. It is always recommended to replace lower ball joints in pairs. After the replacement, a four-wheel alignment is essential to ensure proper handling and prevent premature tire wear.
Cost of Replacing a 2001-2005 DeVille Ball Joint
The cost can vary based on your location and the brand of part you choose. Below is a general estimate.
| Service | Estimated Cost |
|---|---|
| Aftermarket Ball Joint Part | $25 - $85 (per side) |
| Shop Labor & Installation | $180 - $265 (per side) |
| Total Professional Replacement | $205 - $350 (per side) |
Frequently Asked Questions
Do I need special tools to replace a DeVille ball joint?
Yes, this job typically requires a ball joint press (or a specialized C-clamp tool), a pickle fork or ball joint separator, a torque wrench, and a good set of sockets and wrenches. While it is possible for an experienced DIY mechanic, it can be a difficult job without the right equipment.
Should I replace the whole control arm or just the ball joint?
On the 2001-2005 DeVille, the lower ball joint is pressed into the control arm. Many mechanics and DIYers choose to replace the entire control arm assembly, which comes with a new ball joint and new bushings pre-installed. This can save time and hassle, and it also renews the crucial control arm bushings, which may also be worn.
Are there any recalls for the 2001-2005 DeVille suspension?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any recalls specifically for the ball joints or suspension on the 2001-2005 Cadillac DeVille.
What are the symptoms of a bad ball joint again?
The most common signs are clunking or knocking sounds from the front end over bumps, loose or wandering steering, vibrations in the steering wheel, and uneven tire wear.
Technical Specifications
OEM Part Numbers: 22064872 22064873 19299843 22064765

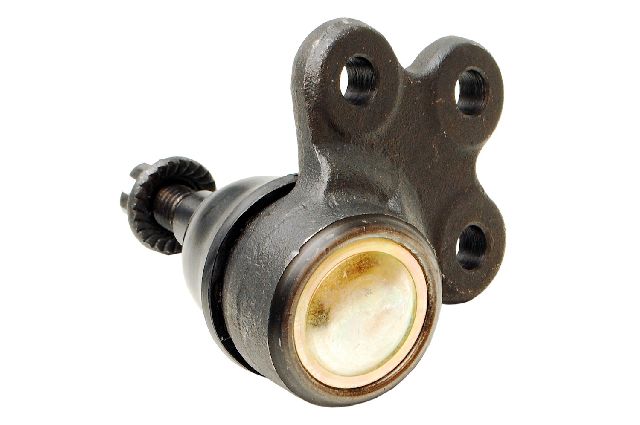

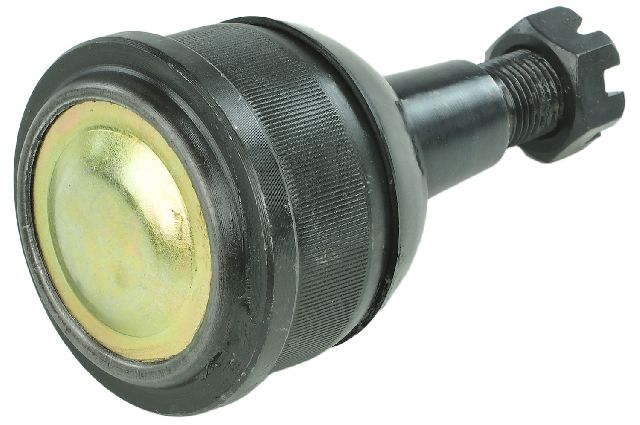

The 2001-2005 Cadillac DeVille uses a press-in style lower ball joint. The vehicle has a MacPherson strut front suspension, meaning it only has a lower ball joint, as the strut assembly serves as the upper pivot.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
