Guide to the 2001-2005 Corvette C5 HVAC Blower Motor
If your Corvette's cabin fan is noisy or has quit, this guide explains what you need to know before you buy a new part.
- A noisy fan is the first sign of a failing blower motor; don't ignore it.
- For cars with automatic climate control, always replace the Blower Motor Control Module along with the motor.
- The replacement is a DIY-friendly job, but access is tight under the passenger dash.
- Clean out any debris like leaves or animal nests from the housing before installing the new motor.
Is Your Corvette's Fan Making Noise or Not Working?
A failing HVAC blower motor is a common issue as C5 Corvettes get older. The first sign is often a noise, like a squeal, a hum, or a ticking sound coming from the passenger side of the dash. This can be caused by worn-out bearings in the motor or debris like leaves that have gotten into the fan cage. In some cases, the fan may stop working entirely or only work on certain speeds.
Don't Forget the Blower Motor Control Module
For C5 Corvettes with automatic dual-zone climate control, the fan speed isn't controlled by a simple resistor, but by an electronic Blower Motor Control Module. If your fan only works on high, stops and starts on its own, or doesn't work at all even though the display shows it should be on, this module is a likely culprit. Since you have to remove the blower motor to get to the module, it's highly recommended to replace both parts at the same time 🎬 Watch this step-by-step guide for replacing the motor and controller. to avoid doing the job twice.
Choosing the Right Aftermarket Blower Motor
When replacing your C5's blower motor, you have options outside of the dealership. Aftermarket parts can offer the same performance as the original part for less money. Here's a look at the available brands:
- Continental: Often considered a top-tier aftermarket brand, Continental parts are known for their quality and are sometimes original equipment (OE) suppliers for car manufacturers. They are designed to match the fit and performance of the factory part.
- Four Seasons: A very well-known name in aftermarket climate control parts, Four Seasons has been producing components for decades. They are a standard, reliable choice for a replacement blower motor.

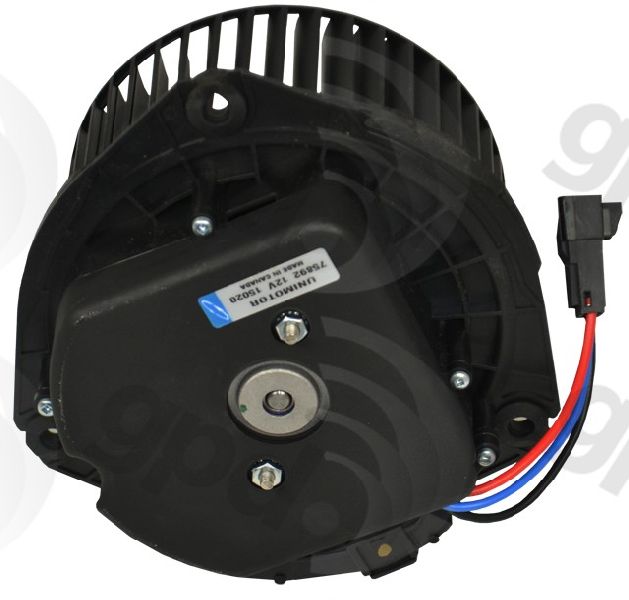

- Global Parts (GPD): GPD specializes in climate control components and is a solid choice for aftermarket parts. They manufacture parts designed to meet or exceed original specifications.
Pro Tip: Check for Debris
C5 Corvettes that sit for long periods are known to have issues with mice building nests inside the blower motor housing. When you remove the old motor, be sure to inspect the inside of the HVAC case for nests, leaves, or other debris and clean it out thoroughly. This debris can cause the new motor to fail prematurely.
Cost of Replacing a C5 Corvette Blower Motor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $175 - $300+ |
| New Aftermarket | $72 - $244 |
| Used OEM | $80 - $100 |
| Shop Labor | $120 - $250 |
Frequently Asked Questions
Can I replace the C5 blower motor myself?
Yes, this is a DIY-feasible job for someone with basic mechanical skills. The blower motor is located under the passenger side dashboard and is held in by a few screws. The hardest part is often working in the tight space and disconnecting the electrical plug, which can be stubborn. You will need a 5.5mm socket for the mounting screws.
🎬 See how to access and remove the blower motor yourself.Are there any recalls for the C5 Corvette blower motor?
No, there are no specific recalls for the HVAC blower motor on the 2001-2005 Chevrolet Corvette. Searches on the National Highway Traffic Safety Administration (NHTSA) website show recalls for other issues on the C5, but none related to the blower motor itself.
What is the difference between the blower motor and the control module/resistor?
The blower motor is the fan that moves the air. The control module (on automatic climate systems) or resistor (on manual systems) is the electrical part that controls the fan's speed. A bad motor usually makes noise or seizes, while a bad module/resistor often causes the fan to only work on high speed or not at all.
Why does my fan only work on the highest speed?
This is a classic symptom of a failed blower motor control module or resistor. The highest fan speed setting often bypasses the resistor/module and sends full battery voltage directly to the motor. When the other, lower speeds stop working, it's almost always the fault of the speed controller and not the motor itself.
🎬 Learn more about identifying and testing a faulty fan speed controller.Helpful Videos
Technical Specifications
OEM Part Numbers: 89019320
Fits 2001-2005 Chevrolet Corvette with either manual or automatic (dual-zone) climate control. The motor itself is the same, but automatic systems also use a separate control module.
