Ford Escape Ignition Lock Cylinder Guide for 2001-2005 Models
If you have to jiggle your key to start your 2001-2005 Escape, this guide is for you.
- The 'key jiggle' problem is almost always caused by the ignition lock HOUSING, not the lock cylinder itself.
- Replacing the housing allows you to reuse your original keys and avoids the need for expensive key reprogramming.
- This is a simple DIY repair that usually takes less than an hour with basic hand tools.
- Ignoring the problem will eventually lead to a no-start situation where you will be stranded.
Is Your Escape Hard to Start? Understanding the Real Problem
If you own a first-generation Ford Escape, you might be familiar with ignition problems. A very common issue is having to jiggle the key, push it in hard, or turn it several times to get the engine to crank. While many assume the lock cylinder (the part the key goes into) is bad, the problem is often the mechanical ignition lock housing that it sits in. Over many years of use, the internal parts of this housing wear down. This wear creates slack and prevents the key's turning motion from properly activating the electrical ignition switch on the other side of the steering column.
Symptoms of a Failing Ignition Lock Cylinder or Housing
- Key is hard to turn: You feel resistance, or the key feels like it's binding when you try to start the engine.
- You have to 'jiggle the key': The most common symptom is needing to wiggle or push the key in while turning it to get the engine to crank.
- Key gets stuck in the ignition: The key may not return to the 'off' position, preventing you from removing it. This can also be caused by the shifter not fully registering in Park.
- Engine won't crank at all: Eventually, the wear becomes so severe that no amount of wiggling will start the vehicle, leaving you stranded.
Choosing the Right Aftermarket Part: Cylinder vs. Housing
Before buying a part, it's crucial to know what you need. For the 2001-2005 Escape, you have two main replacement paths:
Pro Tip: If your symptoms involve wiggling or pushing the key to start, you almost certainly need the Ignition Lock Housing, not the lock cylinder. Many owners make the mistake of replacing only the cylinder and are frustrated when the problem doesn't go away.

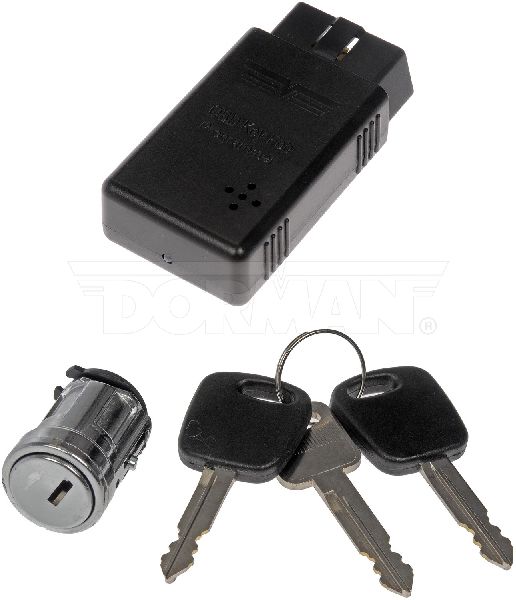

- Ignition Lock Cylinder Kit: This replaces only the keyed part your key slides into. These kits come with new keys. Because your Escape has a PATS (Passive Anti-Theft System), these new keys must be programmed to your vehicle's computer, or the engine will not start. Some aftermarket kits from brands like Dorman include a special tool to help you do this yourself. 🎬 See how to use the Dorman key programming tool.
- Ignition Lock Housing: This is the mechanical assembly that holds the lock cylinder. When you replace the housing, you transfer your original lock cylinder into the new part. This is a huge advantage because you get to keep using your original keys, and no programming is required.
Aftermarket Brand Quality
When shopping for a replacement, brand quality matters. Here’s an honest look at your options:
- Motorcraft: This is Ford's OEM brand. It's the benchmark for fit and quality, but it's also the most expensive option. If you want the exact original part, Motorcraft is the way to go.
- Standard Ignition (SMP): Standard Motor Products is a top-tier aftermarket manufacturer known for making parts that meet or exceed OEM standards. They are a trusted choice for professional mechanics and a reliable alternative to Motorcraft.
- Dorman: Dorman is a very popular aftermarket brand that offers a direct replacement for the Escape. They are known for creating kits that solve common problems. For this part, they offer both the lock cylinder with a programming tool and the separate housing. While generally reliable, some users have reported mixed results with the key programming process.
Common Ordering Mistake
Do not buy an ignition lock cylinder kit if your problem is the common 'key jiggle' issue. Buy the ignition lock housing instead to avoid the hassle of key programming.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Dorman, Standard) | $93.62 - $138.45 |
| New OEM (Motorcraft) | $100 - $200 |
| Shop Labor | $100 - $250 |
Known Issues, Recalls, or TSBs
While the ignition housing wear is a widely known problem for the 2001-2005 Ford Escape, there are no official recalls from the National Highway Traffic Safety Administration (NHTSA) for this specific issue. Any problems you experience are typically considered the result of normal wear and tear over many years and thousands of key cycles. Recalls for ignition-related issues on Ford Escapes apply to much newer model years and do not affect this generation.
Frequently Asked Questions (FAQ)
Can I replace the ignition lock cylinder myself?
Yes, this is a very DIY-friendly job. The lock cylinder can be removed by taking off the plastic steering column shrouds (usually held by a few screws), turning the key to the 'ON' or 'Accessory' position, and pressing a small release pin on the bottom of the lock housing with a small screwdriver or punch. The cylinder then slides right out. 🎬 Watch a quick demonstration of the cylinder removal process. The entire job typically takes less than an hour.
Do I need to reprogram my keys after replacement?
It depends. If you replace the ignition lock cylinder, you will get new keys that MUST be programmed. If you replace the more commonly failed ignition lock housing, you will reuse your original lock cylinder and keys, so no programming is needed.
My key is stuck. Is it the lock cylinder?
It could be, but first check two other things. A key stuck in the ignition is often caused by the vehicle not recognizing that it is in 'Park' due to a stretched shifter cable or a bad sensor. It can also be caused by a very worn-out key that no longer engages the tumblers correctly. If neither of these is the issue, a severely worn cylinder or housing is the likely cause.
What happens if I don't fix it?
The problem will only get worse. What starts as a minor annoyance will eventually become a major one, and the vehicle will fail to start at all. This will likely happen at the most inconvenient time, leaving you stranded.
Helpful Videos
Technical Specifications
OEM Part Numbers: BL8Z-3511-A (Ignition Lock Housing)
The ignition system in the 2001-2005 Ford Escape uses a Passive Anti-Theft System (PATS). Any new keys must be electronically programmed to the vehicle's computer. The ignition lock cylinder is a separate component from the ignition lock housing and the electrical ignition switch.
