2001-2005 Kia Optima Engine Oil Pressure Switch: Symptoms and Replacement
A flickering oil light on your Optima could be a simple fix—here’s what you need to know about replacing the oil pressure switch.
- Always check your oil level first if the warning light comes on.
- A leaking switch is a definite sign it needs to be replaced.
- For this model, aftermarket switches from reputable brands are a cost-effective and reliable repair.
- The replacement is a simple DIY job that requires a 24mm or 15/16" deep socket.
Is Your Optima's Oil Light On?
The most common sign of a problem with your oil pressure switch is the red oil warning light on your instrument cluster. You might see it flicker at idle, stay on constantly, or fail to light up briefly when you first turn the key. Another clear symptom is an oil leak coming directly from the switch itself. Over time, the internal seals can fail, allowing oil to seep out of the plastic connector, which is a sure sign of failure.
Don't Ignore the Oil Light
Never assume a flickering or illuminated oil light is just a bad sensor. Your first step should always be to safely pull over, turn off the engine, and check your oil level. Driving with low oil pressure can destroy your engine.

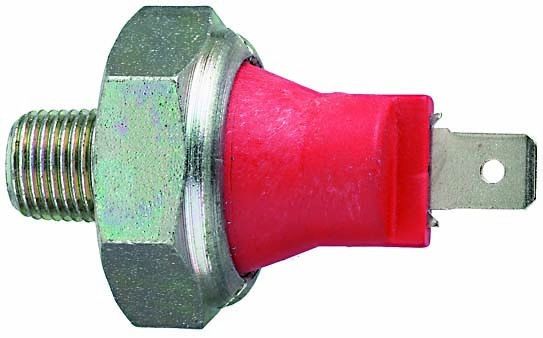

Choosing the Right Aftermarket Switch
For a straightforward part like an oil pressure switch, a quality aftermarket replacement is a reliable and budget-friendly choice. The price difference between aftermarket and OEM is often very small for this part. Here’s a look at the available brands:
- Standard Ignition (SMP): A well-known brand that performs 100% testing on its switches. They are a common choice for professional technicians.
- Hella: Often considered an OEM-quality supplier, Hella parts are designed for durability and a direct fit.
- Holstein: This brand focuses on providing OE-quality sensors at a competitive price and backs them with a 3-year/36,000-mile warranty.
- Facet: A long-standing European manufacturer that produces a wide range of sensors and claims quality equal to original parts.
- Rostra Powertrain: Another option available in the aftermarket, providing an alternative for this repair.
Pro Tip: A common failure is oil leaking through the switch. When you replace it, take a moment to clean the electrical connector with an appropriate cleaner to ensure a good connection.
Known Issues for the 2001-2005 Kia Optima
While newer Kia models have had recalls and warranty extensions related to oil pressure switches, extensive searches of the NHTSA database and technical service bulletins (TSBs) found no specific recalls or TSBs for the 2001-2005 Kia Optima for this part. Failures on these first-generation models are typically due to normal wear and age rather than a specific manufacturing defect.
Frequently Asked Questions
Where is the oil pressure switch located on a 2001-2005 Kia Optima?
The switch is screwed into the engine block. For both the 2.4L 4-cylinder and 2.7L V6 engines, it is typically located near the oil filter. You will need to access it from underneath the vehicle, and may need to remove a plastic splash shield and a small metal bracket to get to it.
Can I replace this part myself?
Yes, this is a DIY-friendly repair for those with basic tools. The process involves safely raising and supporting the vehicle, removing the splash shield, unplugging the electrical connector, and using a 24mm (or 15/16") deep socket to unscrew the old switch. Installation is the reverse of removal.
What happens if I ignore a bad oil pressure switch?
Ignoring a bad switch is risky. If it's failing to warn you of a real low-pressure situation, you could end up with catastrophic engine damage. If it's leaking, you will slowly lose engine oil. If it's giving false warnings, you lose the ability to know if a real problem occurs.
Does the oil light automatically mean my engine is bad?
No. The light is a warning about oil pressure, not a diagnosis of the engine's health. The cause could be a low oil level, a failing oil pump, or simply a bad sensor. Always check the oil level first, and if the level is good, have the pressure tested to determine the root cause.
Technical Specifications
OEM Part Numbers: 94750-37100 94750-37000 94750-21030
Thread Size: M12x1.5, Socket Size: 24mm, Connector: 1-Pin
