Land Rover Discovery Ignition Coil Guide (2001-2005)
Misfires and rough running in your Discovery II could point to a bad ignition coil pack.
- The ignition coils are extremely difficult to access, located at the back of the engine against the firewall, requiring removal of the intake manifold.
- Due to the high labor involved, it is strongly recommended to replace both coil packs, spark plugs, and plug wires at the same time.
- A flashing check engine light indicates a severe misfire; pull over immediately to prevent expensive catalytic converter damage.
- Choosing a premium brand like Bosch or Delphi is a wise investment to avoid repeating this labor-intensive job.
Is Your Discovery Running Rough? It Could Be the Ignition Coils
If your Land Rover Discovery is experiencing symptoms like a shaky idle, hesitation when you accelerate, or a flashing check engine light, a failing ignition coil pack could be the culprit. These coils work hard under hot conditions and eventually wear out. When one fails, it can make your truck difficult to drive and can even lead to damage to other components like the catalytic converters if ignored.
A Notoriously Difficult Repair
Be aware: replacing the ignition coils on a 2001-2005 Discovery II is a very involved job. The two coil packs are mounted on a bracket at the very back of the engine, tucked between the intake manifold and the firewall. Access is extremely limited. To replace them, the upper intake manifold must be removed, which involves disconnecting numerous hoses, sensors, and cables. This is not a simple bolt-off, bolt-on repair and is considered difficult for a DIY mechanic.
🎬 Watch this complete walkthrough for replacing coils, wires, and plugs.Choosing the Right Aftermarket Ignition Coil
When it's time to replace your coils, you have several options. The original parts were often made by Bosch. Choosing a quality aftermarket brand is critical, especially given the high labor cost or time investment for the replacement. You don't want to do this job twice.
Brand Quality Tiers

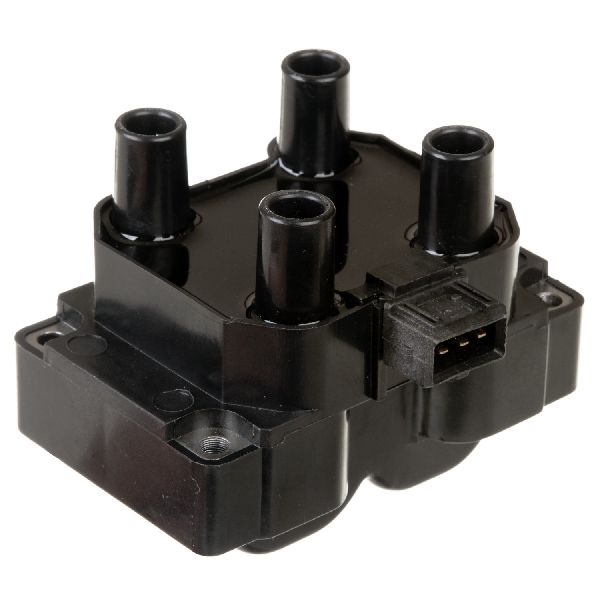

- OEM & Premium Aftermarket (Bosch, Delphi): These brands are known for meeting or exceeding original factory specifications. They are a top choice for reliability and performance, which is important for a part that is so difficult to access. If your budget allows, this is the recommended tier.

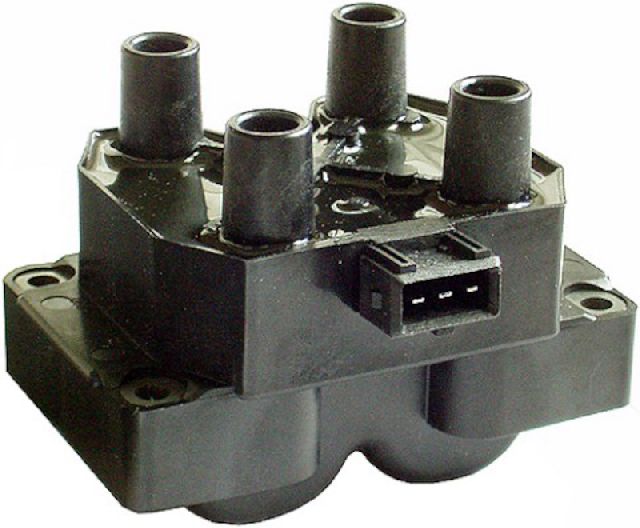

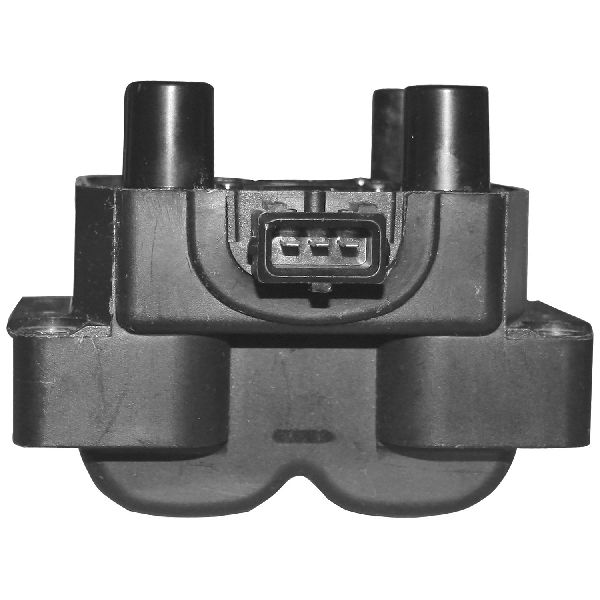

- Quality Aftermarket (Hella, Hitachi, Standard Ignition, Spectra): These are reputable brands that offer a good balance of quality and price. They are a solid choice for owners looking for a reliable part without the premium price tag of an OEM-branded part.
- Budget-Friendly (Global Parts, Walker Products): These brands can provide a more affordable solution. While they may meet basic requirements, their long-term durability might not match that of the premium brands. Given the labor-intensive nature of this repair, consider the potential risk of premature failure.
Pro Tip: Replace in Pairs and Add Wires
Since the intake manifold has to be removed to access the coils, it is highly recommended to replace both coil packs at the same time, even if only one has failed. The labor is the same. This is also the perfect time to replace your spark plug wires and spark plugs, as they are all part of the same system and require the same level of disassembly to access.
🎬 Watch: Expert guide to replacing spark plugs and ignition wires.Cost of Replacing Discovery Ignition Coils
The cost can vary significantly based on who does the work. The parts themselves are relatively inexpensive, but the labor to install them is high due to the difficult location.
| Item | Cost |
|---|---|
| New Aftermarket Ignition Coil (Each) | $21.83 - $88.62 |
| Estimated Shop Labor | $182 - $267 |
| Total Professional Replacement (Parts & Labor) | $349 - $540 |
Frequently Asked Questions
How many ignition coils does my 2001-2005 Discovery have?
Your V8 Discovery has two separate ignition coil packs. Each pack provides spark for four cylinders. They are mounted together on a single bracket at the back of the engine.
Can I do this replacement myself?
This is a challenging job for a DIY mechanic. It requires removing the upper intake manifold, which is a multi-step process involving many connections. It can take several hours and requires patience and organization. Many owners opt for professional installation due to the complexity.
What are the OBD-II codes for a bad ignition coil?
A general random misfire code is P0300. Misfire codes for specific cylinders (P0301 through P0308) are also very common. You may also see a P1300 code, which is also related to misfires. A flashing check engine light indicates a severe misfire that can damage your catalytic converters.
🎬 See how to diagnose and fix a Land Rover misfire.Are there any recalls for the ignition coils on my Discovery?
No, there are no specific recalls issued by the NHTSA for ignition coil failure on the 2001-2005 Land Rover Discovery. Any failures are considered part of normal wear and tear.
Helpful Videos
Technical Specifications
OEM Part Numbers: ERR6534 NEC100730 ERR6045
This vehicle uses two 4-tower waste spark coil packs mounted on a single bracket.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
