A Guide to the Spark Plug Wire Set for the 2001-2005 Lexus IS300
Keep your 2JZ-GE engine running smoothly by understanding its unique ignition system and choosing the right parts.
- The IS300 uses a set of only three spark plug wires for its six-cylinder engine due to its waste-spark ignition system.
- Denso and NGK are the most recommended brands for reliability and performance, with Denso being the original equipment manufacturer.
- It is highly advised to replace the six spark plugs at the same time as the wires to save on labor.
- Check for oil in the spark plug tubes, as this indicates a leaking valve cover gasket which should be repaired to protect the new wires.
Understanding Your IS300's Ignition System
Many owners are surprised to learn that their 2JZ-GE powered Lexus IS300 only has three spark plug wires, despite having six cylinders. The engine uses a hybrid system that is half coil-on-plug and half wired. Three coil packs are mounted directly on the spark plugs on one side of the engine. These coils are dual-output, firing the plug they sit on and also sending a spark through a wire to the companion cylinder on the opposite side. This is why you will only find spark plug wire sets sold in a pack of three for this vehicle.
Symptoms of Failing Spark Plug Wires
Worn-out spark plug wires can cause noticeable performance issues. If your wires are failing, you will likely experience one or more of the following symptoms:
- Rough Idle: The engine may shake or vibrate more than usual when the car is stopped.
- Engine Misfires: You may feel a hesitation or stumble during acceleration.
- Flashing Check Engine Light: This is a serious warning that indicates a misfire is happening. The most common codes are P0300 (random misfire) or P0301 through P0306 for specific cylinders. 🎬 Watch this video to see how these misfire codes are diagnosed.
- Reduced Fuel Economy: An inefficient spark means wasted fuel.
- Loss of Power: The car may feel sluggish and less responsive.
A Note on Oil Leaks
The valve cover gaskets on the 2JZ-GE engine are known to leak oil over time. This oil can seep into the spark plug tubes, soaking the wires and spark plugs, which can cause misfires. When replacing your wires, inspect the spark plug wells for oil. If oil is present, you should replace the valve cover gaskets to prevent the new wires from being damaged.
Choosing the Right Aftermarket Wire Set
You don't need to buy from the dealer to get a quality part. Several aftermarket brands offer excellent replacement wire sets for the IS300. They generally fall into these tiers:
Tier 1: OEM-Equivalent Brands

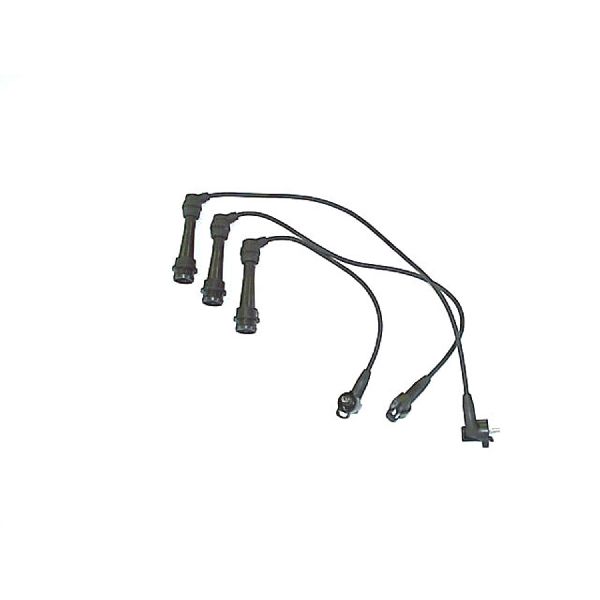

- Denso: Denso is a Toyota-owned company and the original equipment manufacturer (OEM) for many ignition parts on your Lexus. Choosing Denso is the closest you can get to buying the original part from the dealership. They are known for perfect fitment and reliable performance.

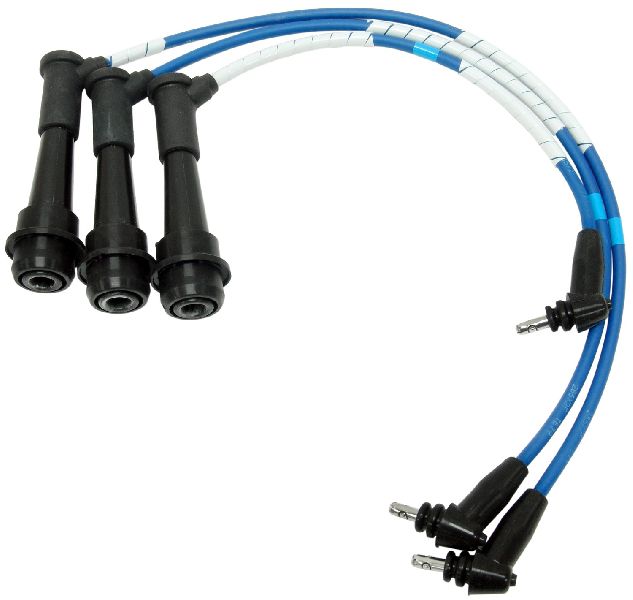

- NGK: NGK is another top-tier Japanese brand highly respected in the import community. Many IS300 owners use NGK wires and spark plugs with excellent, long-lasting results. You cannot go wrong with either Denso or NGK.
Tier 2: Quality Aftermarket Brands

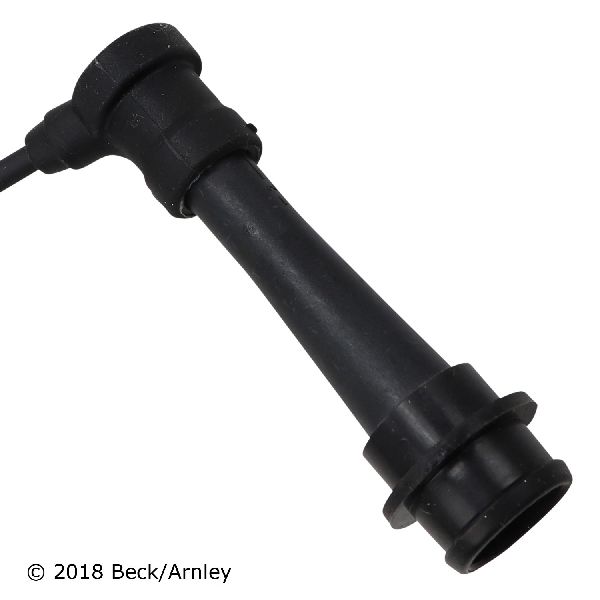

- Beck Arnley: This brand has a reputation for sourcing parts from various manufacturers, often including the original OEM supplier. A Beck Arnley box might even contain a Denso wire set. They are a trusted option for quality replacement parts.
Tier 3: Standard/Economy Brands

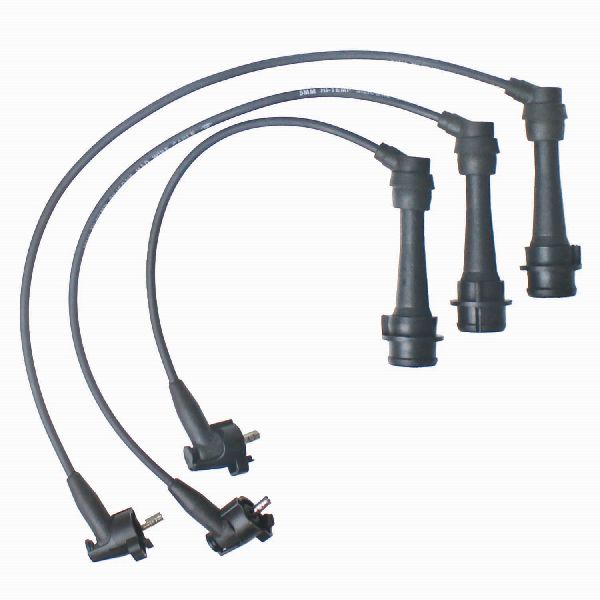

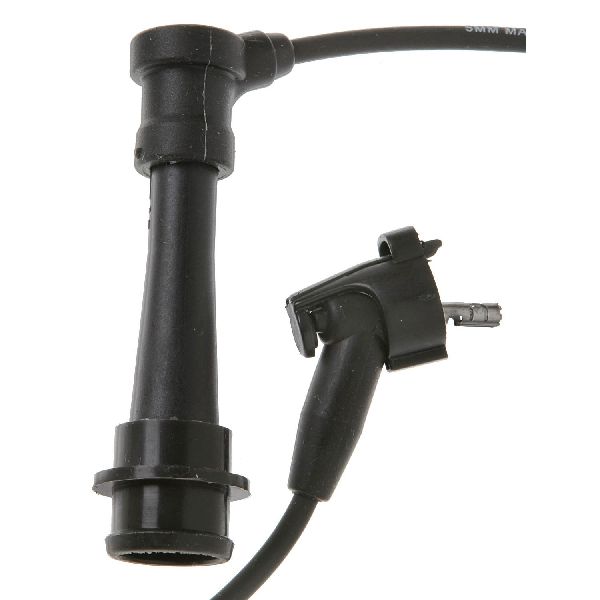

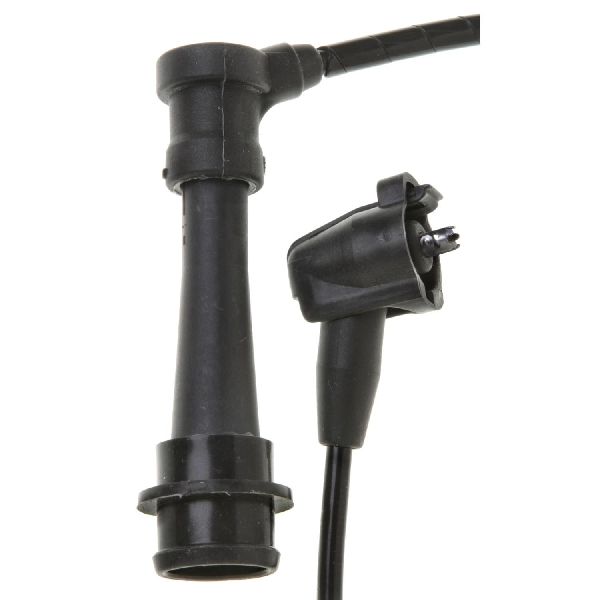

- Standard Wires (SMP), Walker Products: These brands provide a functional, budget-friendly alternative. While they may not have the same longevity or precise finish as Denso or NGK, they will get the job done for a daily driver on a budget.
Pro Tip: Replace Plugs and Wires Together
Since replacing the spark plug wires requires removing the throttle body and other components to gain access, it is highly recommended to replace your spark plugs at the same time. This saves you from having to do the same labor twice. For best results, use high-quality Iridium spark plugs from Denso or NGK.
Cost of Replacing Spark Plug Wires on a 2001-2005 Lexus IS300
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Wire Set | $54 - $120 |
| New OEM Wire Set | $110 - $140 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I need to replace my ignition coils at the same time?
Not necessarily. Unlike spark plugs and wires, ignition coils are not a routine maintenance item. They should only be replaced if they have failed. You can test them with a multimeter or swap a suspected bad coil with a known good one to see if the misfire code moves to the other cylinder.
Is this a difficult job to do myself?
For a DIY mechanic with basic tools, this job is very manageable. It typically takes 1-2 hours. The main challenge is removing the throttle body and some brackets to get enough clearance to access the rear-most coil and wire. Be careful with the plastic electrical connectors, as they can become brittle and break.
🎬 Follow this step-by-step guide to change your plugs and wires.Are more expensive "performance" wires worth it?
For a stock or lightly modified IS300, high-performance 8mm or 10mm wires are generally not necessary. OEM-equivalent wires from Denso or NGK are designed to handle the engine's requirements perfectly and will provide a reliable, strong spark.
Are there any recalls for the IS300 spark plug wires?
No. There have been no recalls or common Technical Service Bulletins (TSBs) issued by Lexus or the NHTSA for the spark plug wires on the 2001-2005 IS300.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90919-15565 90919-15566 90919-15567
Set of 3 ignition wires for a 2JZ-GE engine with a coil-on-plug waste-spark system.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
