Lexus IS300 Windshield Washer Pump Guide for 2001-2005 Models
Everything you need to know about diagnosing and replacing the washer pump on your first-generation IS300.
- A failed washer pump is a common issue and a critical safety repair.
- The pump is located behind the passenger-side front wheel well liner.
- Replacement is a simple, DIY-friendly job that takes about an hour.
- A quality aftermarket pump like Trico is a cost-effective and reliable alternative to the more expensive OEM part.
Is Your IS300 Washer Pump Failing?
A failing windshield washer pump on the 2001-2005 IS300 has very clear symptoms. If you activate the washers and nothing happens, the pump is a likely suspect. Before assuming the pump is bad, always check two things first: make sure the washer fluid reservoir is full and check the associated fuse. If both are good, the pump itself is the next part to investigate.

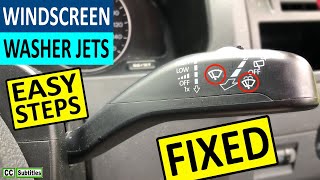

🎬 Watch: How to diagnose why your washer fluid isn't spraying.Common Symptoms
- No Sound, No Fluid: You pull the lever and hear nothing. The distinct humming sound of the pump motor is absent, and no fluid sprays out. This is the most common sign of a dead pump or an electrical issue.
- Motor Sound, But No Fluid: You can hear the pump motor running, but no fluid comes out. This could mean the pump's internal impeller has failed, or you have a major leak or blockage in the lines.
- Weak or Uneven Spray: The pump may be starting to fail if it can no longer generate enough pressure for a strong, even spray. This can also be caused by clogged nozzles, so be sure to check those as well. 🎬 See how to fix a weak or clogged washer system.
Safety First
An inoperable windshield washer is a safety hazard. Driving with an obscured windshield, especially in bad weather, significantly increases your risk of an accident. This repair should be prioritized.
Choosing a New Aftermarket Pump
For the IS300, the washer pump is a simple and straightforward part. While a genuine Lexus OEM part is available, a quality aftermarket pump offers excellent value and reliable performance for this specific component. Given that the original part has failed, an aftermarket replacement is a very common and sensible repair.
Trico is a well-known brand that specializes in wiper and washer systems. Their pumps are designed as direct-fit, OE-style replacements, meaning they are built to install easily without modification. For a part like this, a reputable aftermarket brand provides a cost-effective solution without sacrificing performance or longevity.
Pro Tip: Get a New Grommet
The washer pump pushes into a rubber grommet that seals it to the reservoir. These grommets can become hard and brittle over time. It's a good idea to replace the grommet when you replace the pump to prevent leaks. Many aftermarket pump kits include a new grommet.
Cost of Replacing Your IS300 Washer Pump
The cost to replace the washer pump is very reasonable, especially if you do it yourself. The part is inexpensive and the job requires basic tools.
| Part Type | Price Range |
|---|---|
| New Aftermarket (Trico) | $35.01 |
| New OEM | $90 - $125 |
| Shop Labor | $100 - $215 |
Frequently Asked Questions
Where is the washer pump located on the 2001-2005 IS300?
The windshield washer pump is attached to the bottom of the washer fluid reservoir. The reservoir is located behind the fender liner of the front passenger-side wheel well.
Can I replace the IS300 washer pump myself?
Yes, this is a very DIY-friendly job. You will need to safely jack up the front passenger side of the car, remove the wheel, and then remove some plastic clips and screws to pull back the fender liner. The pump pulls out of the reservoir and the new one pushes in. The whole process typically takes less than an hour.

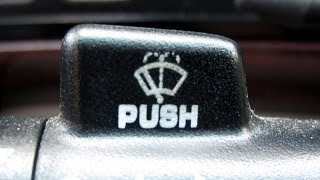

🎬 Watch this step-by-step guide to replacing your washer pump.Are there any recalls for the IS300 windshield washer pump?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA for the windshield washer pump on the 2001-2005 IS300. Failure is typically due to the age and normal wear of the part.
Do I need to drain the washer fluid to replace the pump?
Yes, the fluid will drain out when you pull the old pump from the reservoir. It's best to either run the reservoir as empty as possible before you start or have a bucket ready to catch the fluid when you remove the pump.
Helpful Videos

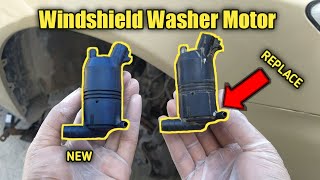

![How To Replace Windshield Washer Pump Motor [UNIVERSAL]](https://img.youtube.com/vi/W3oGGg42Jkc/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 85330-50030
