Solving Engine Stalling in Your 2001-2005 Mercedes-Benz C320 Crankshaft Sensor Guide
If your C320 suddenly stalls when hot and won't restart, the crankshaft position sensor is the most likely cause.
- The classic symptom is the engine stalling when hot and refusing to restart until it cools down.
- This is a critical safety issue; a failing sensor can cause your car to shut off in traffic.
- Only use a Bosch-branded replacement sensor. Cheaper alternatives are known to fail quickly, requiring you to repeat the difficult installation.
- The sensor is located in a very tight spot on the driver's side bell housing, making DIY replacement challenging.
Is Your C320 Stalling? Here's the Likely Culprit
A failing crankshaft position sensor is an extremely common issue for the 2001-2005 Mercedes-Benz C320 and its M112 V6 engine. The most classic symptom is when the engine runs fine when cold, but suddenly stalls after it has warmed up, like in traffic or after a highway drive. Often, the engine will crank but refuse to restart until it has cooled down for a period, sometimes up to two hours. This specific failure mode is a tell-tale sign that the sensor is failing under heat.
Symptoms of a Failing C320 Crankshaft Position Sensor
- Engine Stalls When Hot: The engine cuts out during operation after reaching normal temperature and will not restart until it cools.
- No-Start Condition: The engine cranks over but does not fire up, even when cold.
- Check Engine Light: The failure will trigger the check engine light and store a fault code, most commonly P0335. 🎬 See how these sensors function on M112 and M113 engines.
- Erratic Performance: You may experience engine misfires, rough idling, poor acceleration, and reduced fuel economy.
Safety Warning: Do Not Ignore Symptoms
A failing crankshaft position sensor can cause the engine to stall at any time, including at high speeds or in heavy traffic. This is a serious safety risk, as you will lose power steering and braking assistance. It is not recommended to drive the vehicle if you are experiencing these symptoms.
Choosing the Right Aftermarket Sensor: A Strong Recommendation
While many aftermarket brands are available, this is one part where the choice is critical to avoid repeat repairs. The replacement job is difficult due to the sensor's location, so using a reliable part is essential.

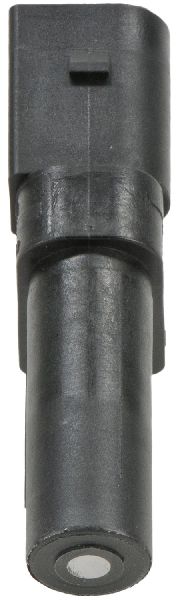

- Tier 1 (OEM Recommended): Bosch
Bosch is the Original Equipment Manufacturer (OEM) for this sensor. Forum members and mechanics overwhelmingly recommend using only the Bosch-branded sensor. It offers the best reliability and is often identical to the part you would get from a Mercedes-Benz dealer, but at a lower cost. Choosing Bosch ensures you are doing the job once and doing it right. 🎬 Watch a complete walkthrough of the replacement process.
- Tier 2 (Reputable Aftermarket): Hella, Vemo, NGK
Brands like Hella have a decent reputation in the European car community. However, some owners have reported mixed results, and it's not always clear if the part is the same quality as the original OEM part. If Bosch is unavailable, these are potential alternatives, but they carry a slightly higher risk than the OEM part. - Tier 3 (Budget Brands): Dorman, Walker, and others
While budget-friendly, cheaper aftermarket sensors have a high reported failure rate in Mercedes-Benz applications. Using a low-cost sensor might save you money initially, but it could fail quickly, forcing you to do the difficult replacement job all over again. For a critical sensor like this, saving a few dollars is generally not worth the risk of being stranded.
Pro Tip: Check the Breather Hoses
To access the crankshaft sensor, you will need to remove the Mass Airflow (MAF) sensor housing and associated breather tubes. These plastic and rubber hoses can become brittle with age. It is a good idea to inspect them during the job and plan on replacing them if they are old or cracked to prevent vacuum leaks.
Cost of Replacing the Crankshaft Position Sensor
| Part / Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $73 - $175 |
| New Aftermarket | $35 - $79 |
| Shop Labor | $220 - $322 |
| Total Professional Replacement | $293 - $497 |
Frequently Asked Questions (FAQ)
Is there a recall on the C320 crankshaft position sensor?
No, there are no specific recalls or technical service bulletins (TSBs) from Mercedes-Benz or the NHTSA for a failing crankshaft position sensor on the 2001-2005 C320. The issue is, however, an extremely common and widely known failure point among owners and mechanics.
How difficult is it to replace the sensor myself?
The replacement is mechanically simple (it's held by one E8 Torx bolt), but access is extremely difficult. The sensor is located on the back of the engine on the driver's side, buried against the firewall. You will need to work by feel and use a combination of long extensions, a universal swivel joint, and an E8 socket. Many DIYers find it frustrating. 🎬 Watch: This step-by-step guide offers helpful tips and tricks. If you are not comfortable working in tight spaces you can't see, it is best left to a professional.
What tools do I need for the replacement?
You will need basic hand tools to remove the engine covers and air intake, but the critical tool is an E8 external Torx socket. You will also need a ratchet with several long extensions and a universal swivel joint to reach the bolt. A small mirror and a good flashlight are also highly recommended to locate the sensor.
Can I just clean the old sensor?
No, cleaning the sensor will not fix the problem. The failure is typically internal, where the electronics inside the sensor break down when exposed to heat. Replacement is the only solution.
Helpful Videos
Technical Specifications
OEM Part Numbers: 003-153-28-28 003-153-27-28
Location: Driver's side of the transmission bell housing, at the rear of the engine. Retaining Bolt: E8 External Torx.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
