Pontiac Aztek Fuel Pump Assembly Guide for 2001-2005 Models
Solve your Aztek's starting and stalling problems by understanding its unique fuel system issues.
- Crucially, check the C305 electrical connector under the driver's side for corrosion before assuming the fuel pump has failed; this is a very common Aztek issue.
- Symptoms of a bad pump include the engine cranking but not starting, stalling, a whining noise from the gas tank, and an erratic fuel gauge.
- Replacement requires dropping the fuel tank, making it a difficult DIY job for beginners.
- For reliability, choose a top-tier aftermarket brand like Delphi or Bosch; budget brands have a higher risk of early failure.
Is Your Aztek's Fuel Pump Failing?
A bad fuel pump can leave you stranded. If your 2001-2005 Pontiac Aztek is having trouble, look for these common signs. 🎬 Watch: A guide to the 6 main symptoms of pump failure. The engine might crank but not start. It could stall while driving, especially when it's warm, and then refuse to restart for a while. You might also hear a whining or humming noise from the rear of the vehicle, near the gas tank. Other symptoms include a loss of power, engine sputtering at high speeds, and a sudden decrease in gas mileage.
A Critical Aztek-Specific Problem: The C305 Connector

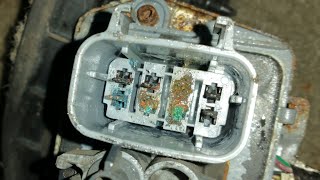

Before you buy a new fuel pump, you must check the C305 electrical connector. This is a well-known issue for the 2001-2005 Aztek. This connector is located under the vehicle, near the driver's seat area. It is supposed to be weatherproof, but the seal often fails, allowing moisture to get in and corrode the wires. This corrosion can interrupt the power going to the fuel pump, making it seem like the pump has failed when it's actually a wiring problem. Many Aztek owners have replaced their fuel pump only to discover the real issue was this corroded connector. Always inspect the C305 connector and the wiring harness on top of the fuel tank 🎬 Watch: How to inspect the harness plug and replace the pump. for corrosion or damage before replacing the entire module.
Choosing the Right Aftermarket Fuel Pump
When replacing the fuel pump module on your Aztek, you have several aftermarket options. The original AC Delco parts are expensive and can be hard to find. Aftermarket brands offer a more affordable solution, but quality can vary.

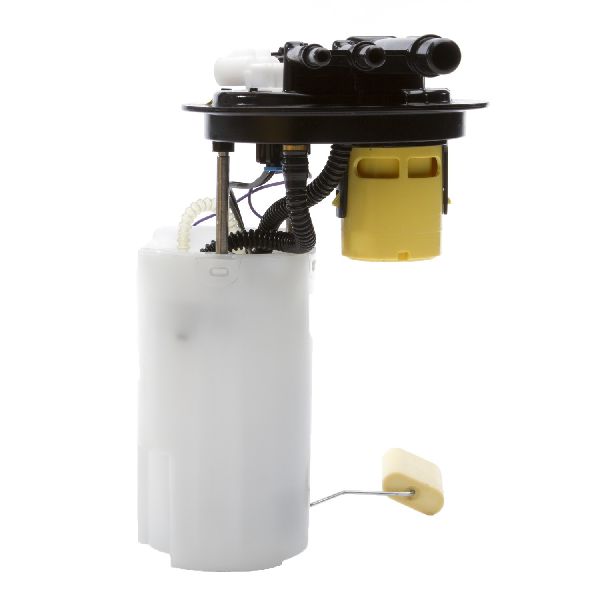

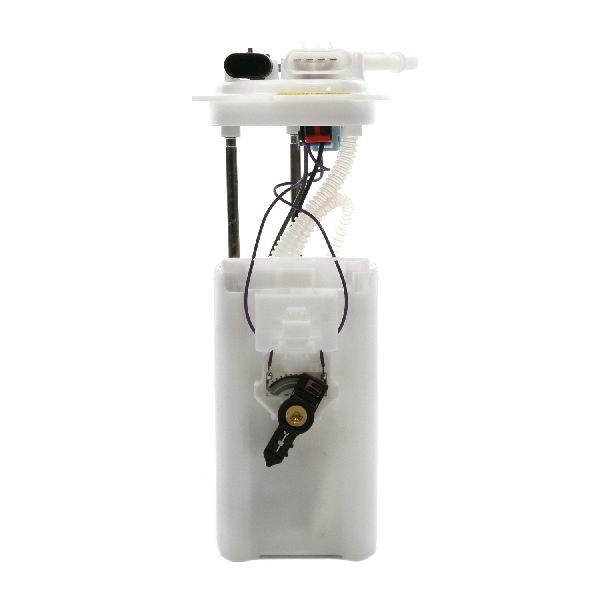

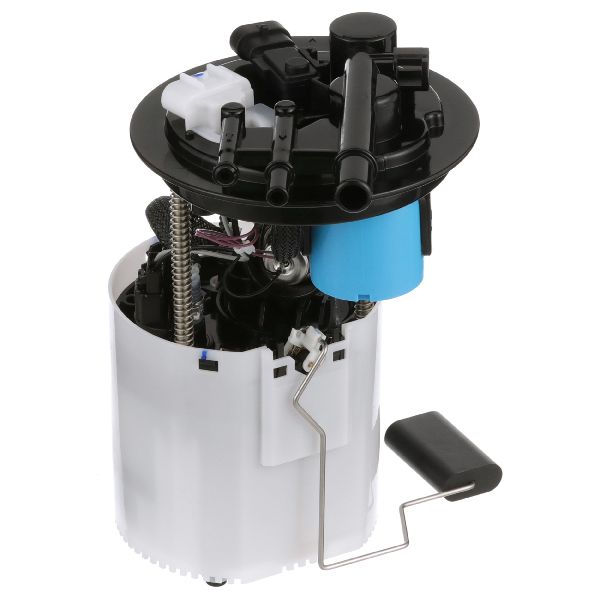

Tier 1: OEM-Equivalent Brands (Bosch, Delphi)
Brands like Bosch and Delphi are often original equipment manufacturers for many car brands, including General Motors. They are generally considered the most reliable aftermarket choice and are engineered to meet or exceed OEM specifications. While they are the most expensive aftermarket options, they offer the best chance for long-term durability, similar to the original part.

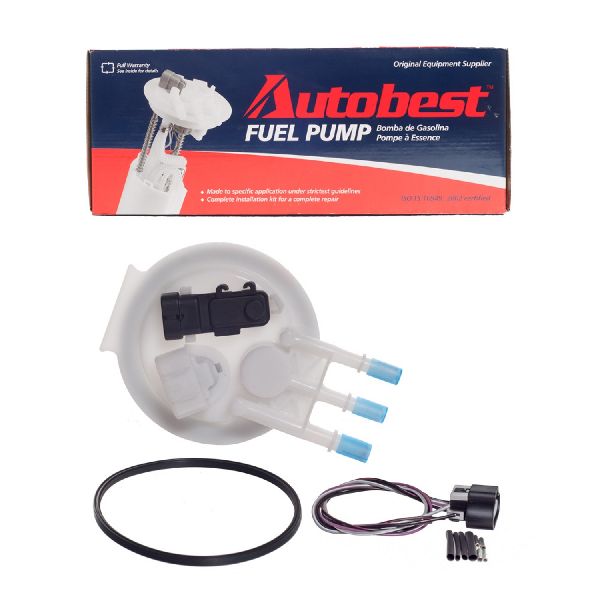

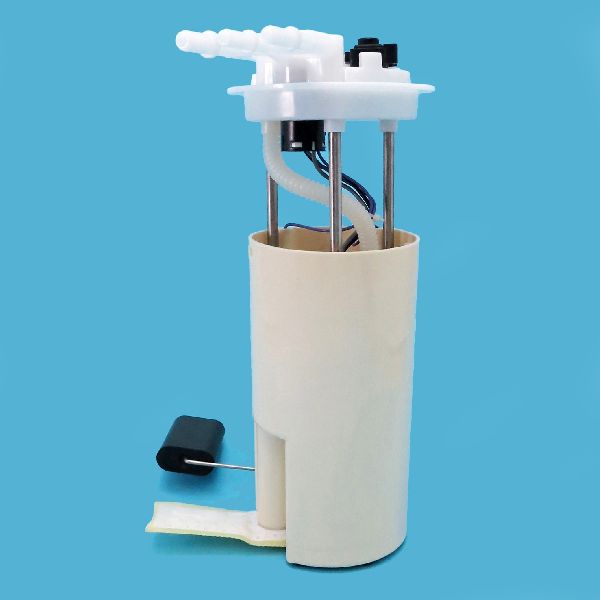

Tier 2: Value Brands (US Motor Works, AutoBest)
Brands like US Motor Works and AutoBest offer a middle ground between price and quality. Reviews for these brands are often mixed; some users have good experiences, while others report early failures or fitment issues. These can be a good choice if you're on a tighter budget, but be aware that they may not last as long as a top-tier brand.

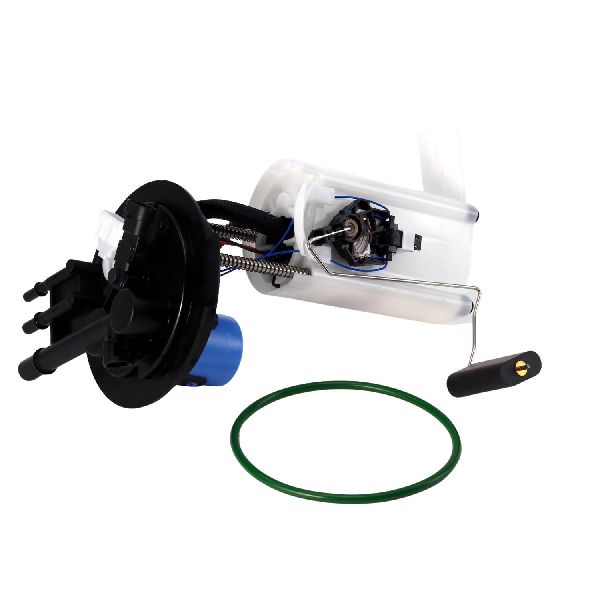

Tier 3: Economy Brands (GMB)
GMB is typically known as a budget-friendly or economy option. While they produce a wide range of parts, their fuel pumps are generally considered a lower-tier choice. They might get the job done for the lowest cost, but reviews sometimes mention lower build quality and a higher chance of premature failure.
Pro Tip: Replace the Whole Assembly
The fuel pump is part of a module that includes the sending unit (for the gas gauge) and strainer. It is highly recommended to replace the entire fuel pump module assembly rather than just the pump motor itself. The labor to access the pump is the same, and replacing the whole unit ensures all components are new and functioning correctly.
Known Issues, Recalls, and TSBs
- Recall 03V-454: A small number of 2004 Azteks were recalled for a potential fuel leak from a bad weld on the fuel tank inlet check valve.
- Recall 07E021000: This recall was for specific aftermarket Delphi fuel pressure regulators sold in 2007 that could leak. It does not apply to the original factory parts but could be relevant if a past repair used one of these faulty parts.
- C305 Connector Corrosion: As mentioned, this is the most common and important vehicle-specific issue. It is not a formal recall but is widely documented by owners in forums.
Frequently Asked Questions (FAQ)
Is replacing the Aztek fuel pump a DIY job?
This is a difficult job for a beginner. There is no access panel under the rear seat, so you must lower or completely remove the fuel tank to access the pump module. This requires safely lifting the vehicle, working with fuel lines, and handling a heavy, awkward gas tank. It is recommended for experienced DIYers only. Estimated time for a professional is 2-3 hours.
My gas gauge is inaccurate. Is that the fuel pump?
Yes, this is a very common symptom. The fuel level sending unit, which is part of the fuel pump module assembly, is responsible for the reading on your gas gauge. When it fails, the gauge may read empty when full, full when empty, or jump around randomly. Replacing the module assembly will fix this issue.
Do I have to drop the gas tank?
Yes. Unlike some vehicles, the 2001-2005 Pontiac Aztek does not have an access hatch inside the vehicle to get to the fuel pump. The only way to replace the module is by lowering the fuel tank from underneath 🎬 See this walkthrough on how to safely drop the fuel tank. the car.
What is the C305 connector and why should I check it first?
The C305 is a major electrical connector located under the car, near the driver's seat. It is known to fail from water intrusion, causing corrosion on the pins that power the fuel pump and sending unit. These symptoms perfectly mimic a failed fuel pump. Before spending money on a new pump and going through the labor of dropping the tank, you must inspect this connector. If it's green and corroded, repairing or bypassing the damaged wires may solve your problem for much less money and effort.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19121627 19180103 88965555
This is a complete fuel pump module assembly, which includes the electric pump, fuel sending unit, float, and strainer. It is located inside the fuel tank.
