A Guide to Replacing Spark Plug Wires on a 2001-2005 Pontiac Aztek
Misfires and poor performance on your Aztek could be worn-out spark plug wires; here's how to choose the right replacement set.
- The most difficult part of this job is replacing the three rear wires due to extremely limited access; tilting the engine is often required.
- For best results and reliability, choose OEM-quality brands like ACDelco, Delphi, or NGK.
- It is strongly recommended to replace the spark plugs at the same time as the wires to save on future labor.
- A flashing check engine light indicates a severe misfire that can damage the catalytic converter if not addressed promptly.
Is Your Aztek Running Rough? It Could Be the Spark Plug Wires
When spark plug wires start to fail, the symptoms are often very noticeable. The insulation breaks down from heat and age, allowing the electrical energy to leak out instead of reaching the spark plug. This can cause a range of problems from annoying to severe. If you're experiencing any of these issues, it's time to inspect your wires.
Symptoms of Failing Wires:
- Rough Idle: Your engine may shake or vibrate while stopped because one or more cylinders isn't firing correctly.
- Engine Misfires: You might feel a stumble, hesitation, or jerking during acceleration. A flashing Check Engine Light is a common sign of a misfire that needs immediate attention.
- Reduced Power & Fuel Economy: When the engine doesn't burn fuel efficiently, you'll notice your Aztek feels sluggish and you'll be visiting the gas station more often.
- Difficulty Starting: Weak or inconsistent spark makes it harder for the engine to turn over, especially in cold weather.
The Notorious Rear Wires on the 3.4L V6
The single biggest complaint about this job on the Pontiac Aztek is replacing the three spark plug wires on the rear cylinder bank (the one closest to the firewall). Access is extremely limited. Many owners and mechanics find it necessary to tilt the engine forward by removing the front motor mounts and using a ratchet strap to gain clearance. Some even remove the ignition coil pack bracket. Be prepared for a challenge; this is not a simple task for a beginner.
Choosing the Right Aftermarket Spark Plug Wires
The original wires on your Aztek were made by ACDelco. When shopping for aftermarket replacements, you'll find a range of quality and price. For a daily-driven vehicle, sticking with an OEM-quality brand is your most reliable choice.
Brand Quality Tiers
- OEM & Premium Aftermarket (Best): ACDelco and Delphi are top choices. ACDelco is the original equipment manufacturer, and Delphi was the parent company for many of GM's parts divisions, so their quality is considered equivalent. NGK is another highly respected brand known for excellent performance and durability in ignition components. These brands provide the best fit and longest service life.
- Quality Aftermarket (Better): Brands like Denso, Standard (SMP), and Walker Products offer a good balance of quality and value. They are reliable replacements that meet or exceed original specifications and are a solid choice for most owners.
- Economy & Performance (Good): Brands such as Prenco, Taylor Cable, and Granatelli fall into this category. Economy wires will get the job done at a lower price point, but may not have the same longevity as premium options. Performance-oriented wires from Taylor or Granatelli are typically designed for high-performance builds and are not necessary for a stock Aztek engine.
Pro Tip: Replace Plugs and Wires Together
It is highly recommended to replace your spark plugs at the same time you replace the wires. Since accessing the rear bank is so difficult, doing both jobs at once saves you from having to do the labor all over again. Old plugs can cause new wires to work harder, and old wires can't deliver the proper energy to new plugs.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Spark Plug Wire Set | $33.95 - $83.18 |
| Shop Labor | $150 - $300+ |
Note: Labor costs are an estimate and can vary significantly based on your location and the shop's hourly rate. The difficulty of accessing the rear wires is a major factor in the labor cost.
Frequently Asked Questions
Do I need special tools to change the wires?
You will need basic hand tools, but for the difficult rear wires, you may need a spark plug wire puller (hose pliers can also work), and potentially tools to remove the engine mounts to tilt the engine forward. A 5/8" spark plug socket with an extension is also necessary if you are changing the plugs.
Are expensive "performance" wires worth it for my Aztek?
For a stock 3.4L V6 engine, high-performance wires offer no noticeable benefit. The factory ignition system is designed to work with standard, OEM-spec wires. Sticking with a quality brand like ACDelco, Delphi, or NGK is the best investment for reliability and performance.
Why did my new wires get stuck on the spark plugs?
This is a common issue, sometimes even with new wires, if not installed correctly. To prevent the boot from seizing to the spark plug's ceramic insulator, apply a small amount of dielectric grease inside each boot before installation. This makes future removal much easier.
Are there any recalls for the Aztek's spark plug wires?
There are no specific recalls or Technical Service Bulletins (TSBs) for the spark plug wires on the 2001-2005 Pontiac Aztek. There was a recall for the 2004 model year related to a faulty ignition relay that could cause stalling, which can sometimes be confused with an ignition component problem.
Technical Specifications

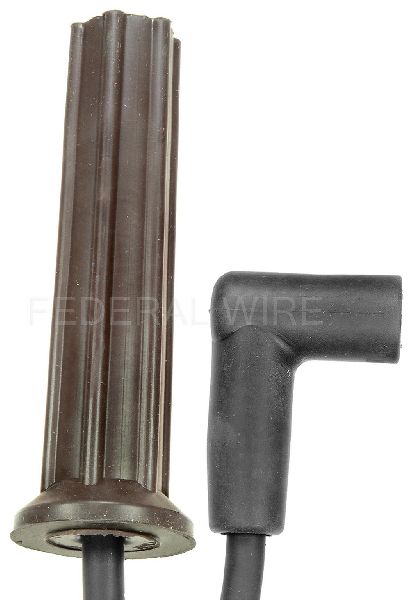

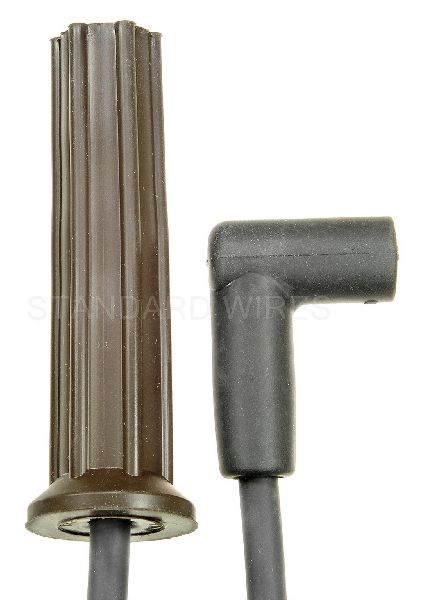

OEM Part Numbers: 12192462 9726UU
Set of 6 spark plug wires for the 3.4L V6 engine. Wires are of varying lengths to match the distance from the coil pack to each cylinder.
