Saturn L300 Engine Crankshaft Position Sensor Guide (2001-2005)
Solve stalling, no-start, and rough running issues on your V6 L300 with this guide.
- A failing crankshaft sensor is a very common cause of stalling and no-start conditions on the L300 V6.
- For this critical sensor, it is highly recommended to use an OEM (ACDelco) or premium aftermarket brand (like Delphi or NGK) to ensure reliability.
- Replacement is possible for a DIYer, but requires safely raising the vehicle to access the sensor from underneath.
- Do not continue driving with these symptoms; the risk of stalling in traffic is high and dangerous.
Is Your Saturn L300 Stalling or Not Starting?
If your 2001-2005 Saturn L300 suddenly stalls while driving, has trouble starting, or runs rough, a failing crankshaft position sensor is a common cause. This sensor tells the engine's computer when to fire the spark plugs and fuel injectors. When it starts to fail, the signal can become weak or intermittent, especially when the engine gets hot. This leads to a range of frustrating and potentially dangerous engine problems.
Symptoms of a Failing Crankshaft Position Sensor
- Engine Cranks but Won't Start: The starter turns the engine over, but it never fires up and runs on its own. 🎬 See a real-world example of an L300 no-start condition.
- Intermittent Stalling: The engine shuts off unexpectedly while driving, sometimes only after it has warmed up. It may start back up after cooling down for a few minutes.
- Check Engine Light: A failing sensor will almost always trigger the Check Engine Light and store diagnostic trouble codes like P0335 or P0336. 🎬 Watch: How to diagnose and fix a P0335 trouble code.
- Rough Idle and Misfires: The engine may shake or vibrate at idle due to incorrect ignition timing.
- Poor Acceleration: You may notice hesitation or a lack of power when you press the gas pedal.
Driving is Not Recommended
You should not drive your L300 if you suspect the crankshaft position sensor is failing. The risk of the engine stalling in traffic is high and can lead to a dangerous situation.
Choosing the Right Aftermarket Sensor
For a critical sensor like this, part quality matters. While budget-friendly options are available, forum discussions among Saturn and GM owners often warn against using the cheapest parts, which can fail quickly or not work correctly out of the box.
Brand Quality Tiers for Your L300
- Tier 1: OEM & Premium Aftermarket (Recommended): Brands like ACDelco (the original GM part) and Delphi are often the original equipment manufacturer and provide the best reliability. Other high-quality brands like NGK, Hitachi, and Standard Ignition (SMP) are solid choices that meet or exceed OEM specifications.
- Tier 2: Reputable Aftermarket: Brands like Dorman and Walker Products offer a balance of value and quality. They are a viable option if premium brands are not available, but quality can sometimes be inconsistent.
- Tier 3: Budget / Store Brands: While the low price is tempting, generic or store-brand sensors are not recommended for this specific part. The risk of premature failure and having to do the job twice often outweighs the initial savings.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $21 - $79 |
| New OEM (ACDelco) | $100 - $120 |
| Shop Labor | $100 - $200 |
Pro Tip: Check for Oil Leaks
Before installing a new sensor, check for any oil leaks from above. Oil dripping onto the sensor or its wiring can cause the new part to fail prematurely. Address any leaks first.
Frequently Asked Questions (FAQ)
Where is the crankshaft sensor on a 2001-2005 Saturn L300?
The crankshaft position sensor on the 3.0L V6 engine is located on the lower part of the engine block, near where the engine meets the transmission. The electrical connector is often accessible from the top of the engine bay, but the sensor itself is held in by a single bolt that must be accessed from underneath the vehicle. 🎬 Watch: This video shows the exact sensor location on the V6. You will need to safely raise the car with ramps or jack stands to reach it.
Can I replace this sensor myself?
Yes, this is a DIY-feasible job for someone with basic mechanical skills. The main challenge is access. You will need to safely get under the car. The process involves disconnecting the battery, unplugging the connector, removing one bolt, swapping the sensor, and then putting everything back together. Estimated time is about one hour.
Are there any recalls for this part on my L300?
No, searches of the NHTSA database did not find any specific recalls or technical service bulletins (TSBs) for the crankshaft position sensor on the 2001-2005 Saturn L300 with the V6 engine.
What happens if I don't replace a bad crankshaft sensor?
Ignoring a bad sensor will lead to worsening symptoms. You will experience more frequent stalling, have difficulty starting the car, and see poor fuel economy. Eventually, the sensor will fail completely, and your L300 will not start at all, potentially leaving you stranded.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9195883 09195883

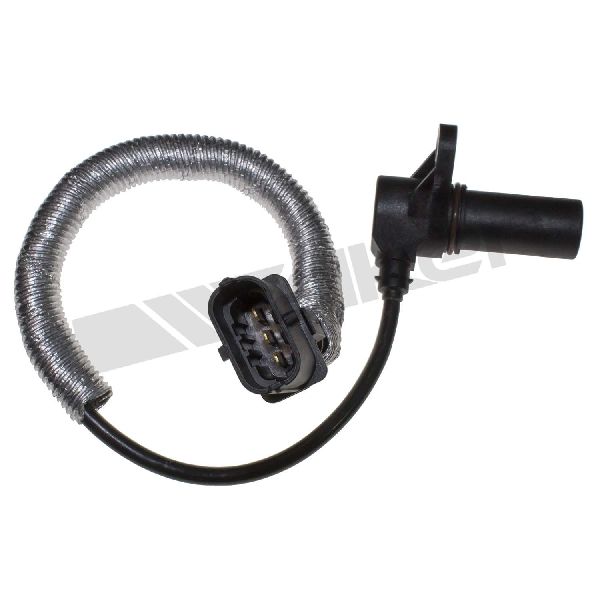

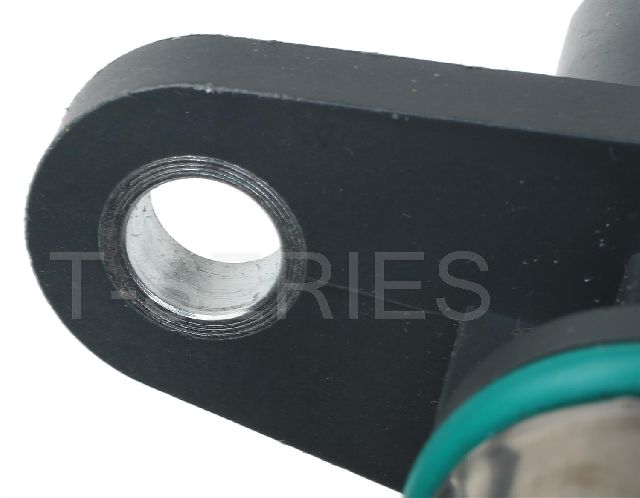

This is a magnetic-type sensor with a 3-pin oval connector. It includes a wiring harness and a new O-ring seal.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
