Saturn L300 Windshield Washer Pump Replacement Guide (2001-2005)
Here’s what to know when your Saturn L300's windshield washer pump stops working.
- The most common failure symptom is a silent pump; if you hear nothing when you activate the washers, the pump has likely failed.
- An aftermarket pump from a brand like Trico is a reliable and cost-effective choice for this repair.
- Replacement is a simple DIY job that usually takes less than an hour with basic tools.
- Be prepared for the possibility that an aftermarket pump may require splicing wires if the electrical connector doesn't match the original.
Is Your Saturn L300 Washer Pump Failing?
If you activate your windshield washers and nothing happens, the pump is a likely suspect. For the 2001-2005 Saturn L300, this is a common failure point due to the age of the vehicle. Diagnosing the issue is usually straightforward.
Symptoms of a Bad Washer Pump
- No Sound, No Fluid: The most common sign of a dead pump is silence. When you try to use the washers, you hear nothing, and no fluid sprays out. Before assuming the pump is bad, always check the fuse first.
- Pump Hums, But No Fluid Sprays: If you can hear the pump motor humming but no fluid comes out, the problem could be an empty reservoir, clogged washer nozzles, or a blockage in the pump's filter itself.
- Weak or Uneven Spray: A pump that is starting to fail may lose pressure, resulting in a weak or uneven spray that doesn't effectively cover the windshield.
Pro Tip: Before buying a new pump, check two things. First, make sure your washer fluid reservoir is full. Second, check the fuse for the washer system. On many cars, this fuse is shared with the wipers; if your wipers move but the pump doesn't make a sound, the pump is the likely culprit.
Choosing a New Aftermarket Pump for Your L300
For a vehicle like the 2001-2005 Saturn L300, the original GM (ACDelco) washer pump may be difficult to find or expensive as new-old-stock. An aftermarket pump is the most practical and cost-effective solution. For a simple part like this, a quality aftermarket brand offers the same performance and reliability as the original.

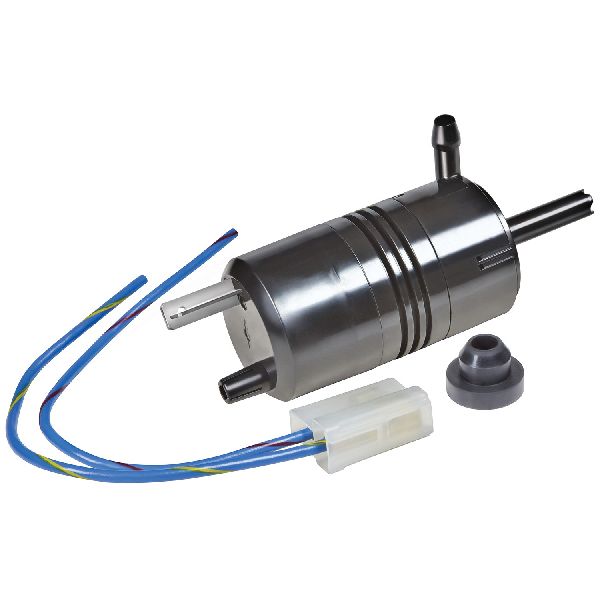

Trico is a well-known brand in the automotive industry, specializing in wiper and washer systems. Their pumps are designed to be direct-fit replacements, making installation easier. While specific reviews for Trico pumps on the L300 are scarce, the brand has a positive reputation for reliability on other Saturn models.
A Note on Installation: One Saturn L-series owner reported that their aftermarket pump required being hard-wired, as the electrical connector did not match the factory harness. Be prepared for the possibility of needing to cut the old connector off and splicing the wires to the new pump.
Saturn L300 Washer Pump Replacement Cost
Replacing the washer pump is an affordable repair, especially if you do it yourself. The job is considered easy and can be done with basic hand tools.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump | $20 - $40 |
| Shop Labor | $75 - $150 |
| Total Professional Replacement | $95 - $190 |
Frequently Asked Questions
Where is the washer pump located on a 2001-2005 Saturn L300?
The washer pump is attached to the bottom of the windshield washer fluid reservoir. On many vehicles of this era, the reservoir is located in the engine bay, but sometimes it is hidden behind the front bumper cover or inner fender liner, requiring removal of the wheel and liner for access.
Is replacing the washer pump a difficult DIY job?
No, this is considered an easy DIY repair for most home mechanics. It typically takes less than an hour. The process involves accessing the reservoir, disconnecting the old pump's electrical plug and hoses, pulling it from its rubber grommet, and installing the new one.
Are there any recalls for the Saturn L300 washer pump?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or specific technical service bulletins (TSBs) for the windshield washer pump on the 2001-2005 Saturn L300.
My pump runs, but the spray is weak. Is the pump bad?
It could be a sign of a failing pump, but first try cleaning the washer nozzles. Use a small pin or needle to clear any debris from the spray jets on the hood. If that doesn't solve the issue, the pump is likely losing pressure and should be replaced.
Technical Specifications
OEM Part Numbers: 22818728 1H5955651 1450184
Voltage: 12V, Terminal Quantity: 2, Terminal Type: Blade
