A Comprehensive Guide to 2001-2005 Toyota RAV4 Engine Mounts
Stop the shaking and vibrations by choosing the right replacement engine mount for your second-generation RAV4.
- Symptoms of failure include intense vibration, clunking noises during acceleration, and visible engine lurching.
- Your RAV4 has about four mounts; it's best to replace them as a set for long-term reliability.
- Aftermarket brands like Anchor and DEA are affordable but may increase cabin vibration; Beck Arnley is a higher-quality aftermarket option.
- For 2001-2003 models, harsh shifting could be related to a known ECM issue, which puts extra stress on mounts.
Symptoms of a Failing Engine Mount
When your RAV4's engine mounts start to fail, you'll notice. The signs are hard to ignore. Worn mounts allow the engine to move around too much, which can cause a chain reaction of other problems. Here’s what to look and listen for:
Common Failure Symptoms
- Excessive Vibration: This is the most common sign. You might feel a strong vibration through the steering wheel, the floor, or the entire cabin, especially when the engine is idling.
- Clunking or Thumping Noises: Loud clunks, bangs, or thumps when you accelerate, decelerate, or shift gears (like from Park to Drive) are a clear sign of a broken mount. This is the sound of the engine shifting and hitting other parts.
- Engine Movement: You can sometimes see a failing mount. Open the hood and have a helper gently rev the engine while the car is in park with the brake on. If the engine jumps or lurches more than an inch or two 🎬 Watch: How to tell if your motor mounts have failed, the mounts are likely worn out.
- Harsh Shifting: As the mounts fail, the engine and transmission can become misaligned. This can cause a noticeable jolt or harsh feeling when the automatic transmission changes gears.
Known Issues for the 2001-2005 RAV4
While there are no specific recalls for engine mounts on the 2001-2005 RAV4, a known issue with the Engine Control Module (ECM) in 2001-2003 models is worth noting. A faulty ECM could cause harsh shifting, which puts extra stress on the engine and transmission mounts, potentially causing them to fail sooner. Toyota issued a Technical Service Bulletin (TSB) about this ECM problem. If you have a 2001-2003 model and experience both harsh shifting and mount failure symptoms, it's wise to have a mechanic check the ECM as well. Additionally, the driver's side mount is reported to wear out on high-mileage RAV4s, which then puts more strain on the other mounts.
Choosing the Right Aftermarket Engine Mount
When replacing your engine mounts, you have a choice between original equipment manufacturer (OEM) parts from Toyota and aftermarket parts from other brands. For a vehicle of this age, aftermarket parts offer a significant cost saving. However, quality can vary widely.
Your RAV4 has a set of three or four mounts, including front, rear, right (passenger side), and a transmission mount (driver's side). The passenger side mount is often a liquid-filled hydraulic mount designed for maximum vibration damping. Cheaper aftermarket mounts are often solid rubber, which can increase the amount of vibration you feel at idle compared to the original part.
Brand Quality Tiers
Based on mechanic feedback and owner experiences, aftermarket brands for your RAV4 can be grouped into tiers:
- Premium Aftermarket (Good): Beck Arnley is often considered a higher-quality aftermarket brand. They focus on matching the original factory specifications and sometimes even repackage OEM parts. This is a good choice if you want something close to original quality without the full dealer price.
- Standard Aftermarket (Acceptable): Brands like Anchor, DEA, and Westar fall into this category. They are affordable and widely available. However, they are often made with harder rubber compounds and may not last as long or absorb vibration as well as OEM or premium options. You might notice more cabin vibration, but they will secure the engine properly.
- Economy Kits: You may find full kits online for very low prices. While tempting, these are often the lowest quality and may have issues with fitment or durability, leading you to do the job again sooner.
| Part Type | Estimated Cost (Part Only) | Notes |
|---|---|---|
| New Aftermarket | $29.70 - $94.03 | Your most common and affordable option. Price varies by brand and specific mount location. |
| New OEM (Toyota) | $70 - $200+ per mount | Highest quality and perfect fit, but at a much higher cost. |
| Shop Labor | $122 - $450 | Labor costs can vary. Replacing a single, easily accessible mount might be on the lower end, while a full set will be higher. |
Frequently Asked Questions (FAQ)
How many engine mounts does my 2001-2005 RAV4 have?

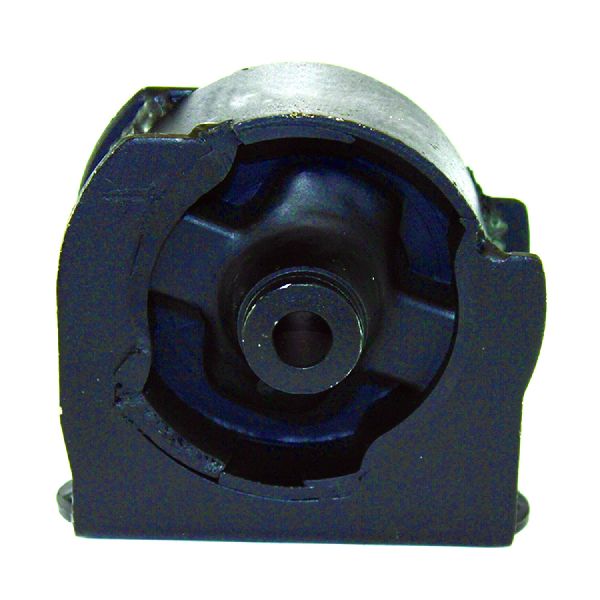

Your RAV4 typically has a set of four mounts: a front mount, a rear mount, a right-side (passenger) mount, and a left-side transmission mount. 🎬 See this walkthrough for replacing front, rear, and transmission mounts The exact configuration can vary slightly based on whether you have an automatic or manual transmission and 2WD or 4WD.
Can I replace just one bad engine mount?
Yes, you can replace just the one that has failed. However, engine mounts tend to wear out at a similar rate. A single failed mount puts extra stress on the others, causing them to fail sooner. If one has failed and your budget allows, it's a good idea to replace them as a set.
What is the difference between an engine mount and a transmission mount?
They serve the same basic purpose: securing the drivetrain and absorbing vibration. Engine mounts secure the engine block, while the transmission mount secures the transmission. On your front-wheel-drive based RAV4, they work together as a complete system to hold the entire engine and transaxle assembly. The driver's side mount is often referred to as the transmission mount.
Is replacing RAV4 engine mounts a DIY job?

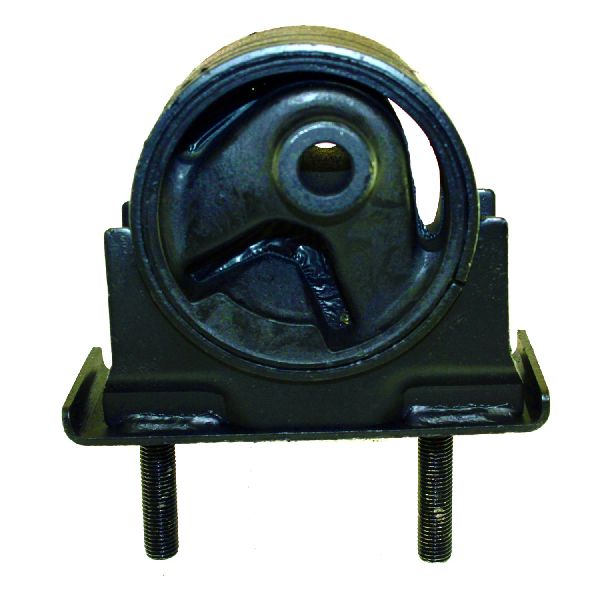

For an experienced DIY mechanic, yes. The job requires a good set of metric sockets, a floor jack, and jack stands to support the engine safely while you unbolt the old mounts and install the new ones. Some mounts, like the rear one, can be tricky to access. 🎬 Watch: How to replace a difficult Toyota rear engine mount If you are not comfortable supporting the weight of the engine, it is best to leave this job to a professional.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12361-21010 12305-28060 12371-26010
Set of 3-4 mounts, including front, rear, right (passenger-side), and transmission (driver-side). The right-side mount is typically a hydraulic type for improved vibration damping.
