A Guide to the Engine Oil Pressure Switch for the 2001-2006 Audi S8
Understanding the different switches for the V8 and V10 engines and how to choose the right replacement part.
- First, confirm if you have the 2001-2003 D2 S8 (4.2L V8) or the 2006 D3 S8 (5.2L V10) to get the correct part.
- Never ignore a red oil pressure light; if you hear engine noise, stop driving immediately.
- Always confirm the engine's actual oil pressure with a mechanical gauge before replacing the switch to rule out a serious mechanical problem.
- For the D2 S8, the switch is a known leak point located above the oil filter housing and can be difficult to access.
Is it a D2 V8 or a D3 V10? Know Your S8
Before buying an engine oil pressure switch, you must know which Audi S8 you have. The 2001-2006 range covers two completely different generations with different engines.
- 2001-2003 Audi S8 (D2): This model has a 4.2L V8 engine.
- 2006 Audi S8 (D3): This model has a 5.2L V10 engine.
There were no S8 models sold in North America for 2004 and 2005. The engine in your car determines which part you need and how difficult it is to replace.
Common Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can create a lot of stress, but it's often a simple fix. The key is to know whether you have a bad switch or a real oil pressure problem.
- Oil Pressure Warning Light: The most common symptom is the red oil pressure light flickering or staying on, especially when the engine is warm or when you rev it over 2000 RPM. This can happen even if the oil level is perfect.
- Visible Oil Leak: These switches are known to fail by leaking oil. You may see oil residue on or below the switch itself. For the D2 S8, this can look like a leak from the oil filter housing area.
Warning: Do Not Ignore the Light
If the oil pressure light comes on and you hear any knocking, clattering, or loud mechanical noises from the engine, stop the car immediately and have it towed. This signals a true and dangerous loss of oil pressure that can destroy your engine. A faulty switch does not cause engine noise.
Choosing the Right Aftermarket Part
While you can always buy a part from the Audi dealer, a high-quality aftermarket switch can provide the same reliability for less money. Here’s how the available brands generally rank for German vehicles.
Top Tier (OEM Supplier Quality):
- Hella, CRP (Rein): These brands are often Original Equipment Manufacturers (OEM) for Audi. Choosing one of these is the closest you can get to a genuine part. They are built to the exact pressure specifications and material quality Audi requires.
Mid Tier (Trusted Aftermarket):
- Beck Arnley, Standard Ignition (SMP): These companies have a long-standing reputation for producing reliable parts that meet or exceed OEM standards. They are a solid, dependable choice for a balance of price and quality.
Economy Tier:
- Facet, Walker Products, Rostra Powertrain: These brands offer a budget-friendly option. While functional, they may not have the same long-term durability or precise calibration as higher-tier brands. For a part this critical, investing a few extra dollars in a top or mid-tier brand is a wise decision.
Pro Tip: Always Check with a Mechanical Gauge
Before you replace the switch, it is highly recommended to have a mechanic test the engine's actual oil pressure with a mechanical gauge. This test will confirm if you have a simple faulty switch or a more serious internal engine problem. This step can save you from chasing the wrong repair.
Cost of Replacing the Engine Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $25 - $55 |
| New Aftermarket | $10 - $30 |
| Shop Labor | $70 - $180 |
Labor costs vary significantly by location and which engine you have. The D3 V10 may have higher labor costs due to part location.
Frequently Asked Questions (FAQ)
Is the oil pressure switch hard to replace myself?
It depends on your engine. On the 2001-2003 S8 (4.2L V8), the switch is located above the oil filter housing. Access is tight and requires removing the airbox, and you may need special tools or have to cut the old switch to remove it, but it is considered a manageable DIY job. On the 2006 S8 (5.2L V10), the switch is likely near the oil filter housing at the back of the engine near the firewall, which may require more components to be removed for access, making it a more difficult job.
Does the Audi S8 have one or two oil pressure switches?
The 2001-2006 S8 models typically use a single-stage oil pressure system with one primary switch to trigger the main warning light. Some other Audi engines use a two-switch system for different RPM ranges, but that is not standard on these S8 engines.
Are there any recalls for the oil pressure switch?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls for the engine oil pressure switch on the 2001-2006 Audi S8.
What is the most common mistake when ordering this part?
The most common mistake is ordering a part without confirming your engine type. A switch for a 2003 S8 (V8) may not be correct for a 2006 S8 (V10). Always verify the OEM part number for your specific vehicle before purchasing.
Technical Specifications

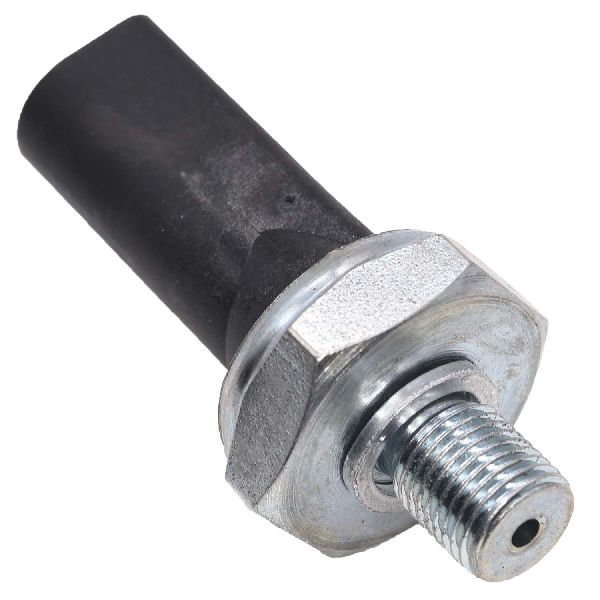

OEM Part Numbers: 06A919081J 06A919081A 079919081
The key specifications are the pressure rating (BAR) and thread size. For the D2 S8 (V8), the part is typically 06A919081J (supersedes 06A919081A). For the D3 S8 (V10), the part is often listed as 079919081. Always verify by VIN.
