A Guide to the 2001-2006 BMW 320i Engine Crankcase Breather Hose System
Understanding the common failure points of your E46's crankcase ventilation system and how to choose the right replacement parts.
- This is a guaranteed failure item; it's a matter of 'when', not 'if'.
- Always replace the entire CCV system (valve and all 4 hoses) as a kit to avoid repeat failures.
- The 'cold climate' version with insulated hoses is a worthwhile upgrade for all climates to prevent sludge and freezing.
- This is a difficult, labor-intensive job that requires removing the intake manifold; budget accordingly for time or labor costs.
Is Your BMW 320i Running Rough? It Could Be the CCV System.
If you own an E46-generation BMW, the crankcase ventilation (CCV) system is a known weak point that is guaranteed to fail. The plastic hoses and valve are constantly exposed to heat and oil vapor, causing them to become extremely brittle over time. Eventually, they crack or clog, leading to a variety of engine problems. This issue is often worse in cold climates or on cars used for frequent short trips, where moisture can mix with oil to create a thick, yellow sludge that blocks the system.

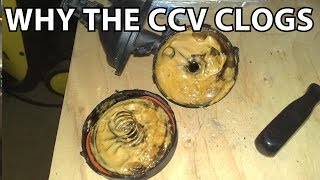

🎬 See why the E46 CCV system clogs and fails over time.Symptoms of a Failing Breather Hose or CCV System
- Check Engine Light: Often with lean codes like P0171 and P0174, caused by unmetered air entering the engine through cracks in the hoses.
- Rough Idle & Misfires: The engine may stumble, run poorly, or misfire due to the incorrect air-fuel mixture.
- Increased Oil Consumption: A failed system can create a strong vacuum that sucks oil from the oil pan into the intake manifold, where it gets burned.
- White or Blue Smoke from Exhaust: This is a sign of oil being burned in the combustion chamber.
- Whistling or Sucking Noise: You might hear a distinct howling or sucking sound from the engine bay as air is pulled through cracks in the hoses.
- Failed "Oil Cap Test": With the engine running, if you feel a very strong suction when trying to remove the oil filler cap, it's a classic sign the CCV valve diaphragm has ruptured. 🎬 Watch: How to perform a CCV valve vacuum test yourself.
Known Issues: Cold Weather & Brittle Plastics
The original CCV system is prone to failure, especially in cold weather. Moisture can freeze inside the hoses or valve, causing them to crack or shatter. Because of this, it is highly recommended to replace the entire system (valve and all four hoses) at once. If one hose is brittle enough to crack, the others are not far behind. Trying to replace just one piece often results in breaking another during installation.
Choosing the Right Aftermarket Breather Hose Kit
Since the breather hoses are a common failure item, several aftermarket brands offer replacements. Quality varies, and since the replacement job is labor-intensive, choosing a quality part is important to avoid doing the job twice.
Brand Quality Tiers
- Premium Aftermarket (OEM-Quality): Brands like CRP (Rein) and Febi are often original equipment suppliers to BMW. Their parts are typically identical in fit and material to the genuine BMW parts, offering the best quality and fit without the dealer price tag. Forum discussions frequently recommend these brands for reliability.
- Standard Aftermarket: Brands like Gates, Vaico, and Standard Ignition offer a more budget-friendly alternative. While Gates is a well-known hose manufacturer, specific reviews for this CCV kit are less common. Some user experiences suggest that brands like Vaico can be hit-or-miss in terms of long-term durability for certain BMW parts.
- Budget-Friendly: The lowest-priced options, including unbranded kits or brands like BBR, can be tempting. However, given the difficulty of the installation, these parts carry a higher risk of premature failure, potentially leading to doing the entire 6+ hour job all over again.
Pro Tip: Consider the Cold Climate Version
BMW produced an updated "cold climate" version of the CCV kit that includes foam insulation on the hoses and separator valve. This insulation helps the system warm up faster, preventing the moisture and oil sludge buildup that leads to blockages and freezing. This is a wise upgrade for any owner, especially those in colder regions or who frequently drive short distances.
Cost of Replacing the Engine Crankcase Breather Hose System
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Full Kit) | $60 - $120 |
| New OEM (Full Kit) | $150 - $250 |
| Shop Labor | $700 - $1100 |
Frequently Asked Questions
Can I just replace the one broken hose?
It is strongly advised not to. The plastic on all the CCV components becomes brittle at the same rate. The force required to remove one hose will almost certainly break the connecting port on the valve or another hose. Always replace the oil separator valve and all four connecting hoses as a complete kit.
Is there a recall on the 2001-2006 320i breather hose?
There is no recall for the hoses themselves cracking. However, a major recall (NHTSA Campaign Number 22V-119) was issued for the PCV *valve heater* on many BMWs, including the 2006 3 Series. This heater can short-circuit and pose a fire risk. While the 2001-2005 320i is not explicitly listed in that recall, it highlights issues with the overall system's components. Always check your VIN on the NHTSA website for any open recalls.
What is the difference between a CCV and PCV system?
PCV (Positive Crankcase Ventilation) is the generic term for this type of engine emissions system. BMW uses a more complex design they call a CCV (Crankcase Controlled Ventilation) or oil separator system, which uses a cyclone effect to separate oil more efficiently before venting the gases.
How difficult is this job to do myself?
This is an advanced DIY job. The CCV system is located underneath the intake manifold, which must be removed for access. The job can take 6-8 hours and requires patience, as many old plastic parts and vacuum lines can break during disassembly. While it is feasible for an experienced home mechanic, a novice should likely leave this to a professional.
🎬 Watch this step-by-step guide to replacing the BMW CCV system.Helpful Videos
Technical Specifications

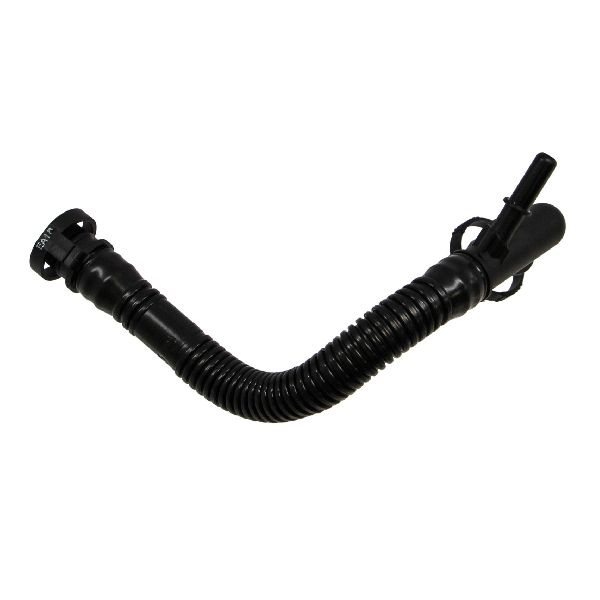

OEM Part Numbers: 11617501566 11157532649 11611432559 11617504535 11617504536
The system consists of one oil separator valve and four connecting breather hoses. It is located under the intake manifold. An insulated 'cold climate' version is also available.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
