A Guide to the Engine Valve Cover Gasket Set for the 2001-2006 BMW 330xi
Understanding the common oil leaks on your M54 engine and how to choose the right parts to fix them.
- Valve cover gasket failure is a very common and expected issue on the 2001-2006 BMW 330xi's M54 engine.
- Choose an OEM-quality aftermarket brand like Elring or Victor Reinz for a reliable, long-lasting seal without the dealer price tag.
- Always replace the 15 bolt grommets along with the main gasket; they are a primary cause of repeat leaks if reused.
- While replacing the gasket, inspect the plastic valve cover for cracks or warping, as it may also need replacement.
Is Your 330xi Leaking Oil? It's Probably the Valve Cover Gasket.
If you own a 2001-2006 BMW 330xi, you're driving a car with the well-regarded M54 inline-six engine. A fantastic engine, but it has a very common and predictable oil leak: the valve cover gasket. Due to constant exposure to engine heat, the rubber gasket that seals the valve cover becomes hard and brittle, losing its ability to seal properly. This isn't a question of if it will leak, but when. The good news is that it's a manageable repair with plenty of aftermarket options available.
A Note on the Plastic Valve Cover
The original M54 valve cover is made of a plastic composite. Over many years and heat cycles, this plastic can also become brittle and develop hairline cracks or warp. If you replace the gasket and the leak returns quickly, or if you can see a crack, the cover itself may be the problem. In these cases, replacing the entire valve cover assembly is the only correct fix. Some aftermarket companies even offer upgraded aluminum valve covers.
Choosing the Right Aftermarket Gasket Set
When it comes to gaskets for German cars, not all aftermarket brands are created equal. However, you don't need to buy a part in a Genuine BMW box to get a quality seal. Many aftermarket brands are the Original Equipment Manufacturer (OEM) for BMW, meaning they made the original part for the factory.
Brand Quality Tiers
- OEM-Quality (Recommended): Brands like Elring and Victor Reinz are original equipment suppliers to BMW. Choosing a set from one of these brands is essentially like buying the genuine part without the dealership markup. They are engineered to BMW's exact specifications for fit and material. For the M54 engine, these are the most recommended choices in owner forums for a long-lasting repair.
- Quality Aftermarket: Brands like Beck Arnley and Elwis often provide reliable parts. Beck Arnley is known for sourcing parts from various manufacturers, including OEM suppliers, to match the original application. Elwis is also a recognized European gasket manufacturer. These are generally solid choices if an OEM brand is not available.
- Budget Options: Brands like Apex fall into the budget-friendly category. While they can work, forum discussions often show that they may not last as long as OEM-quality gaskets, sometimes leading to leaks within a year or two. If you are on a tight budget, they are an option, but for a job like this, it's often worth spending a little more to avoid doing the work twice.
Pro Tip: Don't Forget the Grommets!
The valve cover gasket set should include the 15 small rubber grommets that seal the mounting nuts. These grommets get just as hard and brittle as the main gasket. Reusing old grommets is a common cause of continued leaks even after a gasket replacement. Always use a new set.
| Item | Cost Range |
|---|---|
| New OEM Gasket Set | $75 - $115 |
| New Aftermarket Gasket Set | $40.55 - $102.89 |
| Shop Labor Cost | $368 - $540 |
| Total Professional Repair | $426 - $617 |
Frequently Asked Questions (FAQ)
Is there a recall on the valve cover gasket?
No, there are no recalls or specific Technical Service Bulletins (TSBs) for the valve cover gasket on the 2001-2006 BMW 330xi. This is considered a normal wear-and-tear maintenance item. There was a recall for the PCV valve heater on some 2006 models, which is located near the valve cover, but it is unrelated to the gasket itself.
Can I do this replacement myself?
Yes, this is a very common DIY job for BMW owners. The process is well-documented in online forums and videos. It requires basic tools, a torque wrench, and about 2-4 hours of time. The key is to be gentle with the plastic valve cover and to follow the correct bolt-tightening sequence to ensure even pressure.
Why does my engine misfire when the gasket is bad?
The valve cover gasket set includes seals for the spark plug tubes. When these seals fail, oil can leak into the tubes and pool around the spark plugs and ignition coils. This oil contamination can cause the spark plugs to foul, leading to engine misfires, a rough idle, and a Check Engine Light.
What is RTV sealant and do I need it?
RTV (Room Temperature Vulcanizing) silicone sealant is used to help seal sharp corners where leaks are more likely. For the M54 engine, it is recommended to apply a small dab of oil-resistant RTV sealant at the corners where the timing cover meets the cylinder head (the 'half-moon' areas) before placing the new gasket. This provides extra insurance against leaks in these critical spots.
Technical Specifications
OEM Part Numbers: 11120030496 11129070990 11127512839 11121437395

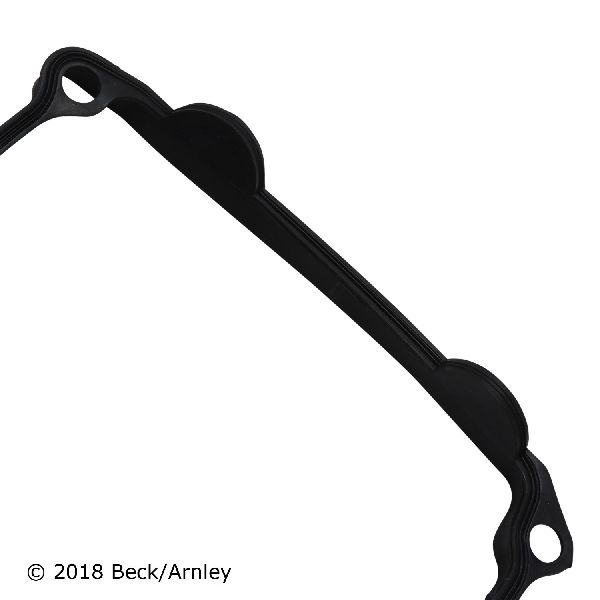

Kit includes main valve cover gasket, 2 spark plug well gaskets, and 15 bolt sealing grommets. Fits M54 3.0L engine.
