Guide to the Door Lock Switch for the 2001-2006 Chevrolet Silverado 2500 HD
If your Silverado's power locks are acting up, the switch could be the simple fix you need.
- Failure is common, but replacement is simple, especially for the driver's master switch.
- Symptoms like slow or weak lock movement often point to a bad door lock actuator, not the switch.
- The driver's master switch is a large assembly and costs much more than the simple passenger-side switch.
- Always check the door lock fuse before assuming a component has failed.
Is Your Door Lock Switch Failing?
A bad door lock switch can be a nuisance, but it's usually easy to diagnose. The signs are often straightforward. Keep in mind that these symptoms can also be caused by a failing door lock actuator, which is the motor that the switch controls.
Common Symptoms:
- Inconsistent Operation: The locks work sometimes but not others. You might have to press the button multiple times.
- One-Way Failure: The switch will lock the doors but won't unlock them, or vice-versa.
- No Response: Pressing the lock or unlock button does nothing at all, but the locks may still work with the key fob.
- Faint Clicking Noise: You hear a soft click from inside the door when you press the switch, but the lock plunger doesn't move. This can point to a weak switch or a dying actuator.
Pro Tip: Check the Fuse First
Before buying parts, check the fuse for the power door locks. Your owner's manual will show you its location. If all the locks stopped working at the same time, a blown fuse is a common and easy fix.
Choosing the Right Aftermarket Switch
When shopping for a new door lock switch for your Silverado, you'll notice a big price difference. This is because the driver's side and passenger's side switches are very different parts.
- Driver's Side Master Switch: This is a large, complex unit that includes the controls for all power windows, window locks, and sometimes power mirrors. Due to its complexity, it is the most expensive part.
- Passenger's Side Switch: This is a much simpler, single button switch just for the door lock. It is significantly cheaper.
OEM vs. Aftermarket Quality
For a part like this, both OEM and quality aftermarket parts are good options.
- OEM (ACDelco): An original equipment part from GM's own brand, ACDelco, guarantees a perfect fit, finish, and function. It's the most reliable but also the most expensive choice.
- Standard Ignition (SMP): A well-regarded aftermarket manufacturer that produces reliable parts that meet or exceed original specifications. This is often a good balance between cost and quality.
- Rostra Powertrain: Rostra is another available aftermarket brand. While they produce a wide range of automotive electronics, specific user reviews for this part are less common.
Is it the Switch or the Actuator?
It's very common on these trucks for the door lock actuator (the motor inside the door) to fail. Symptoms are very similar, especially slow or weak lock movement. If you hear a buzzing or grinding noise from inside the door when you press the switch, the actuator is almost certainly the problem, not the switch.

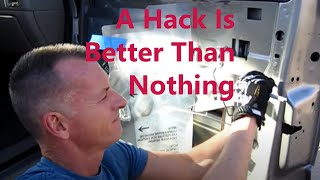

🎬 Learn how to diagnose a failing door lock actuator.Cost of Replacing a Door Lock Switch
| Part | Estimated Cost |
|---|---|
| New Aftermarket Switch | $28.72 - $299.49 |
| New OEM (ACDelco) Switch | $60 - $250 |
| Shop Labor | $50 - $150 |
Frequently Asked Questions (FAQ)
Is it hard to replace the door lock switch myself?

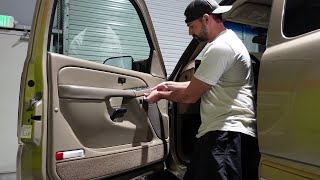

For the driver's side master switch, the job is very easy and takes only a few minutes. You simply pry up the switch panel bezel, disconnect the wiring, remove two screws, and swap the switch. 🎬 Watch this quick walkthrough for replacing the driver's master switch. For the passenger side, you will likely need to remove the entire door panel, which is more involved but still a very manageable DIY task 🎬 See the easiest way to remove the door panel yourself. for most people with basic tools.
Why is the driver's side switch so much more expensive?
The driver's switch is a master control module that integrates the switches for all power windows, the window lock button, the door lock button, and often the power mirror controls. The passenger side switch is just a single button for the lock, making it a much simpler and cheaper part.
Do I need to disconnect the battery to replace the switch?
It is always a best practice to disconnect the negative battery terminal before working on any electrical components in your vehicle. This prevents accidental short circuits that could blow a fuse or damage other electronics.
Will a new switch fix locks that move slowly?
Usually, no. Slow or weak movement of the door lock plunger is a classic symptom of a failing door lock actuator, not the switch. The actuator motor is wearing out and doesn't have the strength to fully move the lock mechanism. Replacing the switch will not solve this problem.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15883322 15077858 15883320 19115820
The primary replacement part is the driver's side master power window and lock switch assembly. Passenger side switches are single-button units. No programming is required for replacement.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
