Engine Crankshaft Position Sensor: A Guide for the 2001-2006 GMC Sierra 3500
Fix stalling, rough idle, and no-start conditions on your Sierra 3500 by choosing the correct new aftermarket crankshaft position sensor.
- A failing sensor can cause dangerous stalling; do not drive if you experience this symptom.
- For long-term reliability, choose an OEM-equivalent brand like ACDelco or Delphi.
- A 'CASE relearn' procedure with a proper scan tool is required after replacement to avoid performance issues.
- On gas engines, the starter must be moved to access the sensor, adding to the job's difficulty.
Is Your Sierra 3500 Stalling or Hard to Start? It Could Be the Crankshaft Sensor.
A failing crankshaft position sensor is a common cause of major engine problems on the 2001-2006 GMC Sierra 3500. Because this sensor is essential for engine timing, a bad signal can cause everything from a rough idle to the engine shutting off completely while driving. These symptoms can appear suddenly and without warning, potentially leaving you stranded. Ignoring the signs of a bad sensor is a safety risk and can lead to decreased fuel economy and other engine issues.
Safety Recall Notice for 2001 Models
General Motors issued a safety recall (NHTSA ID: 06V417000, GM Recall No: 06083) for certain 2001 GMC Sierra models equipped with the 8.1L V8 gas engine. The recall addresses a faulty crankshaft position sensor that could fail and cause the engine to stall, increasing the risk of a crash. While this recall is old, it highlights a known issue with original parts on these trucks. Owners of 2001 models should verify if this recall work was completed.
Choosing the Right Aftermarket Crankshaft Sensor
When replacing this critical sensor, the quality of the part matters. For the Sierra 3500, you have several tiers of aftermarket brands available.
- Premium Aftermarket (OEM-Equivalent): Brands like ACDelco and Delphi are often the original equipment suppliers for General Motors. Choosing one of their aftermarket sensors typically means you are getting a part with the same fit, quality, and reliability as the original. These are highly recommended for a critical component like the crankshaft sensor to avoid repeat failures.
- Quality Aftermarket: Brands such as NGK/NTK, Hitachi, and Standard Motor Products (SMP) have a strong reputation for producing reliable sensors. They offer a good balance of quality and price and are a solid choice if an OEM-equivalent part is not available.
- Standard/Economy Aftermarket: Brands like Dorman, Walker Products, and others offer a budget-friendly solution. While they can work, some forum discussions mention a higher chance of premature failure with economy-grade electronic parts compared to premium brands. These may be suitable for a temporary fix, but for long-term reliability, a higher-tier brand is often a better investment.
Cost of Replacing the Crankshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $24.74 - $163.95 |
| Shop Labor | $100 - $200 |
| Total Estimated Cost | $125 - $365 |
Don't Forget the "CASE Relearn" Procedure
After replacing the crankshaft position sensor on a GM truck, a procedure called a Crankshaft Position System Variation Learn (also known as CASE relearn) is almost always required. This procedure uses a compatible diagnostic scan tool to calibrate the new sensor to the engine's computer. If this step is skipped, you may experience a persistent check engine light (with code P1336), rough running, or misfires, even with a new, perfectly good sensor.
🎬 Watch this video to learn how to perform a CASE relearn.Frequently Asked Questions (FAQ)
Where is the crankshaft position sensor located on my 2001-2006 Sierra 3500?
The location depends on your engine. For V8 gas engines (like the 5.3L, 6.0L, and 8.1L), the sensor is typically located on the passenger side of the engine block, just above and behind the starter motor. For the 6.6L Duramax diesel engine, the sensor is usually found on the front of the engine, near the crankshaft pulley. 🎬 See how to replace the sensor on a Duramax diesel engine. Always verify the location for your specific engine before beginning work.
Can I replace this sensor myself?

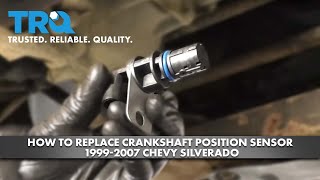

For many experienced DIY mechanics, yes. However, on the gas engines, the location behind the starter makes access difficult. The starter must be unbolted and moved out of the way to reach 🎬 Watch this step-by-step guide to replacing the sensor on gas engines. the sensor's single 10mm mounting bolt and electrical connector. The Duramax diesel location is generally easier to access. The most critical part of the DIY job is having access to a scan tool capable of performing the CASE relearn procedure after installation.
What's the difference between a crankshaft and a camshaft sensor?
They perform similar functions but monitor different shafts. The crankshaft sensor tracks the crank's position (pistons' movement), while the camshaft sensor tracks the camshaft's position (valves' movement). The computer uses both signals for precise engine timing. Sometimes, a failure in one can mimic symptoms of the other, so proper diagnosis with an OBD-II scanner is key.
Will a cheap sensor work?
While a budget-friendly sensor might work initially, electronic components like sensors are a common area where quality differences appear. Forum discussions and mechanic experience often show that premium brands like ACDelco or Delphi have a much lower failure rate. Since replacing this sensor can be labor-intensive, spending more on a quality part can save you from having to do the job again in the near future.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12560228 12575483 8125754830
The sensor is a 3-pin magnetic or Hall-effect sensor that reads a reluctor wheel on the crankshaft. It is typically secured by a single 10mm bolt. The connector is an oval shape with a locking tab.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
