A Guide to the 2001-2006 Lexus IS300 Vehicle Speed Sensor
Solve your IS300's erratic speedometer and harsh shifting by understanding and replacing the vehicle speed sensor.
- A bad VSS is a common cause of erratic shifting and speedometer failure on the IS300.
- The diagnostic trouble code P0500 almost always points to a faulty VSS or its wiring.
- This part is different from the ABS wheel speed sensors, which control the anti-lock brakes.
- For electronic sensors, choosing a premium aftermarket brand like Delphi or Standard Motor Products is a safer bet than budget options.
Is Your IS300 Speed Sensor Failing?
A bad vehicle speed sensor on the first-generation Lexus IS300 often causes problems that seem much more serious. Because the sensor's signal is essential for the automatic transmission to work correctly, a failure can feel like the transmission itself is broken. Before assuming the worst, check for these common symptoms.
Key Failure Symptoms
- Erratic or Dead Speedometer: The most obvious sign is a speedometer that jumps around, reads incorrectly, or doesn't move at all.
- Harsh or Delayed Shifting: Your automatic transmission may shift hard, hesitate between gears, or refuse to shift into the top gear. This is because the transmission controller doesn't know when to command a shift.
- Cruise Control Inoperable: If the car's computer doesn't know how fast the vehicle is going, it cannot maintain a set speed for the cruise control.
- Check Engine Light: A failing VSS will often trigger the Check Engine Light and store a diagnostic trouble code, most commonly P0500. 🎬 Watch a mobile mechanic diagnose a P0500 speed sensor code.
VSS vs. ABS Wheel Speed Sensors
It's important not to confuse the Vehicle Speed Sensor (VSS) with the ABS Wheel Speed Sensors. The IS300 has one VSS on the transmission for the speedometer and shifting, and four separate ABS sensors (one at each wheel) for the anti-lock brakes and traction control. A bad VSS affects the speedometer and shifting. A bad ABS sensor will typically cause the ABS and/or TRAC OFF lights to illuminate.
🎬 See how to replace an ABS wheel speed sensor.Choosing the Right Aftermarket Speed Sensor
When it comes to electronic sensors, quality and compatibility are key. While an OEM sensor from Lexus/Toyota is always a safe choice, several aftermarket brands offer a good balance of quality and value. For a critical sensor like the VSS, it is often wise to choose a premium aftermarket brand to avoid potential performance issues.
Premium Aftermarket Brands ($100 - $350)
- Delphi: As a major OE supplier to many car manufacturers, Delphi parts are engineered to meet or exceed factory standards. They are a trusted name for electronic components and a top-tier aftermarket choice.
- Standard Motor Products (SMP): A well-regarded aftermarket brand with a long history. For best results, choose their standard line (often in a red box) or their Intermotor line, as their budget "T-series" can have questionable quality.
Standard & Economy Brands ($53 - $100)
- Walker Products: This brand is a common sight in auto parts stores and is known for producing a wide range of engine management parts that offer decent quality for the price.
- Holstein / Vemo: These brands fall into the economy category. While they offer a significant cost saving, there is less user feedback on their long-term reliability for this specific application. They can be a viable option for a budget-conscious repair, but may carry a higher risk of premature failure compared to premium brands.
Pro Tip: When replacing the sensor, you will likely need to transfer the small plastic gear from the end of your old sensor to the new one. Most aftermarket and even some OEM sensors do not include this gear. Inspect the old gear for damage and be careful during removal and installation.
Cost of Replacing an IS300 Vehicle Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM Sensor | $200 - $350 |
| New Aftermarket Sensor | $53 - $353 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $153 - $553 (Aftermarket) / $300 - $550 (OEM) |
Note: Costs are estimates and can vary based on your location, the specific part brand chosen, and your mechanic's labor rates.
Frequently Asked Questions
Where is the vehicle speed sensor located on the 2001-2006 IS300?
The VSS is located on the driver's side of the automatic transmission, toward the rear of the housing. It is held in place by a single 10mm bolt.
Is this a difficult part to replace myself?
For a DIYer with basic tools, this is a manageable job. The vehicle will need to be safely lifted on jack stands to access the sensor. The main challenge is the tight space around the transmission. The replacement involves removing one bolt and one electrical connector.
🎬 Watch this walkthrough of the vehicle speed sensor repair process.Are there any recalls for the IS300 speed sensor?
No, there are no active recalls or widespread Technical Service Bulletins (TSBs) from Lexus or the NHTSA for vehicle speed sensor failure on the 2001-2006 IS300.
Do I need to reset the computer after replacing the sensor?
It is good practice to clear the Check Engine Light codes with an OBD-II scanner after the repair. You can also disconnect the negative battery terminal for about 15 minutes to reset the ECU. This will clear the codes and allow the transmission's adaptive learning to reset.
Helpful Videos
Technical Specifications
OEM Part Numbers: 83181-12040 83181-24070 83181-30070

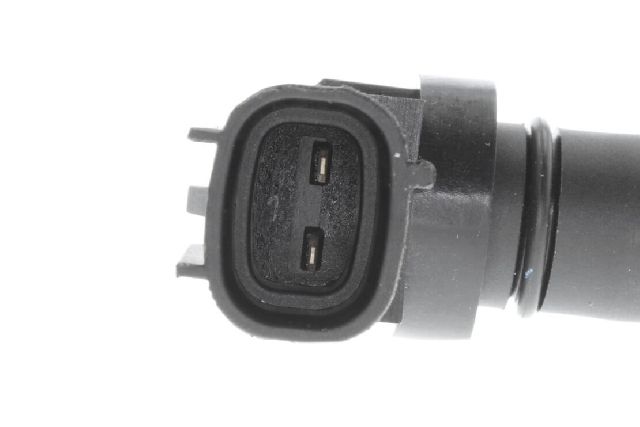

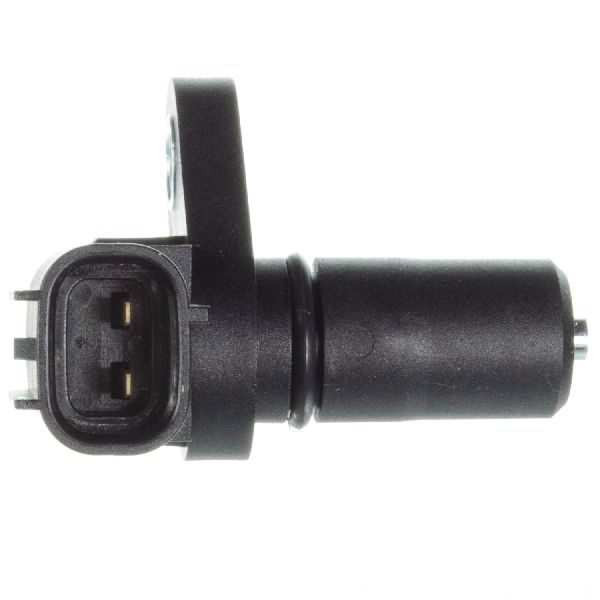

The Vehicle Speed Sensor for the IS300 is a magnetic induction sensor located on the transmission housing. It is driven by a plastic gear that meshes with the transmission's output shaft. The sensor itself typically has a 2 or 3-pin electrical connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
