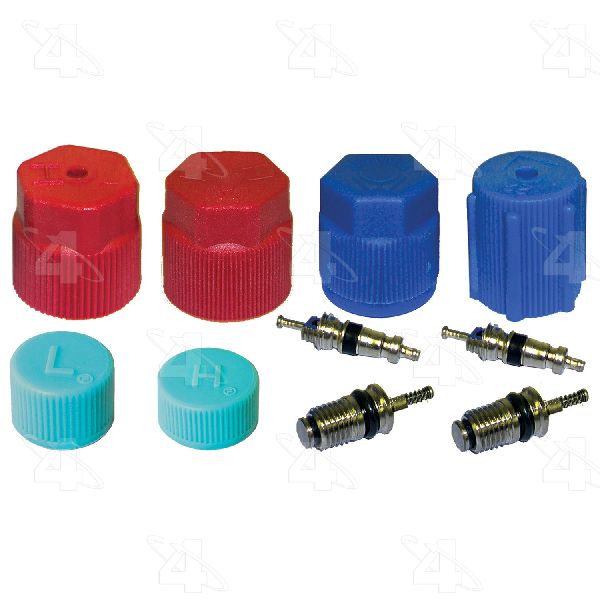

Lexus LS430 (2001-2006) A/C Valve Core & Cap Kit: A Mechanic's Guide
If your LS430's air conditioning is losing its chill, the problem could be these small, inexpensive, and often overlooked parts.
- A leaking A/C valve core is a common, inexpensive part failure that causes loss of cold air.
- Proper replacement requires specialized equipment to recover refrigerant and vacuum the system; this is not a simple DIY job for most owners.
- The low-side service port on the LS430 is located behind the driver's side headlight and can be difficult to access.
- Quality aftermarket kits from brands like Four Seasons are a cost-effective and reliable solution for this repair.
Is Your LS430 A/C Blowing Warm Air? Check Your Valve Cores.
The air conditioning on the Lexus LS430 is known for being powerful and effective. When it stops blowing cold, it's frustrating. While the LS430 can have complex A/C issues like failing servo motors or control modules, the cause can often be a simple loss of refrigerant. Before assuming a major component has failed, it's wise to check for leaks. The service port valve cores are a common and easy-to-fix leak point on any vehicle.
Proper Diagnosis is Key
A gradual loss of cooling performance is the primary symptom of a small refrigerant leak, possibly from a valve core. If your A/C stops working suddenly, or if you hear grinding noises, it could indicate a more serious issue like a seized compressor. The LS430 uses a clutchless, direct-drive A/C compressor, so proper diagnosis is important before replacing parts.
Symptoms of a Failing A/C Valve Core
- Weak or No Cold Air: The most obvious symptom. As refrigerant leaks out, the system can no longer cool the air effectively.
- Intermittent Cooling: The system might cool for a short time before blowing warm as the reduced refrigerant level struggles to circulate.
- Hissing Sound: You may hear a faint hissing from the service port area (with the engine off) if the leak is significant.
- Oily Residue: Refrigerant contains oil to lubricate the compressor. A leak will often leave a greasy or oily film around the service port valve.
Known Issues, Recalls, and TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA for the A/C valve cores on the 2001-2006 LS430. A/C problems discussed in owner forums are more frequently related to servo motors that control air blend doors or A/C control unit failures. However, a leaking Schrader valve is a fundamental A/C problem that can affect any car, including the LS430.
Choosing the Right Aftermarket Kit
For a simple component like a valve core and cap kit, there is no significant performance difference between OEM and a quality aftermarket part. Aftermarket kits offer excellent value.
- Four Seasons: A well-known and generally trusted brand in the aftermarket A/C parts world. Many mechanics have good experiences with their components. This is a solid, reliable choice.
- Global Parts (GPD): A budget-friendly option. While some professionals have reported issues with more complex GPD components like compressors, their valve and cap kits are a cost-effective solution for this simple repair.
| Brand Tier | Brands | Typical Price | Notes |
|---|---|---|---|
| Good | Global Parts (GPD), UAC | $8 - $15 | Provides a functional, budget-friendly replacement. |
| Better | Four Seasons | $15 - $24 | A reputable brand known for A/C components. |
Installation Tips for LS430 Owners
WARNING: A/C System is Pressurized
Replacing a valve core is NOT like letting air out of a tire. Automotive A/C refrigerant is a hazardous chemical under high pressure. It is illegal to vent it into the atmosphere. A proper repair requires a professional to use a special machine to safely recover any remaining refrigerant, replace the valve, pull a vacuum on the system to remove air and moisture, and then recharge it with the precise amount of refrigerant and oil. Failure to pull a vacuum will lead to poor performance and potential component damage.
Pro Tip: Locating the LS430 Low-Side Port
Finding the low-side service port on the LS430 can be tricky. It is not out in the open. You will find it behind the driver-side headlight, down low near the radiator. You may need to remove the engine cover for better access. The port faces the front of the car, not upwards, which can make it hard to spot. The high-side port is typically easier to find in front of the radiator.
Frequently Asked Questions (FAQ)
Can I just tighten the old valve core?
Sometimes, a valve core may just be loose. You can try gently snugging it with a valve core tool. If it still leaks after tightening, it must be replaced. Be aware that even a slight turn can cause refrigerant to spray out if the system is pressurized.
Is replacing the caps really necessary?
Yes. The plastic caps are your first line of defense against dirt and moisture entering the valve and causing a leak. They also act as a secondary seal. Always replace missing or cracked caps.
Is this a DIY job?
Only for advanced DIYers who own A/C service equipment (manifold gauges, vacuum pump, recovery machine). While physically unscrewing the old valve and inserting a new one is easy, the full, correct procedure of evacuating and recharging the system is not. For most owners, this is a job for a qualified mechanic.
How much should this repair cost at a shop?
The part itself is very inexpensive ($8-$24). The majority of the cost is labor for the A/C service. Expect to pay between $150 and $350 for a professional to evacuate the system, replace the valves, and perform a vacuum and recharge.
Technical Specifications
Compatible Refrigerant: R134a
