Lexus LS430 (2001-2006) Engine Timing Belt & Water Pump Kit Guide
Don't risk your engine. Choosing the right timing belt kit for your LS430 is critical maintenance.
- The LS430 has an interference engine; a broken timing belt will cause catastrophic engine failure.
- Replace the timing belt, water pump, tensioner, and idlers every 90,000 miles or 9 years.
- The Aisin TKT-021 kit is considered the OEM-equivalent gold standard by owners and mechanics.
- This is a labor-intensive job; saving a small amount on a budget kit is not worth the risk to the engine.
The Most Important Maintenance Job on Your LS430
The 2001-2006 Lexus LS430 runs on the robust 3UZ-FE V8 engine, but it has one major vulnerability: the timing belt. Unlike a timing chain, a belt is a wear-and-tear item made of rubber composite that degrades over time. Lexus specifies a replacement interval of 90,000 miles or 9 years, whichever comes first. Adhering to this schedule is not a suggestion; it's essential to prevent catastrophic engine failure. Because the engine is an "interference" design, a snapped belt means the pistons will collide with the valves, effectively destroying the engine.
Choosing the Right Aftermarket Timing Belt Kit
When it's time for a replacement, you must replace the entire system, not just the belt. A complete kit should include the timing belt, water pump, hydraulic tensioner, and idler pulleys. The quality of these components is paramount. While OEM parts from a Lexus dealer are a benchmark for quality, several aftermarket brands offer excellent, and sometimes identical, parts for less money.
Brand Quality Tiers for Your Lexus LS430
Not all aftermarket kits are created equal. For a component this critical, quality should be the primary deciding factor over price.
- Tier 1: OEM Equivalent (Aisin)
Aisin is widely known to be the original equipment manufacturer (OEM) for Toyota and Lexus on these components. An Aisin kit (model TKT-021 for the LS430) is considered the gold standard by enthusiasts and mechanics. It typically includes an OEM-spec Mitsuboshi belt, an Aisin water pump, and Koyo/NTN bearings, which are the same parts Lexus would install. Choosing an Aisin kit is the safest way to get OEM quality without the dealership price tag. - Tier 2: Reputable Aftermarket (Gates, Continental)
Gates and Continental are well-respected brands in the aftermarket world. Many owners have used their kits successfully for the full service interval. These kits are a reliable alternative if an Aisin kit is unavailable, but it's crucial to verify the components. Some kits may bundle a quality belt with a lower-quality, Chinese-made water pump or tensioner. Always try to get a kit with a Japanese-made water pump (like Aisin). - Tier 3: Budget-Focused (GMB, US Motor Works)
GMB is a known manufacturer of bearings and water pumps, and they supply some automakers. US Motor Works positions its kits as complete, OE-compliant solutions. However, kits from these brands are generally considered a step down from Aisin or Gates for this specific, high-stakes application. While they may perform adequately, the consensus among LS430 owners on forums strongly favors the peace of mind that comes with an Aisin kit. Using a budget kit can be a gamble, as failures of pulleys or tensioners can be just as destructive as a belt snap.
Known Issues, TSBs, and Recalls
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA related to timing belt failure on the 2001-2006 LS430, as it is a standard maintenance item. The primary "issue" is simply the catastrophic result of not replacing the belt within the recommended service interval. Some owners report hearing a ticking or squealing noise from the timing belt area, which could indicate a failing water pump pulley or a loose tensioner, and should be investigated immediately.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Kit (Dealer Parts) | $630 - $735 |
| New Aftermarket Kit (Tier 1 - Aisin) | $170 - $250 |
| New Aftermarket Kit (Tier 2/3) | $150 - $300 |
| Shop Labor | $600 - $1,300 |
| Total Professional Job (Aftermarket) | $800 - $1,750 |
| Total Professional Job (Dealer) | $1,229 - $2,300 |
Frequently Asked Questions (FAQ)
How often does the LS430 timing belt need to be replaced?
The factory-recommended interval is every 90,000 miles or 9 years, whichever occurs first. For vehicles operated in harsh conditions, some mechanics recommend a shorter interval.
What happens if the timing belt breaks on my LS430?
Because the LS430 has an interference engine, a broken timing belt will cause the pistons to strike the valves. This results in catastrophic, expensive engine damage that usually requires a full engine replacement.
Should I replace any other parts at the same time?
Yes. A complete timing belt job should always include a new water pump, hydraulic tensioner, and both idler pulleys. These are all included in a quality kit. It is also a good time to inspect and potentially replace the serpentine drive belt, thermostat, and camshaft/crankshaft seals if they show any signs of leaking.
Can I do this job myself?
This is a complex job that takes 4-6 hours and requires specific tools and mechanical experience. Mistakes during installation, such as incorrect timing alignment, can destroy the engine just as easily as a snapped belt. While DIY is feasible for an experienced home mechanic, it is recommended for a professional shop that is familiar with Toyota/Lexus V8s.

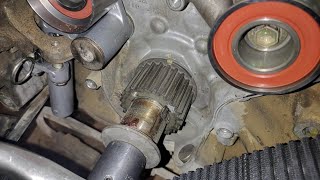

🎬 Watch this step-by-step walkthrough of the timing belt replacement process.Helpful Videos
Technical Specifications
OEM Part Numbers: 16100-09201 13568-59095 13505-50030 13503-50011 13540-50030
Belt Teeth: 211, Belt Width: 34mm
