A Guide to the 2001-2006 Mazda Tribute Parking Brake Cable
Is your parking brake handle pulling up too high or not holding the car? Here’s what you need to know.
- Always check and adjust the rear brake shoes before adjusting or replacing the parking brake cable.
- Corrosion is the number one enemy; cables can seize, especially in regions with road salt.
- Aftermarket cables from brands like Dorman and Raybestos are budget-friendly but may have fitment issues; compare them to the old part before installation.
- A serious recall exists for the ABS module on 2001-2004 models that can cause a fire; verify this has been fixed on your vehicle.
Is Your Parking Brake Not Working? Common Symptoms
For the 2001-2006 Mazda Tribute, which shares its platform with the Ford Escape, parking brake cable issues are common as the vehicle ages. The most frequent cause of failure is the cable seizing from rust or stretching over time. Vehicles in areas where road salt is used are especially prone to corrosion issues.
- Loose or High-Travel Handle: The most common symptom is a parking brake handle that pulls all the way up with little resistance and fails to hold the vehicle, especially on an incline. This often means the cable has stretched or the rear brakes are out of adjustment.
- Brake Won't Release: You might find the parking brake is stuck on. This can be caused by a corroded or frozen cable that won't slide back into its released position. Driving with a stuck parking brake can cause extreme heat, a burning smell, and damage to your rear brakes.
- Grinding or Gaps in Engagement: You may feel a gritty or grinding sensation when pulling the lever, or it may feel like it catches in some spots and is loose in others. This points to a frayed or binding cable.
- Groaning Noise: Some owners report a groaning noise from the rear of the vehicle when getting out, which can be related to the parking brake components.
Important Vehicle Safety Information: ABS Module Recall
While there are no specific recalls for the parking brake cable on the 2001-2006 Tribute, a serious safety recall exists for the Anti-Lock Brake System (ABS) module on 2001-2004 models. The module connector seal can fail, allowing moisture to cause an electrical short, which can lead to overheating and fire, even when the vehicle is parked and turned off. Mazda and the NHTSA have advised owners to park these vehicles outdoors until the recall service is performed. It is critical to ensure this recall has been completed on your vehicle.
Choosing the Right Aftermarket Parking Brake Cable
When replacing the parking brake cable, you don't need to go to the dealer. Aftermarket brands like Dorman and Raybestos offer direct-fit replacements. However, quality can be inconsistent.
Pro Tip: Before starting the installation, compare the new aftermarket cable to the old one you removed. Check that the length, mounting points, and end fittings are identical. This simple step can save you from having to do the job twice.
Brand Quality: Dorman vs. Raybestos
Both Dorman and Raybestos are well-known aftermarket suppliers. For a part like a parking brake cable, they provide a cost-effective alternative to expensive OEM parts.
- Dorman: Dorman is known for making a vast array of replacement parts, sometimes with design improvements over the original. However, forum discussions from mechanics and DIYers show that quality can be "hit or miss." Some have experienced perfect fitment, while others report issues with incorrect lengths or fittings.
- Raybestos: Raybestos is a highly respected name in braking systems. While their brake pads and rotors are top-tier, their cables are sometimes viewed as being of lesser quality than their main product lines. Some users have reported Raybestos cables being less heavy-duty than the original OEM part.
For the Tribute, either brand is a workable choice if you're on a budget. The key is to inspect the part upon arrival and understand that minor adjustments might be necessary. Given the low cost of the part, many owners find the trade-off acceptable compared to the high price of an OEM cable.
Parking Brake Cable Replacement Cost
The total cost depends on whether you do the job yourself or take it to a shop. The parts themselves are not expensive. The 2001-2006 Tribute uses three cables: one front and two rear (left and right).
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Cable (Each) | $36.14 - $76.44 |
| Shop Labor | $159 - $233 |
| Total Professional Replacement | $256 - $330 (for one cable) |
Frequently Asked Questions (FAQ)
Do I need to replace all three cables at once?
Not necessarily. Often, only one of the rear cables has seized or snapped. However, if one has failed due to age and corrosion, the others are likely in similar condition. If you are already doing the labor, it is often wise to replace the rear pair at the same time.
Can I just adjust the cable to make it tighter?
Yes, there is an adjustment nut at the base of the parking brake lever, accessible by removing the center console trim. 🎬 Watch how to access and replace the front brake cable. However, this should only be done after confirming the rear brake shoes are properly adjusted. If the shoes are worn or the self-adjusters aren't working, tightening the cable is just a temporary fix that won't solve the root problem.
Is replacing the parking brake cable a DIY job?

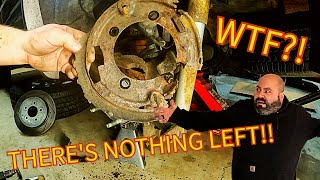

For an experienced DIY mechanic, yes. 🎬 Watch this step-by-step walkthrough of the cable replacement process. The job requires safely lifting and supporting the vehicle, removing the rear wheels and brake drums, and working under the car to route the new cables. It can be a dirty job, and dealing with rusted bolts and brake hardware can be frustrating. Special brake tools, like spring pliers, can make the job much easier.
Should I replace my brake shoes and drums at the same time?
Since you will have the rear brakes completely disassembled to access the cable connection point, it is the perfect time to inspect your brake shoes, drums, and all related hardware. If they are near the end of their service life, replacing them at the same time as the cable will save you from having to take everything apart again in the near future.
🎬 See how to properly service the rear drums and shoes.Helpful Videos
Technical Specifications
The parking brake system on the 2001-2006 Mazda Tribute consists of three separate cables: one front cable connected to the hand lever, and two rear cables (left and right) that attach to the rear drum brake assemblies.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
