Toyota Highlander Engine Coolant Bypass Hose: 2001-2006 Replacement Guide
Tackling the hidden coolant hose under your V6 engine's intake manifold.
- This hose is located under the intake manifold, making replacement a very labor-intensive and costly job.
- A leak from this hose can be hard to diagnose, often appearing as a drip from the rear of the engine.
- Due to the high labor cost, it is wise to replace other nearby parts like valve cover gaskets and knock sensors at the same time.
- Gates is a trusted aftermarket brand that offers an OEM-quality alternative for this part.
Symptoms of a Failing Bypass Hose
Because this hose is buried deep in the engine valley, a leak can be tricky to diagnose. The symptoms often mimic other cooling system failures. Look for these signs:
- Coolant Puddles: You might find pink or red coolant on the ground. Because of the hose's location, the coolant often drips down the back of the engine and onto the transmission bell housing, making it seem like a rear engine or transmission leak.
- Sweet Smell: The distinct, sweet smell of engine coolant is a sure sign of a leak. You may notice it around the vehicle after it has been running.

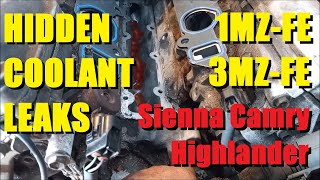

- Low Coolant Level: You may need to frequently top off the coolant reservoir. A slow leak from this hose can be a cause of unexplained coolant loss. 🎬 Watch: How to find this hidden engine valley coolant leak.
- Engine Overheating: A significant leak will cause a loss of coolant, leading to the engine temperature gauge climbing into the red. This is a critical warning to stop the engine immediately to prevent severe damage.
This is a Difficult Repair
Replacing this hose is not a simple task. The entire upper and lower intake manifold must be removed to gain access to the hose. This is a labor-intensive job that requires significant mechanical experience. For most owners, this is not a DIY-friendly repair.
Choosing the Right Aftermarket Part
When you're facing a repair this labor-intensive, the quality of the replacement part is critical. You don't want to do this job twice.
- OEM Toyota Hose: The original Toyota hose (Part No. 16267-20010) is an excellent part, but the majority of the repair cost is in labor, not the part itself.
- Gates (Aftermarket): Gates is a well-respected manufacturer that often supplies parts to vehicle manufacturers. Their molded coolant hoses are made from high-quality EPDM rubber designed to resist heat and electrochemical degradation, which is the primary cause of hose failure. For a part like this, a premium aftermarket brand like Gates is a reliable choice that meets or exceeds OEM specifications and fitment.
"While You're In There" Replacements

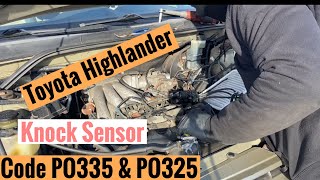

Since the intake manifold will be removed, this is the perfect time to replace other hard-to-reach parts in the engine valley. Consider replacing the valve cover gaskets, knock sensors and their wire harness, 🎬 See this walkthrough for replacing knock sensors while the manifold is off. and any other coolant hoses or vacuum lines in the area. This can save you from a costly future repair.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $19 - $28 |
| New Aftermarket (Gates) | $34.83 |
| Shop Labor | $400 - $750 |
Frequently Asked Questions
Is this the same as a radiator hose?
No. Radiator hoses are the large hoses that connect the engine to the radiator. This is a smaller, specially molded hose located under the intake manifold that serves a different purpose in the cooling system.
Why is the labor cost so high?
The labor cost is high due to the location of the hose. A technician must drain the coolant, 🎬 Watch: How to properly drain and bleed the cooling system. disconnect fuel lines, remove the throttle body, and remove the entire upper and lower intake manifold assembly to access and replace the hose. This process takes several hours.
Are there any recalls for this hose on the 2001-2006 Highlander?
No, there are no specific recalls or technical service bulletins (TSBs) from Toyota or the NHTSA for the engine coolant bypass hose on the 2001-2006 Toyota Highlander.
Can I use a universal hose instead of a molded one?
No. This hose has specific bends and shapes to fit in a very tight space without kinking. A universal straight hose will not work and will likely collapse, blocking coolant flow and causing the engine to overheat. You must use a molded hose designed for your vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16267-20010 162670A010
Molded EPDM rubber construction.
